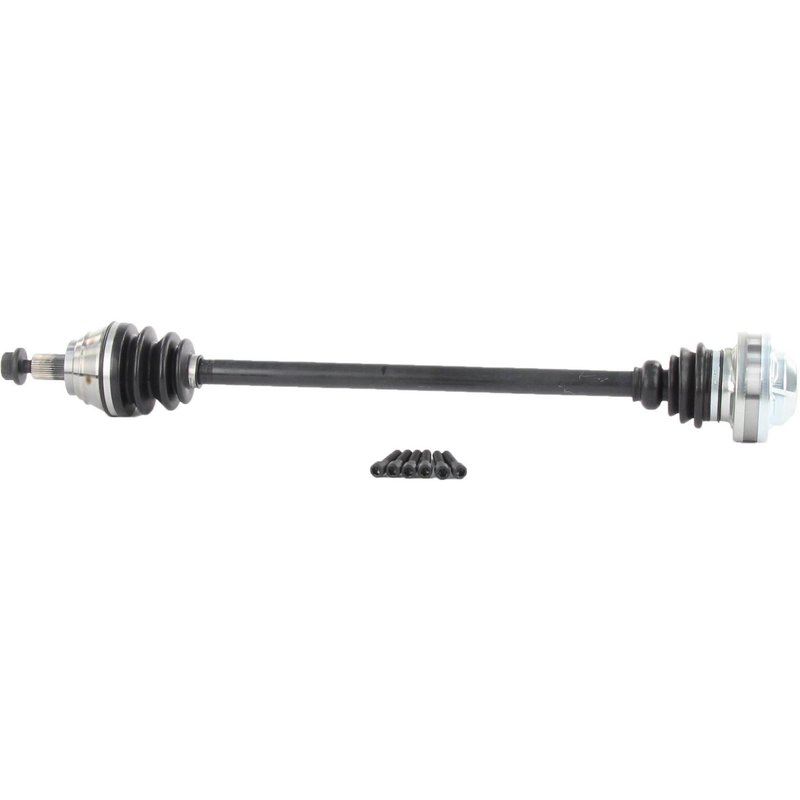

TrakMotive AD-8128 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-8128 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/6 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 30.93 |
| Overall Compressed Length (mm) | 785.5 |
| Product line | CV Axle Shaft |
| Fits | Audi and Volkswagen · 43 vehicles |
Bolt-on design. Simplifies installation with a direct-fit shaft connection.
Neoprene boot. Helps protect the joint from dirt and moisture.
ISO certified. Built by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone New 66-7347, GKN Löbro 304769 and TrakMotive AD-8128 for the same application. See all 18.
CV Axle Shaft for Audi and Volkswagen
TrakMotive AD-8128 is a new front right CV axle shaft for select Audi A3 and Volkswagen applications. It is built with a neoprene boot, a bolt-on inboard joint, and an Audi-style spline bolt outboard connection for direct driveline service on covered vehicles.
Key Features
- TrakMotive CV Axle Shaft, part number AD-8128
- Front right position for select Audi A3, Volkswagen Eos, Golf, GTI, CC, and Jetta applications
- New axle assembly with 36 outboard splines
- Neoprene boot material for driveline protection
- Bolt-on inboard joint and bolt-on inboard shaft connection
- Outboard joint uses an Audi-style spline bolt connection
- Overall compressed length: 30.93 in. (785.5 mm)
- ABS tone ring not included
- Axle nut not included
Product Details
AD-8128 is a TrakMotive CV axle shaft engineered for front right driveline replacement on Audi A3 and Volkswagen models listed in the fitment data. The axle uses a 27 mm axle bolt hex size, M16 x 1.5 axle bolt thread, and a 97 mm axle bolt length. The inboard side features a 6-bolt bolt-on joint with 8 mm Allen head bolts, M10 x 1.5 thread, and 55 mm bolt length. TrakMotive positions this axle shaft within its CV Axle Shaft product line for service work that requires a direct-fit replacement on the specified vehicles. This part cross-references Cardone New 66-7347 for the same application.
Vehicle Fitment
- Fits 2015-2016 Audi A3, front right.
- Fits 2006-2013 Audi A3, front right.
- Fits 2007-2016 Volkswagen Eos, front right.
- Fits 2012-2014 Volkswagen Golf, front right.
- Fits 2006-2014 Volkswagen GTI, front right.
- Fits 2010-2011 Volkswagen Golf, front right, exc. City.
- Fits 2009-2010 Volkswagen CC, front right.
- Fits 2009-2010 Volkswagen Jetta, front right.
- Fits 2005 Volkswagen Jetta, front right.
Common Replacement Uses
- Front right axle shaft replacement for worn or noisy driveline components
- Service for clicking or popping during turns on Audi A3 and Volkswagen front-drive platforms
- Replacement for damaged axle boots or grease loss at the CV joint
- Correction for vibration or shudder related to axle wear
- Restoration of driveline engagement after axle spline or joint damage
Installation Notes
Verify axle length, spline count, bolt pattern, and position before installation. Confirm the vehicle uses the listed front right application and compare the existing axle bolt and inboard joint specifications to the replacement part. ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Professional installation and final torque checks are recommended for proper driveline service.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement part in an ISO 9001:1007 and TS 16949:2009 certified facility. AD-8128 is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Body Type | # Doors | Drive Type | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2016 | Audi | A3 | Komfort | — | — | — | — | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2016 | Volkswagen | Eos | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2015 | Audi | A3 | — | — | — | — | — | 1.8L | L4 | — | Front Right | CV Axle Shaft |
| 2015 | Volkswagen | Eos | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2014 | Volkswagen | Eos | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2014 | Volkswagen | Golf | — | Hatchback | — | — | Automatic | — | — | GAS | Front Right | CV Axle Shaft |
| 2014 | Volkswagen | GTI | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2013 | Audi | A3 | — | — | — | FWD | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2013 | Volkswagen | Eos | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2013 | Volkswagen | Golf | — | Hatchback | — | — | Automatic | — | — | GAS | Front Right | CV Axle Shaft |
| 2013 | Volkswagen | GTI | — | — | 4 Door | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2012 | Audi | A3 | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | GAS | Front Right | CV Axle Shaft |
| 2012 | Audi | A3 | — | — | — | FWD | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2012 | Volkswagen | Eos | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2012 | Volkswagen | Golf | — | Hatchback | — | — | Automatic | — | — | GAS | Front Right | CV Axle Shaft |
| 2012 | Volkswagen | GTI | — | — | 4 Door | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2011 | Audi | A3 | — | — | — | FWD | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2011 | Volkswagen | Eos | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2011 | Volkswagen | Golf | — | Hatchback | — | — | Automatic | — | — | GAS | Front Right | Exc. City; CV Axle Shaft |
| 2011 | Volkswagen | GTI | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2010 | Audi | A3 | — | — | — | FWD | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2010 | Volkswagen | CC | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2010 | Volkswagen | Eos | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2010 | Volkswagen | Golf | — | Hatchback | — | — | Automatic | — | — | GAS | Front Right | Exc. City; CV Axle Shaft |
| 2010 | Volkswagen | GTI | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2010 | Volkswagen | Jetta | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | GAS | Front Right | CV Axle Shaft |
| 2009 | Audi | A3 | — | — | — | FWD | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2009 | Volkswagen | CC | — | — | — | FWD | Automatic | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2009 | Volkswagen | Eos | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2009 | Volkswagen | GTI | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2009 | Volkswagen | Jetta | — | Wagon | — | — | Automatic Dual Clutch | 2.0L | L4 | GAS | Front Right | CV Axle Shaft |
| 2008 | Audi | A3 | — | — | — | FWD | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2008 | Volkswagen | Eos | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2008 | Volkswagen | GTI | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2007 | Audi | A3 | — | — | — | — | Automatic | 2.0L | L4 | GAS | Front Right | CV Axle Shaft |
| 2007 | Audi | A3 | — | — | — | FWD | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2007 | Volkswagen | Eos | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2007 | Volkswagen | GTI | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2006 | Audi | A3 | — | — | — | FWD | Automatic | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2006 | Audi | A3 | — | — | — | FWD | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2006 | Volkswagen | GTI | — | — | — | — | Automatic Dual Clutch | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2005 | Volkswagen | Jetta | GLS | Wagon | — | — | Automatic | 2.0L | L4 | — | Front Right | CV Axle Shaft |
| 2005 | Volkswagen | Jetta | — | Sedan | — | — | Automatic | 2.0L | L4 | — | Front Right | CV Axle Shaft |
