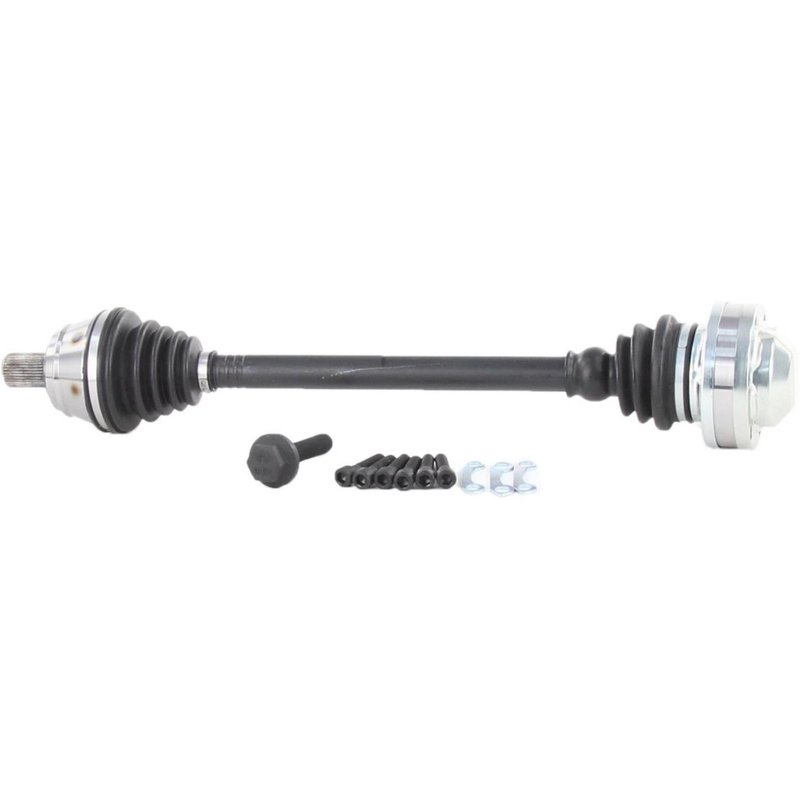

TrakMotive AD-8143 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-8143 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 97 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/6 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.17 |
| Overall Compressed Length (mm) | 614 |
| Product line | CV Axle Shaft |
| Fits | Audi · 6 vehicles |
Bolt-on design. Simplifies installation with direct shaft connections.
Neoprene boot. Helps protect the joint from dirt and moisture.
ISO certified. Built by a company certified to ISO 9001 and TS 16949.
Cross-references TrakMotive AD-8143, 8N0407272E and 8N0407452X for the same application. See all 8.
CV Axle Shaft for Audi TT Quattro and VW R32
TrakMotive AD-8143 is a new front right CV axle shaft built for specific Audi and Volkswagen applications. It is engineered with a bolt-on inboard joint, a spline-style outboard connection, and a neoprene boot for service-focused driveline replacement.
Key Features
- New CV axle shaft for front right applications
- Overall compressed length: 24.17 in. (614 mm)
- Outboard joint type: Audi-style spline bolt
- Outboard splines: 36
- Inboard joint type: bolt-on with 6 inboard joint bolt holes
- Inboard shaft connection style: bolt-on
- Boot material: neoprene
- Axle bolt thread size: M16 x 1.5
- Axle bolt hex size: 27 mm
- No ABS tone ring included
Product Details
TrakMotive CV Axle Shaft AD-8143 is part of the brand’s CV Axle Shaft line, focused on direct driveline replacement for import vehicles. This axle is specified for the front right position on 2002 Audi TT Quattro with 18 in. wheels, 2003-2006 Audi TT Quattro, and 2004 Volkswagen R32. It also cross-references Monroe Shocks & Struts 172286 for the same application.
Built as a new replacement axle, AD-8143 uses a bolt-on inboard joint and an Audi-style spline bolt outboard connection to match the listed driveline configuration. The neoprene boot and 36-spline outboard design support a precise fit for the Audi TT Quattro and Volkswagen R32 front right axle location.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated CV boot
- Clunking or looseness in the front driveline
- Failure of the original front right axle on listed Audi and Volkswagen models
Installation Notes
Verify the vehicle’s front right application, wheel size note, and axle connection style before installation. Confirm axle bolt thread size, hex size, and overall compressed length against the original part to ensure proper fitment on the Audi TT Quattro or Volkswagen R32.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, and that ABS axles fit non-ABS applications unless otherwise noted.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Audi | TT Quattro | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2005 | Audi | TT Quattro | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2004 | Audi | TT Quattro | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2004 | Volkswagen | R32 | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2003 | Audi | TT Quattro | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2002 | Audi | TT Quattro | — | — | Front Right | w/ 18 in. Wheels; CV Axle Shaft |
