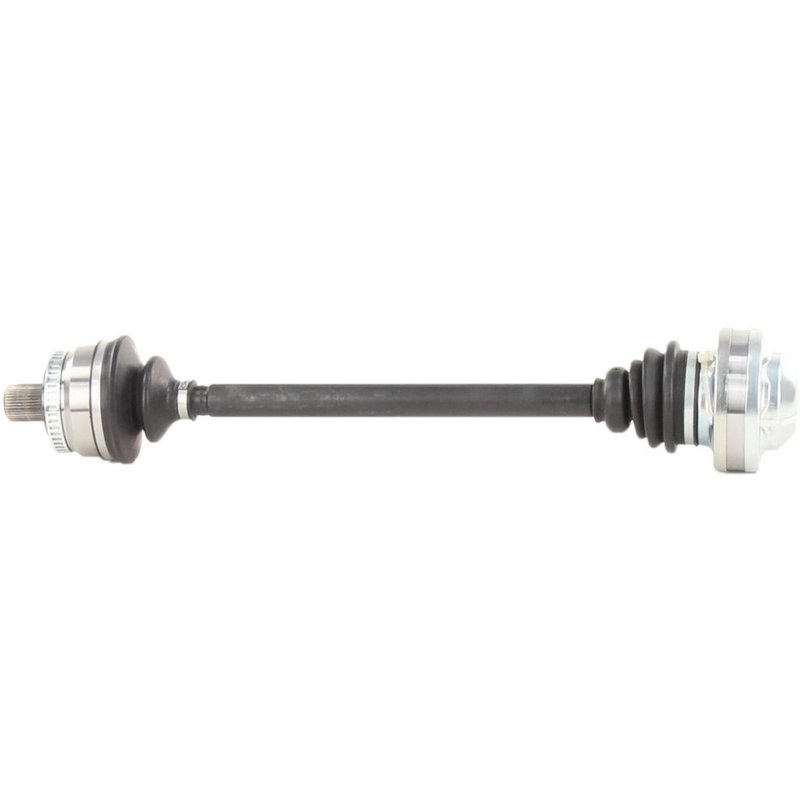

TrakMotive AD-8144 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive AD-8144 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 45 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 24.25 |
| Overall Compressed Length (mm) | 616 |
| Product line | CV Axle Shaft |
| Fits | Audi · 38 vehicles |
New axle shaft. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps resist wear while keeping the joint protected.
Bolt-on connections. Simplifies installation at both ends.
Cross-references Cardone Reman 60-7380, TrakMotive AD-8144 and 8E0501203K for the same application. See all 8.
TrakMotive AD-8144 CV Axle Shaft
The TrakMotive AD-8144 is a new rear CV axle shaft for select Audi applications, built for direct replacement service on Audi A4 Quattro and Audi S4 models. It features a neoprene boot, a bolt-on inboard joint, and an Audi-style spline bolt outboard connection for the specified rear positions.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8144
- New axle shaft, not remanufactured
- Fits rear right and rear left applications listed below
- Neoprene boot material
- Inboard joint type: bolt-on
- Outboard joint type: Audi-style spline bolt
- 38 outboard splines
- 45-tooth ABS ring with window-style tone ring included
- Overall compressed length: 24.25 in. (616 mm)
- Axle nut not included
Product Details
TrakMotive CV Axle Shaft AD-8144 is engineered for rear driveline service on Audi A4 Quattro and Audi S4 models with the listed fitment. The axle uses a bolt-on inboard shaft connection and an Audi-style spline bolt outboard connection, along with a 45-tooth ABS ring and included tone ring for the specified ABS-equipped applications. TrakMotive positions this CV axle shaft line as a direct replacement solution for driveline repair where OE-style dimensions and connection styles matter.
This part cross-references Cardone Reman 60-7380 for the same application.
Vehicle Fitment
- Fits 2003-2009 Audi A4 Quattro, rear right.
- Fits 2003-2009 Audi A4 Quattro, rear left.
- Fits 2004-2009 Audi S4, rear right.
- Fits 2004-2009 Audi S4, rear left.
- Fits 2003-2005 Audi A4 Quattro, rear right, from VIN 134001.
- Fits 2003-2005 Audi A4 Quattro, rear left, from VIN 134001.
- Fits 2002 Audi A4 Quattro, rear right, VIN E (8th digit).
- Fits 2002 Audi A4 Quattro, rear left, VIN E (8th digit).
What This Part Helps Address
- Clicking or popping during acceleration or turning from a worn CV joint
- Vibration from a damaged or out-of-balance rear axle shaft
- Boot cracking or grease loss at the CV joint area
- ABS warning concerns related to a failed tone ring or sensor signal path
- Driveline noise caused by wear in the rear axle assembly
Installation Notes
Confirm rear position, VIN breakpoints, spline count, and ABS configuration before ordering. This axle is listed for rear right and rear left applications on Audi A4 Quattro and Audi S4 models, and ABS axles fit non-ABS applications unless otherwise noted by the catalog data. Verify the axle nut requirement separately, since the axle nut is not included.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certification. The manufacturer also states a limited lifetime warranty for this part line.
| Year | Make | Model | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2009 | Audi | A4 Quattro | Convertible | — | — | — | — | Rear Right | CV Axle Shaft |
| 2009 | Audi | A4 Quattro | Convertible | — | — | — | — | Rear Left | CV Axle Shaft |
| 2009 | Audi | S4 | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 2009 | Audi | S4 | — | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 2008 | Audi | A4 Quattro | Convertible | — | — | — | — | Rear Right | CV Axle Shaft |
| 2008 | Audi | A4 Quattro | Convertible | — | — | — | — | Rear Left | CV Axle Shaft |
| 2008 | Audi | S4 | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 2008 | Audi | S4 | — | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 2007 | Audi | A4 Quattro | Convertible | — | — | — | — | Rear Right | CV Axle Shaft |
| 2007 | Audi | A4 Quattro | Convertible | — | — | — | — | Rear Left | CV Axle Shaft |
| 2007 | Audi | S4 | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 2007 | Audi | S4 | — | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 2006 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | Rear Right | CV Axle Shaft |
| 2006 | Audi | A4 Quattro | Convertible | — | — | 3.0L | V6 | Rear Left | CV Axle Shaft |
| 2006 | Audi | A4 Quattro | — | — | — | 2.0L | L4 | Rear Right | CV Axle Shaft |
| 2006 | Audi | A4 Quattro | — | AWD | — | 2.0L | L4 | Rear Left | CV Axle Shaft |
| 2006 | Audi | S4 | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 2006 | Audi | S4 | — | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 2005 | Audi | A4 Quattro | Wagon | — | — | 3.0L | V6 | Rear Right | CV Axle Shaft |
| 2005 | Audi | A4 Quattro | Wagon | — | — | 3.0L | V6 | Rear Left | CV Axle Shaft |
| 2005 | Audi | A4 Quattro | — | — | — | 2.0L | L4 | Rear Right | CV Axle Shaft |
| 2005 | Audi | A4 Quattro | — | — | — | 2.0L | L4 | Rear Left | CV Axle Shaft |
| 2005 | Audi | A4 Quattro | Wagon | — | — | 1.8L | L4 | Rear Right | From VIN 134001; CV Axle Shaft |
| 2005 | Audi | A4 Quattro | Wagon | — | — | 1.8L | L4 | Rear Left | From VIN 134001; CV Axle Shaft |
| 2005 | Audi | S4 | — | — | — | — | — | Rear Right | CV Axle Shaft |
| 2005 | Audi | S4 | — | — | — | — | — | Rear Left | CV Axle Shaft |
| 2004 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | Rear Right | CV Axle Shaft |
| 2004 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | Rear Left | CV Axle Shaft |
| 2004 | Audi | A4 Quattro | — | — | — | 1.8L | L4 | Rear Right | From VIN 134001; CV Axle Shaft |
| 2004 | Audi | A4 Quattro | — | — | — | 1.8L | L4 | Rear Left | From VIN 134001; CV Axle Shaft |
| 2004 | Audi | S4 | — | — | — | — | — | Rear Right | CV Axle Shaft |
| 2004 | Audi | S4 | — | — | — | — | — | Rear Left | CV Axle Shaft |
| 2003 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | Rear Right | CV Axle Shaft |
| 2003 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | Rear Left | CV Axle Shaft |
| 2003 | Audi | A4 Quattro | — | — | — | 1.8L | L4 | Rear Right | From VIN 134001; CV Axle Shaft |
| 2003 | Audi | A4 Quattro | — | — | — | 1.8L | L4 | Rear Left | From VIN 134001; CV Axle Shaft |
| 2002 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | Rear Right | VIN E (8th Digit); CV Axle Shaft |
| 2002 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | Rear Left | VIN E (8th Digit); CV Axle Shaft |
