TrakMotive AD-8146 CV Axle Shaft - Front Left or Front RightOE Quality 60-Day Returns
Part #: AD-8146

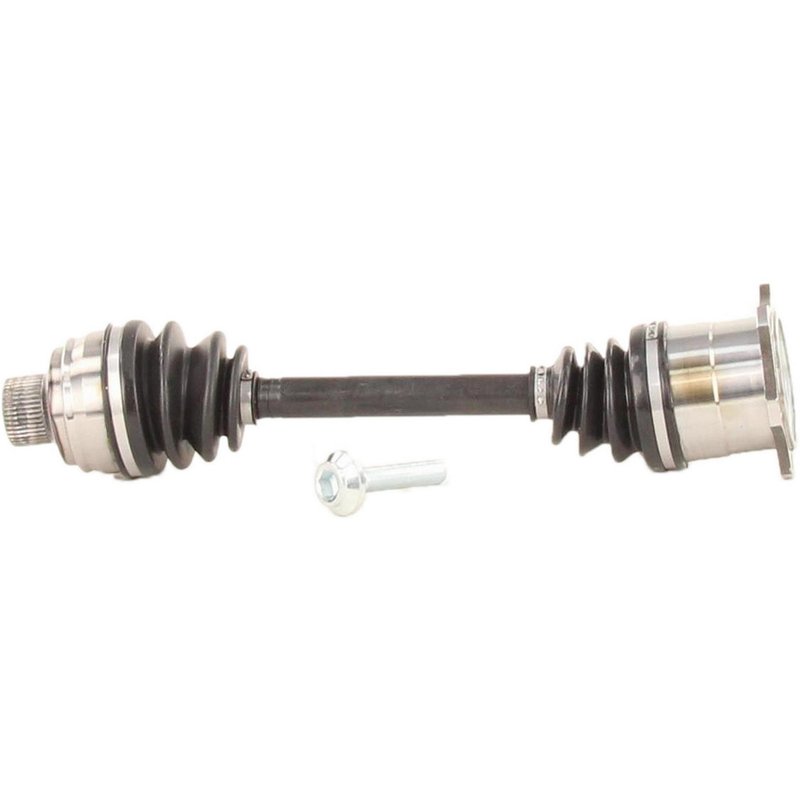

TrakMotive AD-8146 CV Axle Shaft - Front Left or Front Right

CV Axle Shaft, Front Left
72 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$151.40Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Front Left
Fitment: Audi, S5, A4, S4, RS5, and A5
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options

TrakMotive CV Axle Shaft for Audi Front Applications

TrakMotive AD-8146 is a new CV axle shaft for select Audi front-drive applications, including Audi A4, A5, S4, S5, and RS5 models. It is built with application-specific joint styles and dimensions to support direct replacement on the front left or front right side where listed.

Key Features

  • New CV axle shaft from TrakMotive
  • Part number: AD-8146
  • Front left and front right fitment across listed Audi applications
  • Inboard flange connection style
  • Outboard Audi-style spline bolt connection
  • 42 outboard splines
  • Neoprene boot material
  • Overall compressed length: 461 mm (18.15 in.)
  • Axle bolt thread size: M16 x 1.5
  • Axle bolt hex size: 17 mm
  • ABS tone ring not included

Product Details

TrakMotive CV Axle Shaft AD-8146 is engineered for front axle service on Audi A4, A5, S4, S5, and RS5 platforms listed in the fitment data. The axle uses a flange-style inboard connection and an Audi-style spline bolt outboard connection, with a 42-spline outboard design and a 461 mm compressed length for the specified applications. This part cross-references Cardone New 66-7350 for the same application.

Compatible with 2010-2017 Audi S5 front right and front left, 2013-2016 Audi A4 front right and front left, 2010-2016 Audi S4 front right and front left, 2013-2015 Audi RS5 front right and front left, 2010-2014 Audi A5 front right and front left, 2010-2012 Audi A4 front right and front left with Standard Suspension (opt 1BA), 2008-2012 Audi S5 front right and front left without Heavy Duty Suspension, and 2009 Audi A4 front right and front left without Sport Suspension.

Common Replacement Uses

  • Replacing a worn or noisy front CV axle on Audi A4, A5, S4, S5, or RS5
  • Addressing clicking or popping during turns
  • Correcting vibration from a damaged axle shaft
  • Restoring driveline function after torn boot or grease loss
  • Replacing a bent or worn axle on the front left or front right side

Installation Notes

Verify axle bolt thread size, hex size, spline count, and compressed length before installation. This axle uses an Audi-style spline bolt outboard connection and a flange-style inboard connection, so confirm the vehicle’s original hardware and suspension configuration against the listed fitment notes. ABS axles fit non-ABS applications unless otherwise noted.

Quality Assurance

TrakMotive identifies this axle as a new component and states that the product line is backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification.

BrandTrakMotive
Part NumberAD-8146
PositionCV Axle Shaft, Front Left
Abs Tone Ring IncludedNo
Axle Bolt Hex Size (mm)17
Axle Bolt Length (mm)90
Axle Bolt Thread SizeM16*1.5
Axle Nut IncludedNo
Boot MaterialNeoprene
Inboard Joint TypeFlange
Inboard Shaft Connection StyleFlange
New Or RemanufacturedNew
Number Of Bolt Holes1
Number Of Outboard Shaft Bolts1
Number Of Outboard Splines42
Outboard Joint TypeAudi Style Spline Bolt
Outboard Shaft Connection StyleAudi Style Spline Bolt
Overall Compressed Length (in)18.15
Overall Compressed Length (mm)461

This part fits 72 vehicles. Search below:

YearMakeModelTransmissionLitersCylindersPositionNotes
2017AudiS5Front RightCV Axle Shaft
2017AudiS5Front LeftCV Axle Shaft
2016AudiA42.0LL4Front RightCV Axle Shaft
2016AudiA42.0LL4Front LeftCV Axle Shaft
2016AudiS4Front RightCV Axle Shaft
2016AudiS4Front LeftCV Axle Shaft
2016AudiS5Front RightCV Axle Shaft
2016AudiS5Front LeftCV Axle Shaft
2015AudiA42.0LL4Front RightCV Axle Shaft
2015AudiA42.0LL4Front LeftCV Axle Shaft
2015AudiRS5Front RightCV Axle Shaft
2015AudiRS5Front LeftCV Axle Shaft
2015AudiS4Front RightCV Axle Shaft
2015AudiS4Front LeftCV Axle Shaft
2015AudiS5Front RightCV Axle Shaft
2015AudiS5Front LeftCV Axle Shaft
2014AudiA42.0LL4Front RightCV Axle Shaft
2014AudiA42.0LL4Front LeftCV Axle Shaft
2014AudiA52.0LL4Front RightCV Axle Shaft
2014AudiA52.0LL4Front LeftCV Axle Shaft
2014AudiRS5Front RightCV Axle Shaft
2014AudiRS5Front LeftCV Axle Shaft
2014AudiS4Front RightCV Axle Shaft
2014AudiS4Front LeftCV Axle Shaft
2014AudiS5Front RightCV Axle Shaft
2014AudiS5Front LeftCV Axle Shaft
2013AudiA42.0LL4Front RightCV Axle Shaft
2013AudiA42.0LL4Front LeftCV Axle Shaft
2013AudiA52.0LL4Front RightCV Axle Shaft
2013AudiA52.0LL4Front LeftCV Axle Shaft
2013AudiRS5Front RightCV Axle Shaft
2013AudiRS5Front LeftCV Axle Shaft
2013AudiS4Front RightCV Axle Shaft
2013AudiS4Front LeftCV Axle Shaft
2013AudiS5Front RightCV Axle Shaft
2013AudiS5Front LeftCV Axle Shaft
2012AudiA42.0LL4Front RightStandard Suspension (opt 1BA); CV Axle Shaft
2012AudiA42.0LL4Front LeftStandard Suspension (opt 1BA); CV Axle Shaft
2012AudiA52.0LL4Front RightCV Axle Shaft
2012AudiA52.0LL4Front LeftCV Axle Shaft
2012AudiS4Front RightCV Axle Shaft
2012AudiS4Front LeftCV Axle Shaft
2012AudiS54.2LV8Front Rightw/o Heavy Duty Suspension; CV Axle Shaft
2012AudiS54.2LV8Front Leftw/o Heavy Duty Suspension; CV Axle Shaft
2012AudiS53.0LV6Front RightCV Axle Shaft
2012AudiS53.0LV6Front LeftCV Axle Shaft
2011AudiA42.0LL4Front RightStandard Suspension (opt 1BA); CV Axle Shaft
2011AudiA42.0LL4Front LeftStandard Suspension (opt 1BA); CV Axle Shaft
2011AudiA52.0LL4Front RightCV Axle Shaft
2011AudiA52.0LL4Front LeftCV Axle Shaft
2011AudiS4Front RightCV Axle Shaft
2011AudiS4Front LeftCV Axle Shaft
2011AudiS54.2LV8Front Rightw/o Heavy Duty Suspension; CV Axle Shaft
2011AudiS54.2LV8Front Leftw/o Heavy Duty Suspension; CV Axle Shaft
2011AudiS53.0LV6Front RightCV Axle Shaft
2011AudiS53.0LV6Front LeftCV Axle Shaft
2010AudiA42.0LL4Front RightStandard Suspension (opt 1BA); CV Axle Shaft
2010AudiA42.0LL4Front LeftStandard Suspension (opt 1BA); CV Axle Shaft
2010AudiA52.0LL4Front RightCV Axle Shaft
2010AudiA52.0LL4Front LeftCV Axle Shaft
2010AudiS4Front RightCV Axle Shaft
2010AudiS4Front LeftCV Axle Shaft
2010AudiS54.2LV8Front Rightw/o Heavy Duty Suspension; CV Axle Shaft
2010AudiS54.2LV8Front Leftw/o Heavy Duty Suspension; CV Axle Shaft
2010AudiS53.0LV6Front RightCV Axle Shaft
2010AudiS53.0LV6Front LeftCV Axle Shaft
2009AudiA4Automatic2.0LL4Front Rightw/o Sport Suspension; CV Axle Shaft
2009AudiA4Automatic2.0LL4Front Leftw/o Sport Suspension; CV Axle Shaft
2009AudiS5Front Rightw/o Heavy Duty Suspension; CV Axle Shaft
2009AudiS5Front Leftw/o Heavy Duty Suspension; CV Axle Shaft
2008AudiS5Front Rightw/o Heavy Duty Suspension; CV Axle Shaft
2008AudiS5Front Leftw/o Heavy Duty Suspension; CV Axle Shaft

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

60-735060-741866-735080-90708K0407271AH8K0407271AJ8K0407271D8K0407271Q8K0407271RAD-8146AD10559AD10560AX-91769NCV511988VW-7176AVW7176A

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
