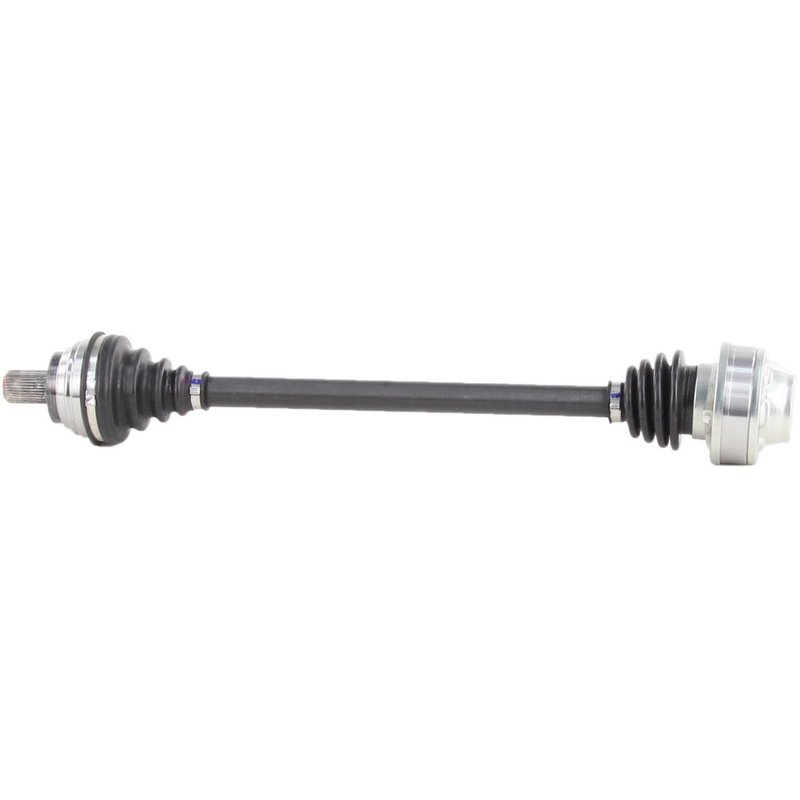

TrakMotive AD-8157 CV Axle Shaft - Rear Right
| Brand | TrakMotive AD-8157 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.96 |
| Overall Compressed Length (mm) | 634 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen and Audi · 28 vehicles |
New CV axle shaft. Fresh replacement part for dependable driveline service.
Neoprene boot material. Helps resist wear while protecting internal components.
Bolt-on connection. Simplifies installation with a secure fit.
Cross-references TrakMotive AD-8157 for the same application. See all 1.
Rear Right CV Axle Shaft for Audi and Volkswagen
TrakMotive AD-8157 is a new rear right CV axle shaft for select Audi and Volkswagen applications. It is built with a neoprene boot, a bolt-on inboard joint, and an Audi-style spline bolt outboard joint for direct replacement service on listed vehicles.
The TrakMotive CV Axle Shaft line focuses on application-specific driveline replacement parts. AD-8157 follows that approach with the correct compressed length, spline count, and joint styles for the listed rear right positions on Audi A3 Quattro, Audi S3, Volkswagen Golf, Golf Alltrack, Golf R, and Golf SportWagen models.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8157
- New axle shaft, not remanufactured
- Neoprene boot material for driveline protection
- Bolt-on inboard shaft connection style
- Audi-style spline bolt outboard joint type
- 36 outboard splines
- Overall compressed length: 24.96 in. (634 mm)
- No ABS tone ring included
- Axle nut not included
Detailed Description
TrakMotive AD-8157 is a rear right CV axle shaft engineered for select 2015-2020 Audi and Volkswagen vehicles. It is listed for Audi A3 Quattro and S3 rear right applications, along with Volkswagen Golf, Golf Alltrack, Golf R, and Golf SportWagen rear right applications. If you are searching for a rear right CV axle shaft for Audi A3 Quattro or a Volkswagen Golf R rear axle replacement, AD-8157 matches the specified fitment and connection style.
This axle uses a bolt-on inboard joint and an Audi-style spline bolt outboard joint, with 36 outboard splines and a 24.96-inch compressed length. The neoprene boot helps protect the joint assembly from road debris and moisture during normal driveline operation. For buyers comparing TrakMotive AD-8157 against other rear axle options, the part number and joint configuration are key identifiers for the correct application.
This part cross-references TrakMotive AD-8157 for the same application.
What This Part Helps Address
- Clicking or popping noises from the rear axle area during acceleration or turning
- Vibration felt through the driveline from a worn CV joint
- Grease leakage from a damaged axle boot
- Rear right axle wear on high-mileage Audi and Volkswagen vehicles
- Loss of smooth power transfer from the differential to the wheel
Installation Notes and Tips
- Verify rear right position, spline count, and compressed length before installation.
- Confirm whether the vehicle is equipped for the listed non-ABS application details; ABS axles fit non-ABS applications unless otherwise noted.
- Inspect mating hubs, seals, and fasteners for wear before installing the new axle shaft.
- Use the vehicle service procedure for torque specifications and axle seating.
- Because the axle nut is not included, confirm the correct retaining hardware for the vehicle before service.
Quality Assurance
TrakMotive lists AD-8157 as a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2020 | Audi | A3 Quattro | — | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Audi | S3 | — | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Audi | A3 Quattro | — | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Audi | S3 | — | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Volkswagen | Golf | — | — | — | — | Rear Right | CV Axle Shaft |
| 2019 | Volkswagen | Golf Alltrack | — | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Volkswagen | Golf R | — | — | — | — | Rear Right | CV Axle Shaft |
| 2019 | Volkswagen | Golf SportWagen | — | — | 1.8L | L4 | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Audi | A3 Quattro | — | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Audi | S3 | — | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Volkswagen | Golf | — | — | — | — | Rear Right | CV Axle Shaft |
| 2018 | Volkswagen | Golf Alltrack | — | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Volkswagen | Golf R | — | — | — | — | Rear Right | CV Axle Shaft |
| 2018 | Volkswagen | Golf SportWagen | — | — | 1.8L | L4 | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Audi | A3 Quattro | — | — | — | — | Rear Right | CV Axle Shaft |
| 2017 | Audi | S3 | — | AWD | 2.0L | L4 | Rear Right | CV Axle Shaft |
| 2017 | Volkswagen | Golf | Wagon | — | — | — | Rear Right | CV Axle Shaft |
| 2017 | Volkswagen | Golf Alltrack | — | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Volkswagen | Golf R | Hatchback | — | — | — | Rear Right | CV Axle Shaft |
| 2017 | Volkswagen | Golf SportWagen | Wagon | — | — | — | Rear Right | CV Axle Shaft |
| 2016 | Audi | A3 Quattro | — | — | — | — | Rear Right | CV Axle Shaft |
| 2016 | Audi | S3 | — | AWD | 2.0L | L4 | Rear Right | CV Axle Shaft |
| 2016 | Volkswagen | Golf | — | — | — | — | Rear Right | CV Axle Shaft |
| 2016 | Volkswagen | Golf R | — | — | — | — | Rear Right | CV Axle Shaft |
| 2015 | Audi | A3 Quattro | — | — | — | — | Rear Right | CV Axle Shaft |
| 2015 | Audi | S3 | — | AWD | 2.0L | L4 | Rear Right | CV Axle Shaft |
| 2015 | Volkswagen | Golf | — | — | — | — | Rear Right | CV Axle Shaft |
| 2015 | Volkswagen | Golf R | — | — | — | — | Rear Right | CV Axle Shaft |
