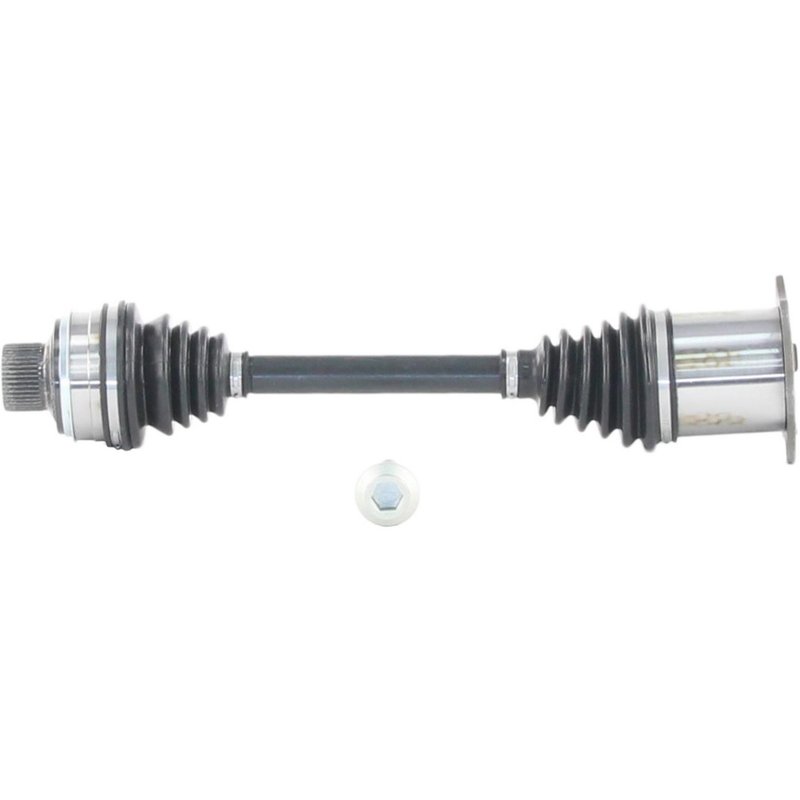

TrakMotive AD-8175 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive AAR CV Axle Shaft AD-8175

The TrakMotive AAR CV Axle Shaft AD-8175 is designed specifically for Audi Q5 models, providing a reliable driveline component engineered for durability and precise fitment. This new CV axle shaft ensures smooth power transfer from the transmission to the wheels, maintaining vehicle performance and handling.

• Compatible with Audi Q5 vehicles
• New, not remanufactured CV axle shaft
• Neoprene boot material for enhanced durability
• Inboard joint features flange type with spline shaft connection
• Outboard joint uses Audi style spline bolt with 42 splines
• Axle bolt specifications: 19mm hex size, 86mm length, M16*1.5 thread size
• Overall compressed length of 489mm (19.25 inches)
• Includes 1 outboard shaft bolt and 6 inboard joint bolt holes

About the AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering precise driveline components tailored for specific vehicle applications. This product line emphasizes new parts with quality materials such as neoprene boots and exact joint configurations to match factory specifications. The AD-8175 model exemplifies this approach by offering a direct replacement axle shaft for Audi Q5 models, ensuring compatibility and reliable performance.

Detailed Product Description

The TrakMotive AD-8175 CV axle shaft is engineered with a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint uses a flange type connection with a spline shaft style, secured by six bolt holes, providing a stable and secure fit. The outboard joint features an Audi style spline bolt with 42 splines, designed to match the original equipment specifications for the Audi Q5. The axle bolts have a 19mm hex size, 86mm length, and M16*1.5 thread size, ensuring proper installation and torque settings. With an overall compressed length of 489mm, this axle shaft fits precisely within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi Q5
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leakage by maintaining boot integrity
• Restores proper driveline function after axle shaft damage

Installation Notes and Tips

• Verify compatibility with Audi Q5 model year before installation
• Use proper torque specifications for axle bolts (M16*1.5 thread, 19mm hex)
• Inspect surrounding components such as wheel bearings and seals during replacement
• Ensure the neoprene boot is properly seated to prevent contamination
• Check spline engagement on both inboard and outboard joints for secure fit

Quality Assurance and Warranty

The TrakMotive AAR CV Axle Shaft AD-8175 is a new part manufactured to meet or exceed OEM standards for fit and function. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and durability in driveline applications. Buyers should consult product documentation or contact the manufacturer for warranty information.
