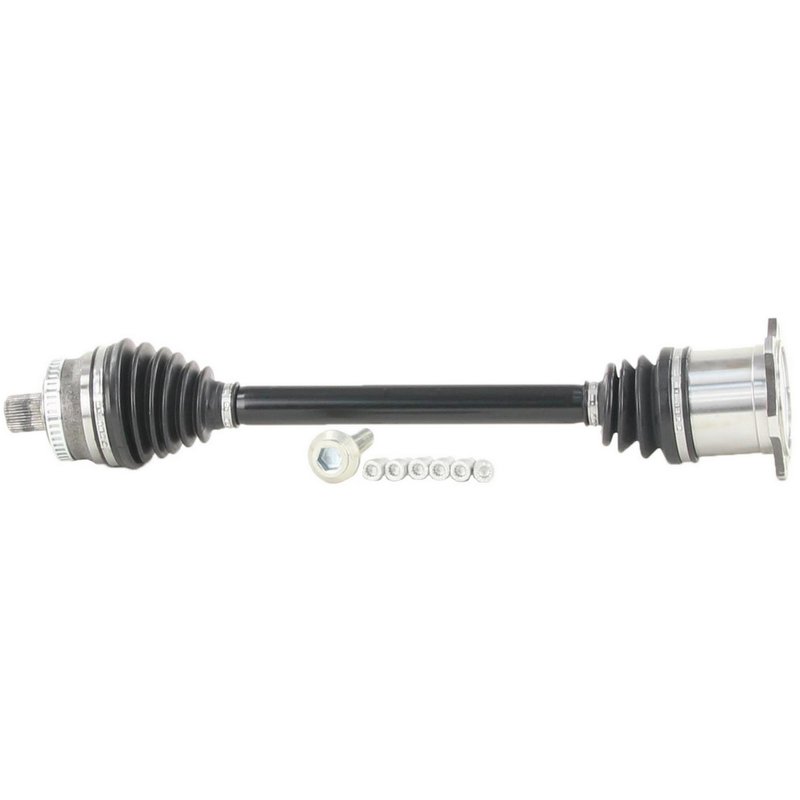

TrakMotive AD-8187 CV Axle Shaft - Front Left
| Brand | TrakMotive AD-8187 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 45 |
| ABS Ring Type | Window |
| ABS Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 85 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Bolt Head Size (in) | .44 |
| Inboard Bolt Head Size (mm) | 12 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 1.19 |
| Inboard Bolt Length (mm) | 30 |
| Inboard Bolt Thread Size | M10x1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.78 |
| Overall Compressed Length (mm) | 579 |
| Overall Extended Length (in) | 24.96 |
| Product line | AAR CV Axle Shaft |
| Fits | Audi · 5 vehicles |
Bolt-on installation. Flange-style inboard connection simplifies replacement.
Neoprene boots. Durable joint protection helps keep contaminants out.
ABS tone ring included. Built for applications that use wheel speed sensing.
Cross-references TrakMotive AD-8187 and 8E0407451TX for the same application. See all 2.
TrakMotive AD-8187 CV Axle Shaft for Audi A4 Quattro
TrakMotive AD-8187 is a front left CV axle shaft for select Audi A4 Quattro applications. It is built to OE AAR design requirements and uses a premium-grade construction with the spline and flange details needed for direct driveline service on the listed vehicles.
Key Features
- Front left CV axle shaft for 2005-2009 Audi A4 Quattro applications listed below
- OE AAR design for the correct driveline layout
- Premium grade construction
- 38 outboard splines and 6-bolt inboard flange connection
- Neoprene boots on the inboard and outboard joints
- ABS tone ring included with 45-tooth window-style ring
- Axle bolt thread size: M16x1.5
- Overall compressed length: 579 mm; overall extended length: 634 mm
Product Details
This TrakMotive AAR CV Axle Shaft is engineered for front left service on the Audi A4 Quattro platform. The AD-8187 uses an Audi-style spline bolt outboard joint, a bolt-on inboard shaft connection, and a 6-bolt flange setup to match the listed OE-style application. TrakMotive identifies this axle as a premium-grade replacement and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices. This part cross-references 8E0407451TX for the same application.
What This Axle Shaft Helps Address
- Clicking or popping from a worn outer CV joint
- Vibration during acceleration from a damaged axle assembly
- Grease leakage from torn CV boots
- Noise or play caused by worn driveline components
- ABS warning concerns when the tone ring or sensor signal is affected
Installation Notes and Fitment
Fits 2006-2009 Audi A4 Quattro, front left. Fits 2005 Audi A4 Quattro, front left, from VIN 400001. Verify spline count, flange style, and axle length against the original part before installation. The axle nut is not included. ABS axles fit non-ABS applications unless otherwise noted.
Quality Assurance
TrakMotive backs this AD-8187 CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2009 | Audi | A4 Quattro | Convertible | AWD | Automatic | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2008 | Audi | A4 Quattro | Wagon | AWD | Automatic | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2007 | Audi | A4 Quattro | Wagon | AWD | Automatic | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2006 | Audi | A4 Quattro | Wagon | AWD | Automatic | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2005 | Audi | A4 Quattro | Wagon | AWD | Automatic | 2.0L | L4 | Front Left | From VIN 400001; AAR CV Axle Shaft |
