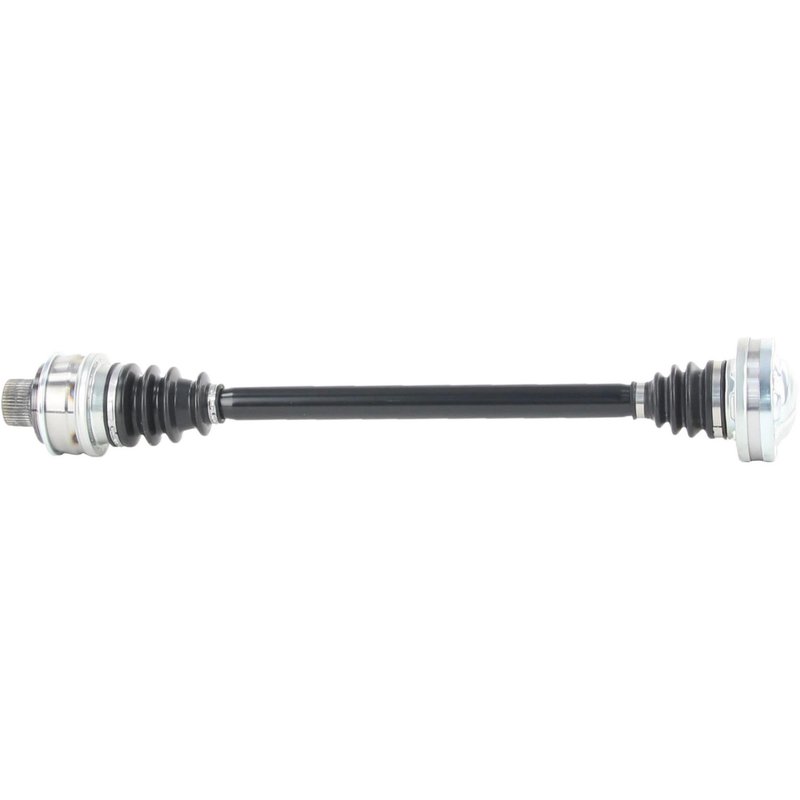

TrakMotive AD-8191 CV Axle Shaft - Rear

Rear CV Axle Shaft for Audi Q7

TrakMotive AD-8191 is a rear CV axle shaft for the 2017-2022 Audi Q7. It is built as an OEM-style axle to help maintain original ride quality on rear driveline applications, with fitment focused on the Audi Q7 rear position.

Key Features

• Rear CV axle shaft for 2017-2022 Audi Q7
• OEM-style axle to retain original ride quality
• Premium grade construction
• Neoprene boot material on both inboard and outboard joints
• Outboard joint uses Audi-style spline bolt design
• 42 outboard splines
• 17 mm axle bolt hex size, M16x1.5 thread, 85 mm bolt length
• ABS tone ring not included; 0 ABS ring tooth count
• Overall compressed length: 26.56 in. (675 mm)
• Overall extended length: 29.39 in. (747 mm)

Detailed Description

TrakMotive CV Axle Shaft AD-8191 is engineered for the rear driveline on the Audi Q7, covering 2017-2022 model years. The axle uses a bolt-on inboard joint and a spline-style outboard connection with an Audi-style spline bolt, matching the OE-style layout needed for this application. TrakMotive positions this CV axle shaft within its CV Axle Shaft line for direct driveline replacement work where maintaining factory ride characteristics matters. This part cross-references OE-style numbers such as 4M0501203D and NCV20002K for the same application.

What It Helps Address

• Clicking or popping noises from a worn rear CV joint
• Vibration during acceleration from a damaged axle shaft
• Grease leakage from torn or deteriorated boots
• Excessive play in the rear driveline
• Loss of smooth power transfer to the rear wheels

Installation Notes and Tips

Verify rear-position fitment before installation on the Audi Q7. Confirm axle bolt size, thread pitch, spline count, and overall length against the removed part before assembly. This axle does not include an axle nut, and ABS tone ring hardware is not included. Because the inboard and outboard joint designs are application-specific, compare the OE axle configuration to the replacement part before final installation.

Quality Assurance

TrakMotive manufactures this axle as a premium-grade replacement from an ISO 9001:2008 and TS 16949:2009 certified company. The AD-8191 is backed by a limited lifetime warranty.
