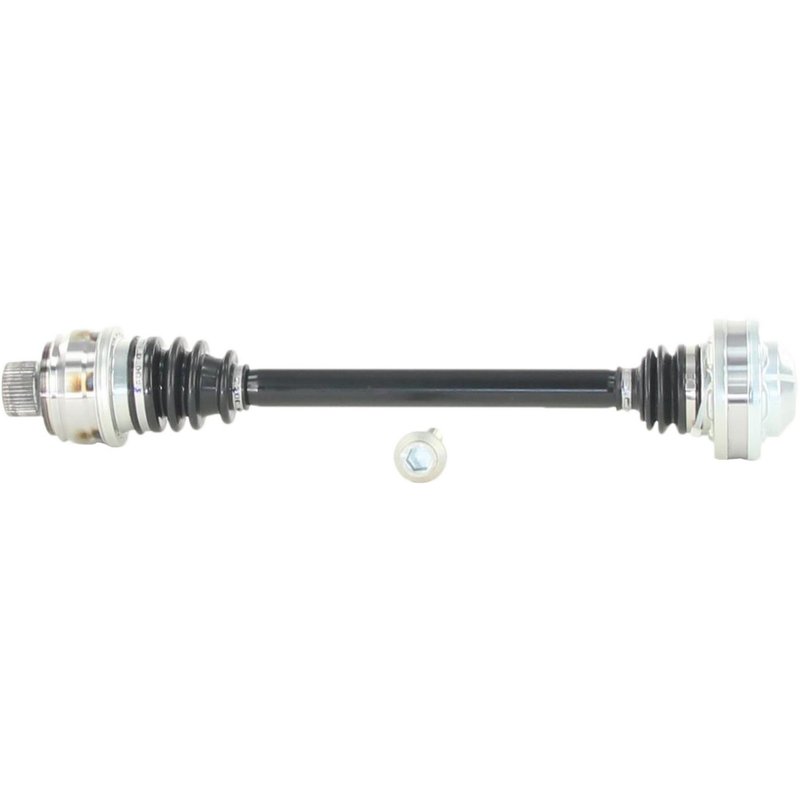

TrakMotive AD-8197 CV Axle Shaft - Rear or Rear Right
| Brand | TrakMotive AD-8197 |
|---|---|
| Position | Rear Right and Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 85 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 42 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.72 |
| Overall Compressed Length (mm) | 577 |
| Overall Extended Length (in) | 25.79 |
| Overall Extended Length (mm) | 655 |
| Product line | CV Axle Shaft |
| Fits | Audi · 40 vehicles |
Bolt-on design. Simplifies installation with a direct-fit CV axle shaft.
Neoprene boots. Help protect the joints from wear and contamination.
Premium grade. Built as a CV axle shaft for dependable driveline service.
Cross-references TrakMotive AD-8197, 8R0501204D and NCV23017 for the same application. See all 4.
Rear Right CV Axle Shaft for Audi Quattro
TrakMotive AD-8197 is a premium CV axle shaft for rear right applications on select Audi Quattro models with the GH2 option. It is built for direct replacement use on the listed vehicles, including Audi A6 Quattro, A7 Quattro, A8 Quattro, RS7, S6, S7, and S8 applications.
Key Features
- Part number: AD-8197
- Rear right CV axle shaft for select Audi Quattro applications
- Premium grade construction
- Inboard joint type: bolt-on
- Outboard joint type: Audi-style spline bolt
- Outboard shaft connection style: spline
- Neoprene boot material on inboard and outboard joints
- Overall compressed length: 22.72 in. (577 mm)
- Overall extended length: 25.79 in. (655 mm)
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
TrakMotive CV Axle Shaft AD-8197 is engineered for rear right driveline service on Audi Quattro platforms that use the GH2 configuration. The axle features a bolt-on inboard joint, an Audi-style spline bolt outboard joint, and a 42-spline outboard shaft connection for the specified fitments. TrakMotive identifies this axle as part of its CV Axle Shaft line and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Part Can Address
- Clicking or popping from a worn CV joint during acceleration or turning
- Vibration from a damaged or imbalanced axle shaft
- Grease leakage from torn or deteriorated CV boots
- Noise from excessive driveline play in the rear axle assembly
- Loss of smooth power transfer to the rear wheel on Quattro models
Installation Notes and Tips
Verify rear right fitment and the GH2 option before ordering. Confirm axle bolt specifications during service: 17 mm hex, M16x1.5 thread, and 85 mm bolt length. The axle nut is not included. Because this axle is listed for non-ABS applications unless otherwise noted, confirm the vehicle’s ABS configuration against the catalog notes before installation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Audi | A7 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2018 | Audi | A8 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2017 | Audi | A6 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2017 | Audi | A7 Quattro | — | 3.0L | V6 | Rear Right | Opt GH2; CV Axle Shaft |
| 2017 | Audi | A8 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2017 | Audi | RS7 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2017 | Audi | S6 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2017 | Audi | S7 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2017 | Audi | S8 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2016 | Audi | A6 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2016 | Audi | A7 Quattro | — | 3.0L | V6 | Rear Right | Opt GH2; CV Axle Shaft |
| 2016 | Audi | A8 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2016 | Audi | RS7 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2016 | Audi | S6 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2016 | Audi | S7 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2016 | Audi | S8 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2015 | Audi | A6 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2015 | Audi | A7 Quattro | — | 3.0L | V6 | Rear Right | Opt GH2; CV Axle Shaft |
| 2015 | Audi | A8 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2015 | Audi | RS7 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2015 | Audi | S6 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2015 | Audi | S7 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2015 | Audi | S8 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2014 | Audi | A6 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2014 | Audi | A7 Quattro | — | 3.0L | V6 | Rear Right | Opt GH2; CV Axle Shaft |
| 2014 | Audi | A8 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2014 | Audi | RS7 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2014 | Audi | S6 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2014 | Audi | S7 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2014 | Audi | S8 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2013 | Audi | A6 Quattro | — | — | — | Rear | Opt GH2; CV Axle Shaft |
| 2013 | Audi | A7 Quattro | — | 3.0L | V6 | Rear Right | Opt GH2; CV Axle Shaft |
| 2013 | Audi | A8 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2013 | Audi | S6 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2013 | Audi | S7 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2013 | Audi | S8 | AWD | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2012 | Audi | A6 Quattro | — | — | — | Rear | Opt GH2; CV Axle Shaft |
| 2012 | Audi | A7 Quattro | — | 3.0L | V6 | Rear Right | Opt GH2; CV Axle Shaft |
| 2012 | Audi | A8 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
| 2011 | Audi | A8 Quattro | — | — | — | Rear Right | Opt GH2; CV Axle Shaft |
