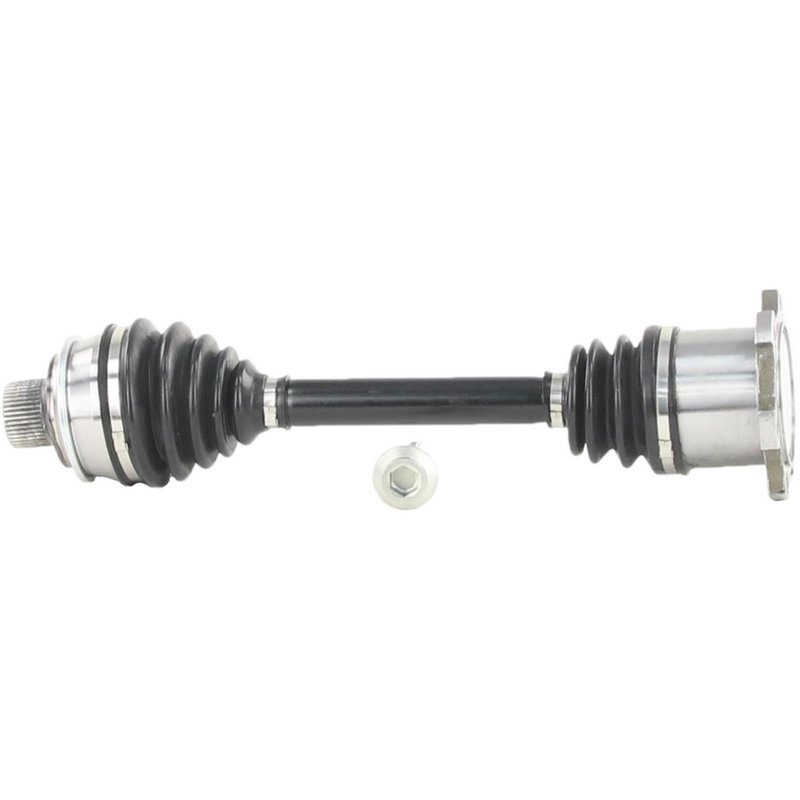

TrakMotive AD-8201 CV Axle Shaft - Front or Front Right

Reliable CV Axle Shaft for Audi Q5 Vehicles

The TrakMotive AAR CV Axle Shaft AD-8201 is engineered to meet the specific driveline needs of Audi Q5 models. Designed with premium-grade materials and precise specifications, this CV axle shaft ensures consistent performance and durability for your vehicle's front-wheel or all-wheel drive system.

Key Features of the TrakMotive AD-8201 CV Axle Shaft

• Compatible with Audi Q5 models requiring a 19.21 to 21.22 inch axle length
• Premium grade construction for enhanced durability
• Neoprene boots on both inboard and outboard joints for effective protection
• Inboard flange joint with bolt-on connection style featuring 6 bolt holes
• Outboard Audi style spline bolt joint with 42 splines and 1 bolt hole
• Axle bolt specifications: 17mm hex size, 85mm length, M16x1.5 thread size
• Does not include ABS tone ring or axle nut

Detailed Description of the AAR CV Axle Shaft AD-8201

This CV axle shaft from TrakMotive’s AAR CV Axle Shaft product line is designed specifically for Audi Q5 vehicles. The shaft features a compressed length of 488 mm (19.21 inches) and an extended length of 539 mm (21.22 inches), accommodating the suspension travel and drivetrain geometry of the Q5. Both the inboard and outboard joints use durable neoprene boots to protect against contaminants and maintain joint integrity. The inboard joint is a flange type with a bolt-on connection style secured by six bolt holes, while the outboard joint uses an Audi style spline bolt connection with 42 splines and one bolt hole. The axle bolts have a 17 mm hex size, 85 mm length, and M16x1.5 thread size, matching factory specifications for secure fitment.

The AAR CV Axle Shaft product line focuses on providing premium-grade CV axle components that meet or exceed OEM standards. This ensures reliable driveline performance and longevity for vehicles like the Audi Q5, where precise fitment and durability are critical.

Common Applications and Issues Addressed

• Replacement of worn or damaged CV axle shafts on Audi Q5 models
• Eliminating clicking or popping noises during turns caused by joint wear
• Resolving vibration or shuddering issues related to axle imbalance or joint failure
• Preventing grease leaks and contamination with durable neoprene boots
• Restoring proper drivetrain function after axle shaft damage

Installation Notes and Tips

• Ensure compatibility with your specific Audi Q5 model year before installation
• Use the correct axle bolts with 17 mm hex size and M16x1.5 thread for secure mounting
• Inspect surrounding components such as wheel bearings and suspension parts during replacement
• Do not reuse axle nuts or bolts unless specified by manufacturer guidelines
• Verify proper torque specifications to avoid premature wear or failure

Quality Assurance and Warranty Information

The TrakMotive AAR CV Axle Shaft AD-8201 is manufactured to premium-grade standards, ensuring reliable performance and durability. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to meet OEM fit and function requirements for Audi Q5 vehicles.
