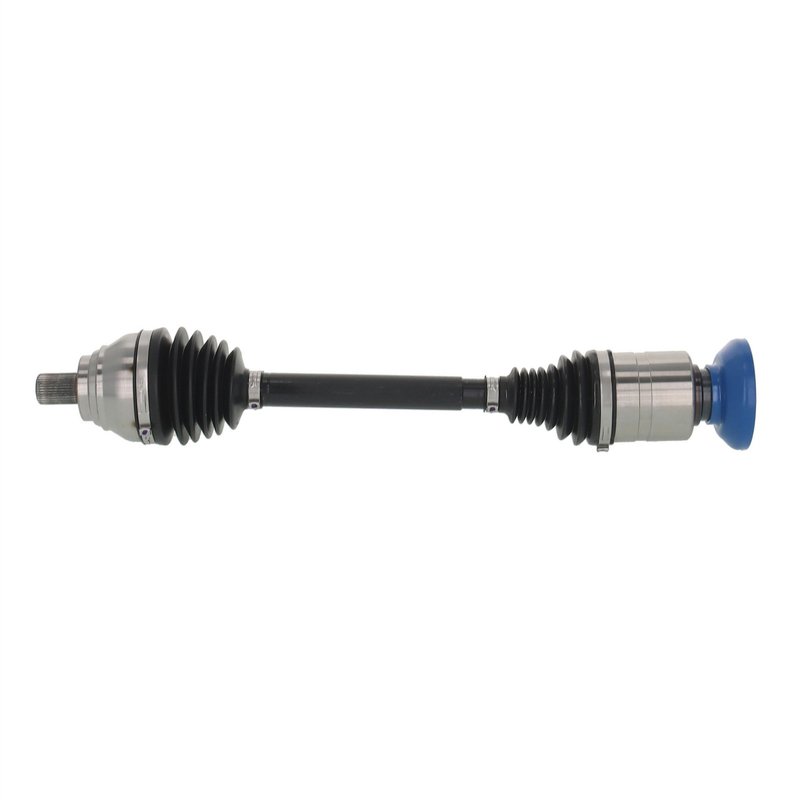

TrakMotive AD-86010 CV Axle Shaft - Front Right

TrakMotive AAR CV Axle Shaft AD-86010

The TrakMotive AAR CV Axle Shaft AD-86010 is a premium driveline replacement for the front right position on select Audi RS3 models. It is built for OE AAR design applications and uses thermoplastic boots with spline-style connections for a precise fit in the driveline assembly.

Compatible with 2017-2018 Audi RS3, front right, this CV axle shaft is a direct-fit option for restoring smooth power transfer and consistent front-end driveline operation. The AD-86010 part number is also useful when cross-checking replacement needs for the same application.

Key Features

• Premium-grade CV axle shaft for driveline and axle service
• Fits 2017-2018 Audi RS3, front right
• OE AAR design application
• Inboard joint type: female with 40 splines
• Outboard joint type: Audi style spline bolt with 36 splines
• Thermoplastic boot material at both joints
• Overall compressed length: 23.31 in. (592 mm)
• Overall extended length: 25.375 in. (644 mm)
• ABS tone ring not included
• Axle nut not included

Product Details

TrakMotive’s AAR CV Axle Shaft line focuses on OE-style driveline replacement parts for applications that require accurate spline counts, joint geometry, and length specifications. The AD-86010 is engineered for the front right side of the Audi RS3 and follows the OE AAR design used on the listed vehicles. TrakMotive identifies this part as a premium-grade axle shaft, and the company notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing processes.

This part number, AD-86010, is a direct reference for 2017-2018 Audi RS3 front right axle replacement needs. If you are sourcing an Audi RS3 CV axle shaft, AD-86010 provides the fitment and dimensional details needed for accurate ordering.

Common Problems This Part Can Address

• Clicking or popping from a worn outer CV joint
• Vibration during acceleration from a damaged axle shaft
• Grease leakage from deteriorated CV boots
• Driveline noise caused by spline or joint wear
• Loss of smooth power delivery to the front right wheel

Installation Notes and Tips

Verify the vehicle’s front right application, spline counts, and overall axle length before installation. This axle does not include an ABS tone ring or axle nut, so confirm whether those components are reused or sourced separately based on the vehicle’s service requirements. Because the outboard joint uses an Audi style spline bolt design, matching the OE-style connection is important for proper installation.

Quality Assurance

TrakMotive backs this AAR CV Axle Shaft with a limited lifetime warranty. The brand also states that its manufacturing is ISO 9001:2008 and TS 16949:2009 certified, supporting consistent production standards for the AD-86010 replacement axle.
