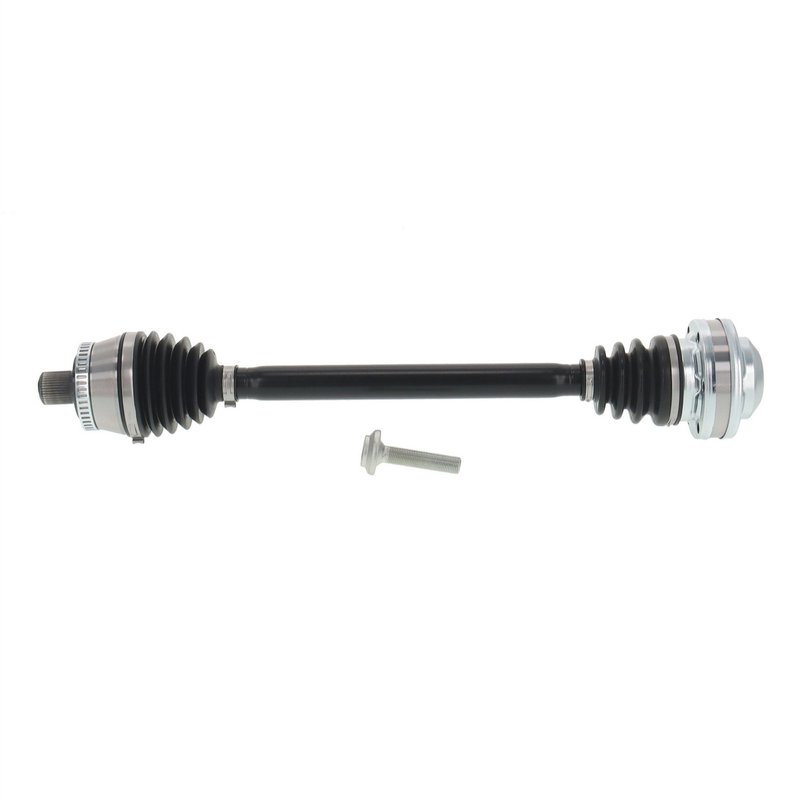

TrakMotive AD-86012 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-86012 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 45 |
| ABS Ring Type | Window |
| ABS Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 85 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.94 |
| Overall Compressed Length (mm) | 634 |
| Overall Extended Length (mm) | 677 |
| Overall Extended Length(In) | 26.625 |
| Product line | CV Axle Shaft |
| Fits | Audi · 2 vehicles |
Bolt-on design. Simplifies installation with a direct-fit axle shaft layout.
ABS tone ring included. Helps maintain wheel speed signal compatibility where needed.
Premium grade. Built with neoprene and thermoplastic boot materials.
Cross-references TrakMotive AD-86012 for the same application. See all 1.
CV Axle Shaft for Audi A4 Quattro
TrakMotive AD-86012 is a premium CV axle shaft for the front right position on 2007-2008 Audi A4 Quattro applications. It is built as an OEM-style axle to help maintain original ride quality while matching the driveline geometry of the vehicle.
Key Features
- Fits 2007-2008 Audi A4 Quattro, front right
- TrakMotive CV Axle Shaft, part number AD-86012
- Premium grade construction for driveline service
- 38 outboard splines with Audi-style spline bolt design
- 45-tooth ABS window ring included
- Inboard joint uses a bolt-on design with neoprene boot material
- Outboard joint boot uses thermoplastic material
- Overall compressed length: 24.94 in. (634 mm)
- Overall extended length: 26.625 in. (677 mm)
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the Audi A4 Quattro and is listed for 2007-2008 model years. The AD-86012 includes an ABS tone ring and is specified for non-ABS applications unless otherwise noted by the vehicle configuration. It uses a 17 mm axle bolt hex size, M16x1.5 axle bolt thread size, and an Audi-style spline bolt outboard joint for proper driveline engagement.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. For Audi A4 Quattro front right service, AD-86012 provides the fitment-specific dimensions and joint design needed for a straightforward axle replacement.
This part cross-references TrakMotive AD-86012 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration felt through the drivetrain during acceleration
- Grease leakage from damaged axle boots
- Excessive play or looseness in the front axle assembly
- Loss of smooth power transfer to the front right wheel
Installation Notes and Tips
- Confirm front right fitment before ordering: 2007-2008 Audi A4 Quattro
- Verify ABS configuration and tone ring requirements against the vehicle
- Inspect axle seals, hub splines, and mounting points during replacement
- Use the correct axle bolt and torque procedure for the application
- Check suspension and steering components for wear that could affect axle life
Quality Assurance
TrakMotive lists this CV axle shaft as a premium-grade replacement and states that its products are made by an ISO 9001:2008 and TS 16949:2009 certified company. The AD-86012 is backed by a limited lifetime warranty.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2008 | Audi | A4 Quattro | Wagon | Manual | 3.2L | V6 | Front Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2007 | Audi | A4 Quattro | Wagon | Manual | 3.2L | V6 | Front Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
