OE Quality
60-Day Returns
TrakMotivePart #: AD-86014

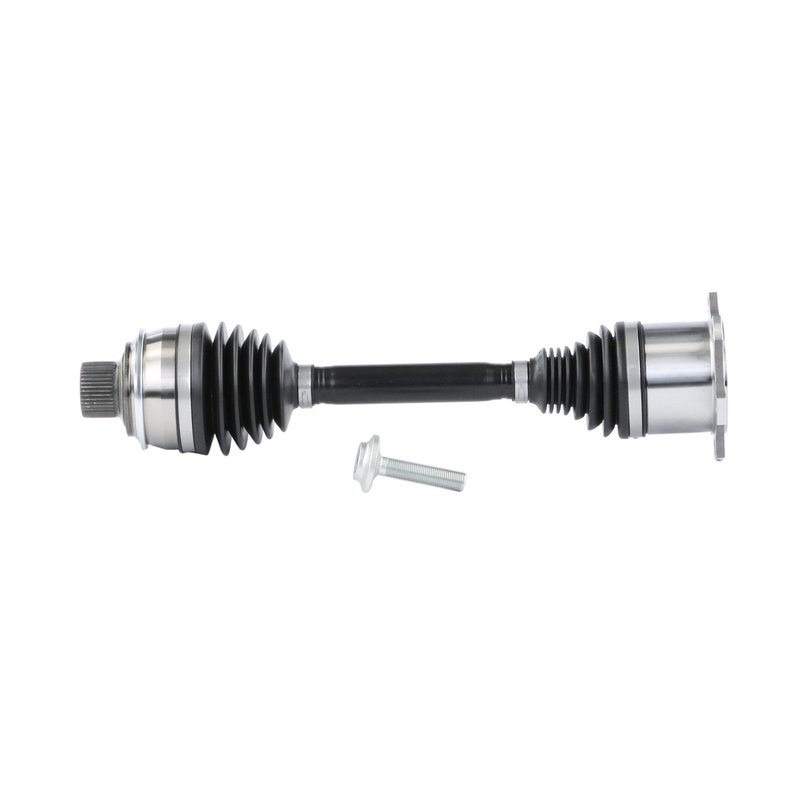

TrakMotive AD-86014 CV Axle Shaft - Front
5 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$279.84Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
AAR CV Axle Shaft, Front
Fitment: Audi, A7 Sportback
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive AD-86014 CV Axle Shaft - Front
| Brand | TrakMotive |
|---|---|
| Part Number | AD-86014 |
| Position | AAR CV Axle Shaft, Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 19 |
| Axle Bolt Length (mm) | 86 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 42 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Flat spline |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 19.31 |
| Overall Compressed Length (mm) | 490 |
| Overall Extended Length (in) | 21.375 |
| Overall Extended Length (mm) | 544 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Audi | A7 Sportback | Front | OE AAR design; AAR CV Axle Shaft |
| 2022 | Audi | A7 Sportback | Front | OE AAR design; AAR CV Axle Shaft |
| 2021 | Audi | A7 Sportback | Front | OE AAR design; AAR CV Axle Shaft |
| 2020 | Audi | A7 Sportback | Front | OE AAR design; AAR CV Axle Shaft |
| 2019 | Audi | A7 Sportback | Front | OE AAR design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
AD-86014
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
