TrakMotive

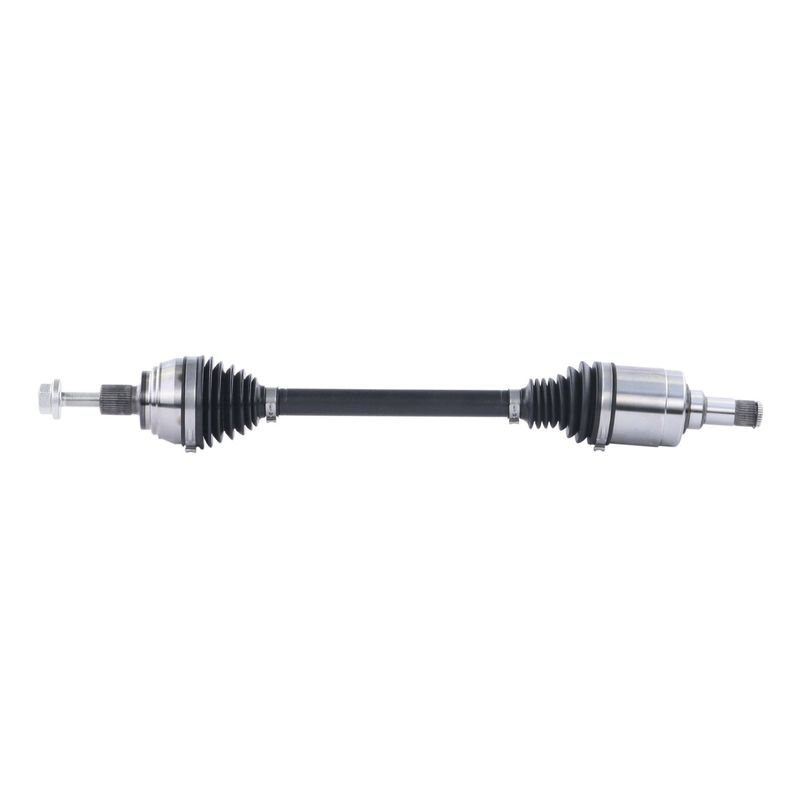

AAR CV Axle ShaftTrakMotive AD-86017 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-86017 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 86 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 33 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Type | Flat spline |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.5 |
| Overall Compressed Length (mm) | 623 |
| Overall Extended Length (In) | 26.69 |
| Overall Extended Length (mm) | 678 |
| Product line | AAR CV Axle Shaft |
| Fits | Volkswagen · 3 vehicles |
Cross-references TrakMotive AD-86017 for the same application. See all 1.
$143.81Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
TrakMotive AD-86017 CV Axle Shaft - Front Right
This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Volkswagen | ID.4 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Volkswagen | ID.4 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Volkswagen | ID.4 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| No rows match your filter. | |||||
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — AD-86017
