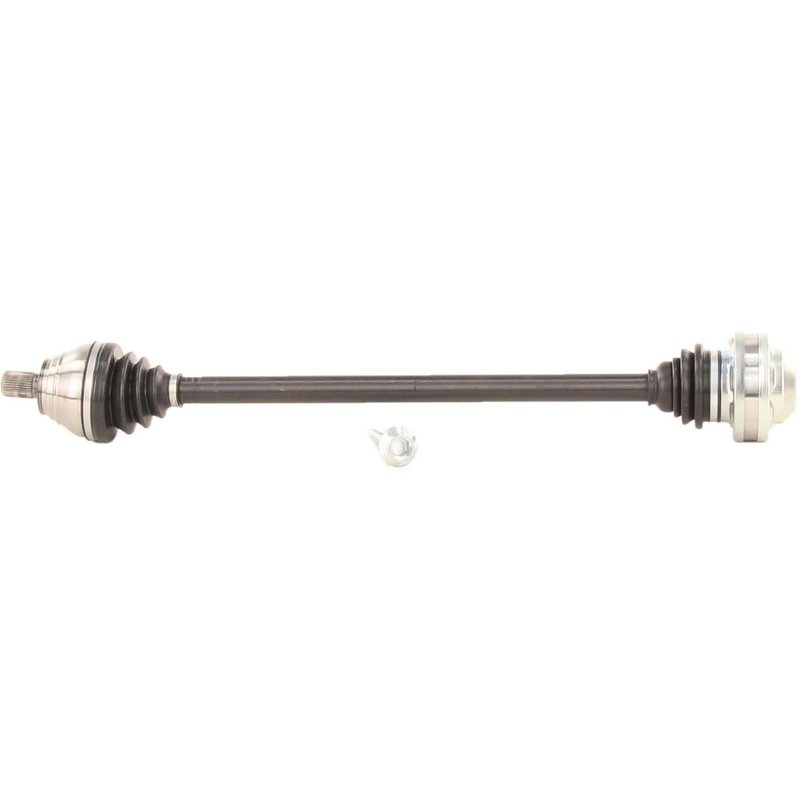

TrakMotive AD-8739 CV Axle Shaft - Front Right
| Brand | TrakMotive AD-8739 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 90 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.3 |
| Overall Compressed Length (mm) | 795 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 5 vehicles |
New CV axle shaft. Bolt-on design for straightforward replacement.
Neoprene boot material. Helps resist wear and keep the joint protected.
ISO certified company. Built by a manufacturer certified to recognized quality standards.
Cross-references TrakMotive AD-8739 for the same application. See all 1.
TrakMotive CV Axle Shaft AD-8739
TrakMotive AD-8739 is a new CV axle shaft for the front right position on select Volkswagen applications. It is built with a neoprene boot, a bolt-on inboard joint, and an Audi-style spline bolt outboard connection for a direct driveline replacement.
Use this CV axle shaft for 2015 Volkswagen Golf front right and 2015-2016 Volkswagen Golf SportWagen front right applications. The AD-8739 is engineered for vehicles that need a precise axle shaft length and spline count to restore proper front-wheel driveline operation.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AD-8739
- New, not remanufactured
- Front right position
- Overall compressed length: 31.3 in. (795 mm)
- 36 outboard splines
- Neoprene boot material
- Bolt-on inboard shaft connection style
- Audi-style spline bolt outboard joint type
- 17 mm axle bolt hex size with M16 x 1.5 thread
- No ABS tone ring included
- No axle nut included
Detailed Description
TrakMotive AD-8739 is a CV axle shaft for front right driveline service on the Volkswagen Golf and Volkswagen Golf SportWagen. It is built as a new replacement axle with a bolt-on inboard joint, spline outboard connection, and a 36-spline outboard design to match the specified application. The 31.3-inch compressed length helps maintain the correct installed geometry for the front axle assembly.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and this part follows that product line with application-specific fitment and construction details. This part cross-references TrakMotive AD-8739 for the same application.
What It Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or out-of-spec axle shaft
- Grease leakage from a torn or deteriorated boot
- Front driveline noise from excessive axle wear
- Loss of smooth power transfer to the front right wheel
Installation Notes and Tips
Fits 2015 Volkswagen Golf, front right. Fits 2015-2016 Volkswagen Golf SportWagen, front right. Verify axle bolt thread size, spline count, and compressed length before installation to confirm the correct front right replacement. ABS axles fit non-ABS applications unless otherwise noted by the vehicle application.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2016 | Volkswagen | Golf SportWagen | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2015 | Volkswagen | Golf | TDI SEL | Manual | — | — | Front Right | CV Axle Shaft |
| 2015 | Volkswagen | Golf | TDI SE | Manual | — | — | Front Right | CV Axle Shaft |
| 2015 | Volkswagen | Golf | TDI S | Manual | — | — | Front Right | CV Axle Shaft |
| 2015 | Volkswagen | Golf SportWagen | — | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
