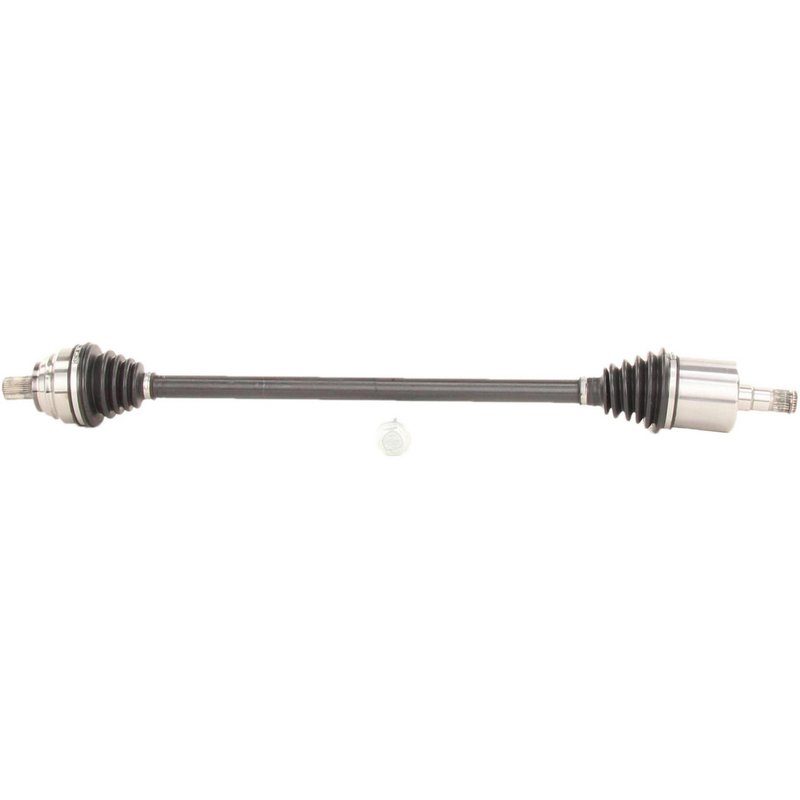

TrakMotive AD-8769 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft AD-8769

The TrakMotive CV Axle Shaft AD-8769 is designed specifically for Volkswagen Golf and Golf SportWagen models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction to maintain vehicle stability and power transfer.

• Compatible with Volkswagen Golf and Golf SportWagen
• Part number AD-8769 for exact replacement
• Neoprene boot material for enhanced durability
• Axle bolt hex size: 27 mm, bolt length: 95 mm, thread size: M16*1.5
• Inboard joint type: Male with 26 splines
• Outboard joint type: Audi style spline bolt with 36 splines
• Overall compressed length: 882 mm (34.72 inches)
• One bolt hole and one outboard shaft bolt for secure installation

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality CV components engineered for precise fit and function. This line emphasizes durable neoprene boots and robust joint designs, such as the male inboard joint and Audi style spline outboard joint, to ensure consistent driveline performance. The AD-8769 model exemplifies these standards with its exact Volkswagen Golf and Golf SportWagen compatibility and detailed specifications.

Technical Description and Features

The AD-8769 CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint uses a male connection style with 26 splines, while the outboard joint employs an Audi style spline bolt with 36 splines, providing secure and precise engagement. The axle bolts are sized at 27 mm hex with a length of 95 mm and thread size M16*1.5, ensuring proper fastening. The overall compressed length of 882 mm (34.72 inches) matches factory specifications for Volkswagen Golf and Golf SportWagen models, facilitating straightforward replacement.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Volkswagen Golf and Golf SportWagen
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Addresses grease leakage from torn or degraded boots
• Restores driveline integrity for smooth power transfer to wheels

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the part number AD-8769 matches the original axle shaft. Use the specified 27 mm hex socket for axle bolts and torque to manufacturer specifications. Inspect the mating surfaces and clean any debris before installation. Since the axle nut is not included, reuse the original or source a compatible replacement. Properly seat the neoprene boot to prevent contamination and premature wear.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8769 is a new, not remanufactured, component built to meet OEM standards. It undergoes quality checks to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed coverage against defects in materials and workmanship.
