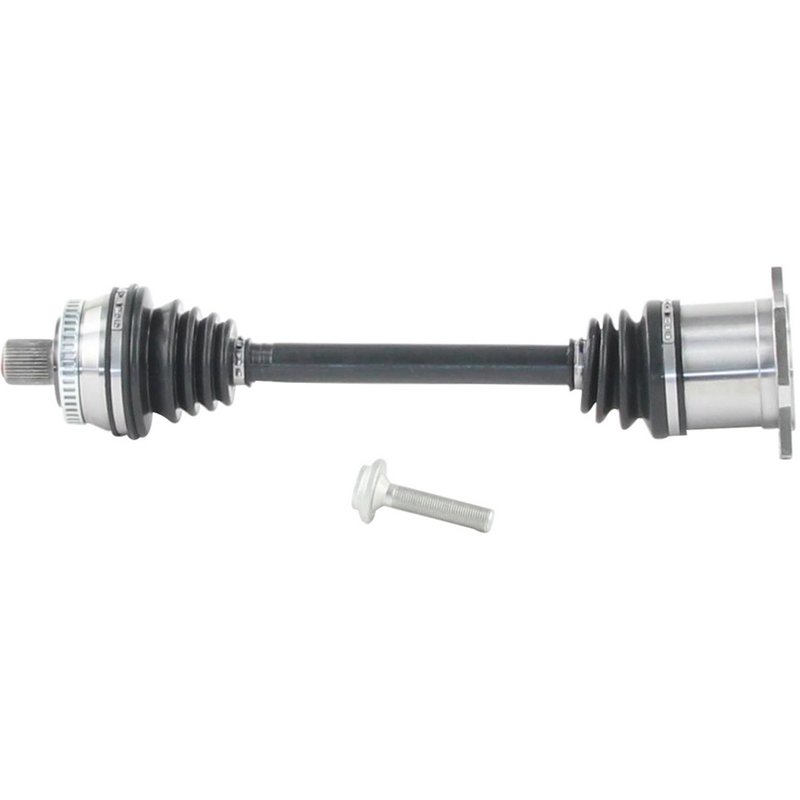

TrakMotive AD-8784 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Audi A4 Quattro

The TrakMotive CV Axle Shaft AD-8784 is engineered to meet the specific driveline needs of the Audi A4 Quattro. Designed as a new replacement part, it ensures precise fitment and reliable performance for your vehicle's front-wheel drive system.

• Abs ring with 45 teeth and window type design for accurate wheel speed sensing
• Includes ABS tone ring for enhanced anti-lock braking system functionality
• Neoprene boot material for durable protection against contaminants
• Inboard flange joint with spline shaft connection for secure fit
• Outboard Audi style spline bolt joint with bolt-on shaft connection
• Axle bolt specifications: 17mm hex size, 85mm length, M16x1.5 thread size
• Overall compressed length of 486mm (19.13 inches) for exact replacement
• Single bolt hole and single outboard shaft bolt for installation compatibility

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft line focuses on delivering new, high-quality constant velocity axle components designed for direct replacement applications. This product line emphasizes precise engineering to match OEM specifications, ensuring proper fit and function in vehicles like the Audi A4 Quattro. The AD-8784 model exemplifies this approach with its detailed attention to joint types, boot materials, and ABS integration.

Detailed Product Description

The AD-8784 CV Axle Shaft from TrakMotive is a new, direct replacement part tailored for the Audi A4 Quattro. It features a 45-tooth ABS ring with a window design, which works in conjunction with the included ABS tone ring to maintain accurate wheel speed data for the vehicle's anti-lock braking system. The neoprene boot material offers resistance to wear and environmental damage, protecting the internal joints. The inboard joint uses a flange type with a spline shaft connection, while the outboard joint employs an Audi style spline bolt design with a bolt-on connection style, ensuring secure and reliable attachment. The axle bolts have a 17mm hex size, 85mm length, and M16x1.5 thread size, matching factory specifications. With an overall compressed length of 486mm (19.13 inches), this axle shaft fits precisely without modification.

Common Applications and Issues Addressed

• Replacement of worn or damaged CV axle shafts on Audi A4 Quattro models
• Restoring proper ABS sensor function by replacing faulty ABS tone rings
• Eliminating clicking or popping noises during turns caused by joint wear
• Resolving vibration or shuddering issues related to axle shaft imbalance
• Preventing grease leaks and contamination with durable neoprene boots

Installation Notes and Tips

• Verify compatibility with Audi A4 Quattro before installation
• Use appropriate torque specifications for axle bolts: 17mm hex, M16x1.5 thread
• Inspect surrounding suspension components during installation for wear
• Ensure ABS tone ring is properly seated to maintain sensor accuracy
• Do not reuse axle nuts as they are not included with this part

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8784 is manufactured to meet or exceed OEM standards for durability and performance. This new axle shaft undergoes rigorous quality control to ensure reliable operation in the Audi A4 Quattro. Warranty coverage details should be confirmed with the distributor or manufacturer.
