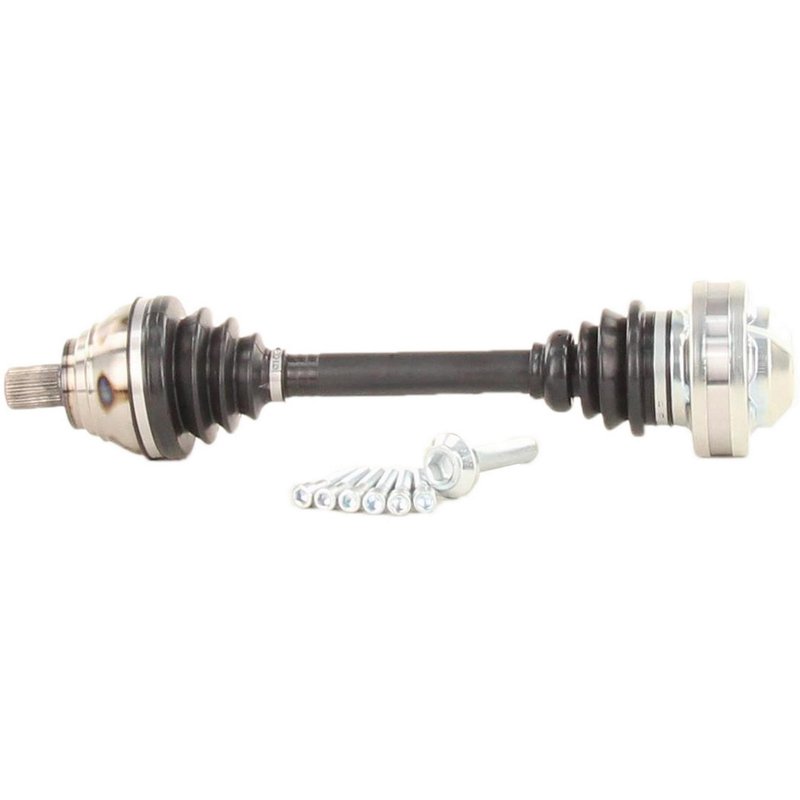

TrakMotive AD-8791 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft AD-8791

The TrakMotive CV Axle Shaft AD-8791 is engineered for reliable driveline performance in select Audi and Volkswagen models. Designed to meet OEM specifications, this new axle shaft ensures proper fit and function for vehicles like the Audi A3 and Volkswagen Golf series.

• Compatible with Audi A3, A3 Quattro, S3 and Volkswagen Golf, Golf City, Golf R, Golf SportWagen, GTI, Jetta, and R32
• New, not remanufactured, for consistent durability
• Neoprene boot material for enhanced protection against contaminants
• Overall compressed length of 19.06 inches (484 mm) and extended length of 20.91 inches (531 mm)
• Outboard joint features Audi style spline bolt with 36 splines
• Inboard joint is bolt-on type with 6 bolt holes and Allen head bolts
• Axle bolt hex size 17 mm, bolt length 85 mm, thread size M16*1.5

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft AD-8791 belongs to the CV Axle Shaft product line, which focuses on delivering precise driveline components for European vehicles. The axle shaft is constructed with a neoprene boot that resists wear and environmental damage, ensuring long service life. The inboard joint uses a bolt-on connection style with six M10*1.5 Allen head bolts, each 60 mm (2 3/8 inches) in length, providing secure attachment and ease of installation. The outboard joint employs an Audi style spline bolt with 36 splines and a single bolt hole, designed to fit the specific requirements of Audi and Volkswagen drivetrains.

The axle shaft does not include an ABS tone ring or axle nut, so these components must be sourced separately if required. The overall length specifications—19.06 inches compressed and 20.91 inches extended—ensure compatibility with the listed vehicle models, maintaining proper driveline geometry and performance.

Applications and Common Repair Solutions

• Replacement for worn or damaged CV axle shafts in Audi A3, S3, and Volkswagen Golf models
• Fixes clicking or popping noises during turns caused by failing CV joints
• Resolves vibration or shuddering issues related to axle imbalance or joint wear
• Addresses grease leaks from torn or degraded CV boots
• Restores driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

• Verify vehicle compatibility with the part number AD-8791 before installation
• Ensure all bolts, including the 6 inboard Allen head bolts and single outboard bolt, are torqued to manufacturer specifications
• Inspect surrounding components such as wheel bearings and axle nuts (not included) during replacement
• Use appropriate tools for the 17 mm axle bolt hex and M16*1.5 thread size
• Check for proper boot seating to prevent contamination and premature wear

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft AD-8791 is a new, precision-engineered component designed to meet or exceed OEM standards for fit and function. Manufactured with durable materials including a neoprene boot, this axle shaft supports reliable driveline operation. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
