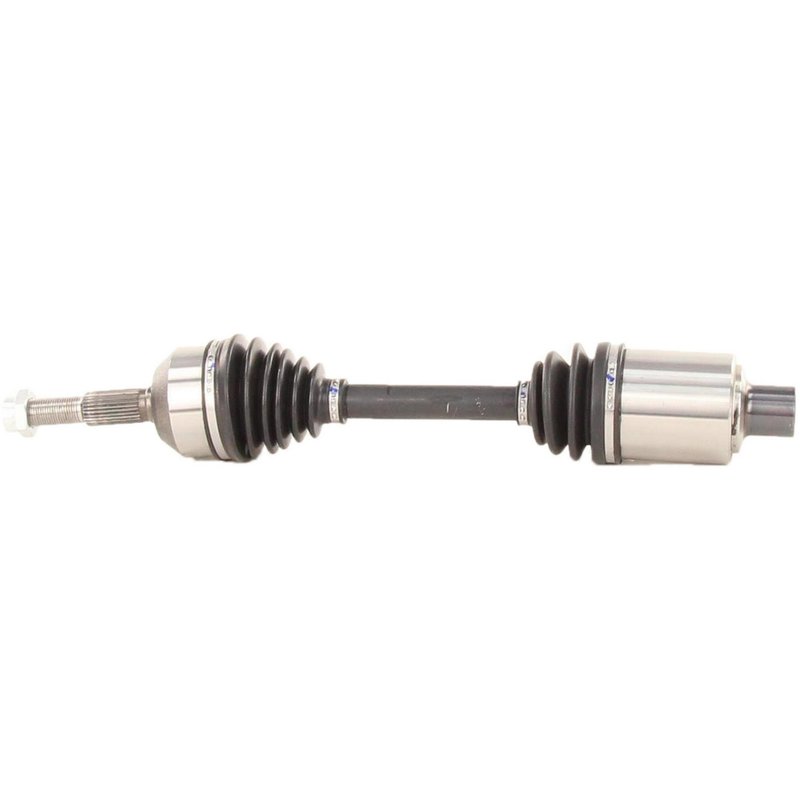

TrakMotive AM-8003 CV Axle Shaft - Front Right
| Brand | TrakMotive AM-8003 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.7 |
| Overall Compressed Length (mm) | 602 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
New unit. Freshly manufactured for dependable driveline service.
Neoprene boot. Helps protect the joint from wear and contamination.
Axle nut included. Saves time by providing the matching hardware.
Cross-references TrakMotive AM-8003, 40-14202 and 60-3459 for the same application. See all 16.
TrakMotive AM-8003 CV Axle Shaft for Jeep Liberty
TrakMotive AM-8003 is a new CV axle shaft for the front right position on 2002-2006 Jeep Liberty models. It is built for direct driveline replacement service and includes the axle nut specified for this application.
Key Features
- Fits 2002-2006 Jeep Liberty, front right
- New CV axle shaft for driveline and axle service
- Female inboard shaft connection with 29 inboard splines
- Conventional outboard joint with 27 outboard splines
- Neoprene boot material for CV joint protection
- Axle nut included; hex head, self-locking, M24 x 2 thread
- No ABS tone ring included
- Overall compressed length: 23.7 in. (602 mm)
Product Details
TrakMotive CV Axle Shaft AM-8003 is a direct-fit replacement for the front right side of the Jeep Liberty from 2002 through 2006. This axle shaft uses a female inboard connection and a conventional outboard joint, with 29 inboard splines and 27 outboard splines for the listed application. The neoprene boot helps protect the CV joint assembly, while the included axle nut supports proper installation on the specified vehicle fitment. This part cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration felt through the drivetrain during acceleration
- Grease leakage from a damaged axle boot
- Clunking or looseness from a worn front axle assembly
- Loss of smooth power transfer to the front right wheel
Installation Notes and Tips
Verify front right fitment before installation on 2002-2006 Jeep Liberty models. Confirm axle nut thread size, spline count, and overall length against the removed part before assembly. Inspect the hub, seals, and surrounding suspension components for wear, and follow the vehicle service procedure for torque specifications and final fastener tightening.
Quality Assurance
TrakMotive identifies this axle shaft as a new part and states that its manufacturing is supported by ISO 9001:1007 and TS 16949:2009 certified company processes. The manufacturer also backs this CV axle shaft with a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Jeep | Liberty | 4WD | 2.8L | L4 | Front Right | CV Axle Shaft |
| 2005 | Jeep | Liberty | 4WD | 2.8L | L4 | Front Right | CV Axle Shaft |
| 2005 | Jeep | Liberty | 4WD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2004 | Jeep | Liberty | 4WD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2003 | Jeep | Liberty | 4WD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2002 | Jeep | Liberty | 4WD | 2.4L | L4 | Front Right | CV Axle Shaft |
