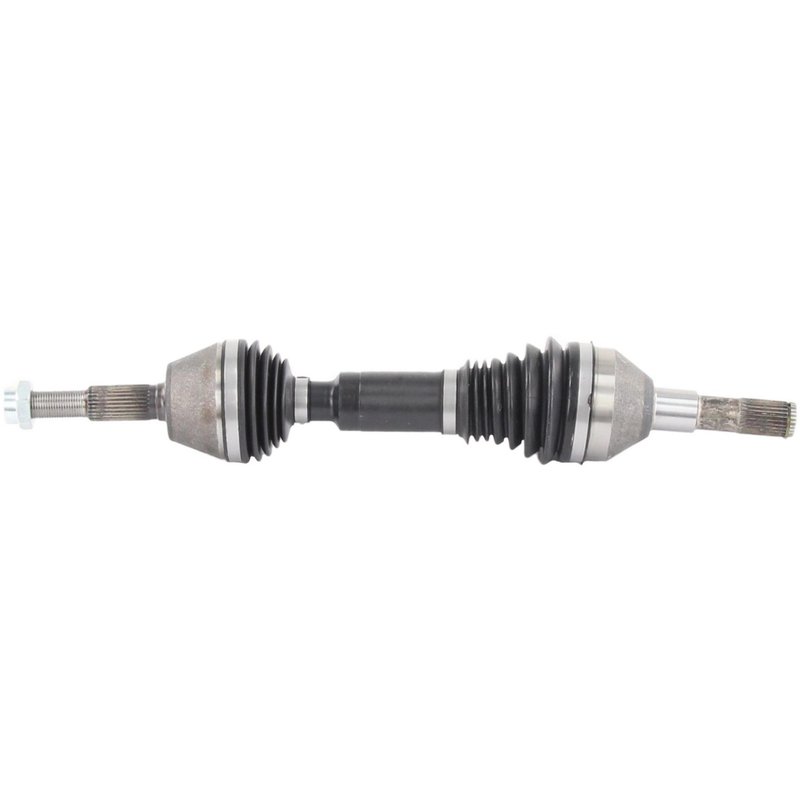

TrakMotive AM-8004XTT CV Axle Shaft - Front Left
| Brand | TrakMotive AM-8004XTT |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.85 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1.42 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.64 |
| Axle Nut Length (mm) | 41.57 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.54 |
| Overall Compressed Length (mm) | 598 |
| Product line | Extended Travel CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
Extended travel design. Sliding center bar adds up to 44 mm more travel than an OEM CV shaft.
High articulation angle. CV joints reach up to 47 degrees for greater suspension movement.
New replacement part. Built as a new CV axle shaft with neoprene boot and included axle nut.
Cross-references TrakMotive AM-8004XTT, 40-14203 and 80-0616 for the same application. See all 15.
Extended Travel CV Axle for Jeep Liberty
TrakMotive AM-8004XTT is an extended travel CV axle shaft for the front left position on 2002-2006 Jeep Liberty models. It is built for high-articulation use on lifted or stock suspensions, on-road or off-road, with added shaft travel and greater joint angle capacity than a typical OE axle.
Key Features
- Extended Travel CV Axle Shaft from TrakMotive
- Sliding center bar provides up to 44 mm more travel than an OEM CV shaft
- CV joints achieve up to 47 degrees of articulation versus a typical 23 degrees on OE joints
- Fits 2002-2006 Jeep Liberty, front left
- New axle assembly with neoprene boot material
- Inboard joint type: male; inboard and outboard shaft connection style: spline
- Includes axle nut with hex head, self-locking design, M24x2 thread size, and 36 mm hex size
- 27 inboard splines and 27 outboard splines
Product Details
The TrakMotive Extended Travel CV Axle Shaft line is engineered for suspension setups that need more operating range than a standard replacement axle. On the Jeep Liberty front left application, AM-8004XTT uses a sliding center bar to increase plunge travel and CV joint articulation, helping the axle maintain engagement through suspension movement. This makes it a practical choice for lifted or stock Jeep Liberty builds where front axle angle and travel are part of the drivetrain load path. This part number, AM-8004XTT, is listed for 2002-2006 Jeep Liberty front left applications and cross-references Monroe Shocks & Struts 172286 for the same application.
What It Helps Address
- Front axle binding caused by increased suspension travel
- CV joint angle issues on lifted Jeep Liberty setups
- Noise or vibration related to worn front left CV axle components
- Loss of axle engagement during suspension droop or compression
- Replacement needs for a damaged or worn front left driveline shaft
Installation Notes and Tips
Verify spline count, axle nut thread size, and front left fitment before installation. Inspect the hub, seals, and mating components for wear, and replace damaged hardware or related parts as needed. Because this application is listed for high-articulation use, confirm suspension height and drivetrain geometry after installation on the Jeep Liberty. AM-8004XTT is a direct-fit style replacement for the specified vehicle and position.
Quality Assurance
TrakMotive supplies this as a new CV axle shaft built for extended travel performance in the specified application. The design focuses on increased articulation range and added shaft movement for demanding driveline conditions.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Jeep | Liberty | 4WD | 2.8L | L4 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Jeep | Liberty | 4WD | 2.8L | L4 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Jeep | Liberty | 4WD | 2.4L | L4 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Jeep | Liberty | 4WD | 2.4L | L4 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Jeep | Liberty | 4WD | 2.4L | L4 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Jeep | Liberty | 4WD | 2.4L | L4 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
