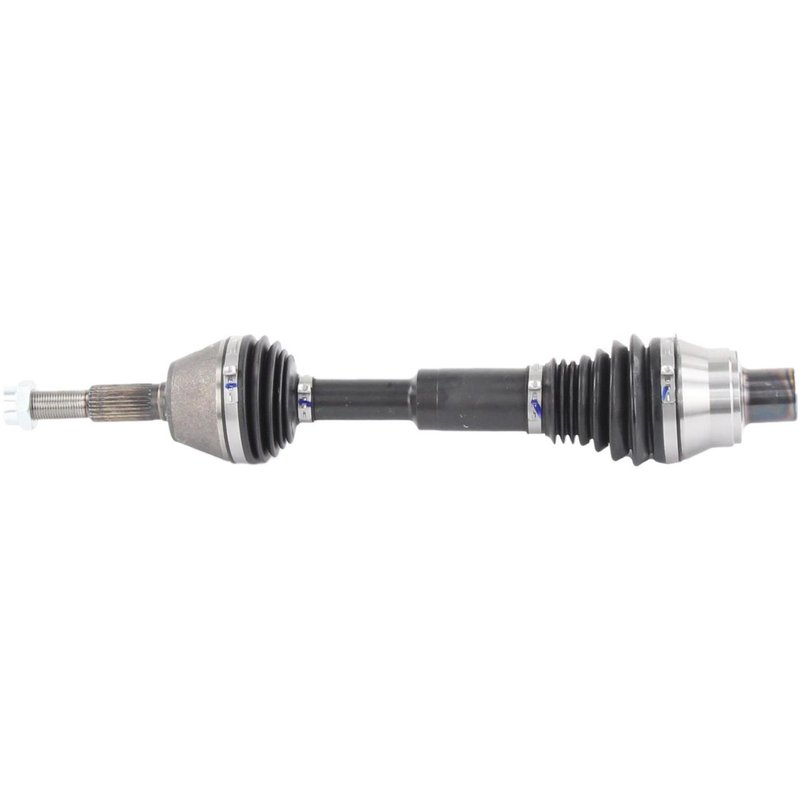

TrakMotive AM-8005XTT CV Axle Shaft - Front Right
| Brand | TrakMotive AM-8005XTT |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.85 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1.42 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.64 |
| Axle Nut Length (mm) | 41.57 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.64 |
| Overall Compressed Length (mm) | 575 |
| Product line | Extended Travel CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
Extended travel design. Sliding center bar adds up to 44mm more travel than an OEM CV shaft.
Greater articulation angle. CV joints reach up to 47 degrees for more suspension movement.
Includes axle nut. Self-locking hex nut is included for a more complete installation.
Cross-references Cardone New 66-3352, Cardone Reman 60-3352 and Edelmann 9118 for the same application. See all 18.
Extended Travel CV Axle for Jeep Liberty
TrakMotive AM-8005XTT is an extended travel CV axle shaft for the front right position on 2002-2007 Jeep Liberty models. It is built for high-articulation use on lifted or stock suspensions, including on-road and off-road driving.
The TrakMotive Extended Travel CV Axle Shaft line adds more suspension movement than a standard OE-style axle. For the Jeep Liberty, this design uses a sliding center bar to provide up to 44 mm more travel than an OEM CV shaft and CV joints that can reach up to 47 degrees of articulation, compared with a typical 23-degree OE joint angle.
Key Features
- Fits 2002-2007 Jeep Liberty, front right
- TrakMotive Extended Travel CV Axle Shaft, part number AM-8005XTT
- Sliding center bar design for increased suspension travel
- Up to 44 mm more travel than a standard OEM CV shaft
- Up to 47-degree CV joint articulation for high-angle suspension movement
- New axle assembly with neoprene boot material
- Female inboard joint with spline connection
- Conventional outboard joint with spline connection
- Includes axle nut with self-locking design
- ABS tone ring not included
Detailed Description
AM-8005XTT is a new CV axle shaft engineered for the front right side of the Jeep Liberty. It features 29 inboard splines, 27 outboard splines, an M24x2 axle nut thread, and a 36 mm axle nut hex size. The overall compressed length is 575 mm, and the neoprene boot material is selected for driveline service in demanding suspension conditions. This part cross-references Cardone New 66-3352 for the same application.
As part of TrakMotive’s Extended Travel CV Axle Shaft line, AM-8005XTT is built for vehicles that need additional axle movement during suspension travel. That makes it a direct fitment choice for Jeep Liberty front right service where lifted or stock suspension geometry requires greater articulation than a standard OE axle can provide.
Common Problems This Part Addresses
- CV axle binding during suspension droop
- Clicking or vibration caused by excessive joint angle
- Axle stress on lifted Jeep Liberty suspension setups
- Reduced driveline movement after off-road articulation
- Wear from repeated high-angle CV joint operation
Installation Notes and Tips
Install AM-8005XTT on the front right position only for the listed Jeep Liberty applications. Verify spline count, compressed length, axle nut thread size, and ABS requirements before installation. Because the fitment notes specify extended travel and high articulation, inspect suspension height and geometry to confirm the axle is appropriate for the vehicle setup. Always replace in pairs when servicing the axle assembly on the vehicle.
Quality Assurance
TrakMotive supplies this as a new driveline component designed for extended travel use in Jeep Liberty applications. The AM-8005XTT part number identifies the exact front right axle configuration for 2002-2007 Jeep Liberty service.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Right | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Right | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Right | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Right | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Right | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Right | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
