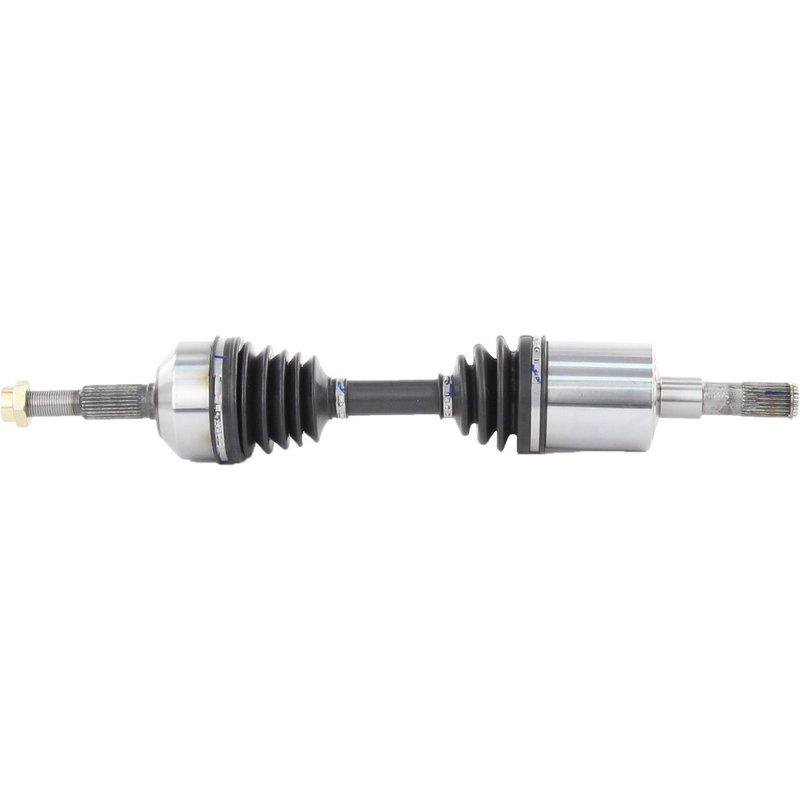

TrakMotive AM-8006 CV Axle Shaft - Front Left
| Brand | TrakMotive AM-8006 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.53 |
| Overall Compressed Length (mm) | 623 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
Axle nut included. Comes ready with a self-locking hex nut for easier installation.
ABS note. Fits non-ABS applications unless otherwise noted.
Cross-references Anchor 9119, Cardone New 66-3351 and Cardone Reman 60-3351 for the same application. See all 19.
TrakMotive CV Axle Shaft for Jeep Liberty
TrakMotive AM-8006 is a new CV axle shaft for the front left position on select Jeep Liberty models. It is built for 2002-2007 Jeep Liberty applications and includes a self-locking axle nut for the specified fitment.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AM-8006
- Fits 2002-2007 Jeep Liberty, front left
- New axle shaft construction
- 27 inboard splines and 27 outboard splines
- Male inboard shaft connection style
- Conventional outboard joint type
- Neoprene boot material
- Axle nut included with M24x2 thread size
- 36 mm axle nut hex size
- No ABS tone ring included
- Overall compressed length: 24.53 in. (623 mm)
Product Details
AM-8006 is a TrakMotive CV axle shaft for Jeep Liberty front left applications. It is specified with a 24.53-inch compressed length, 27 splines at both ends, a male inboard connection, and a conventional outboard joint. The neoprene boot and included self-locking axle nut support a direct replacement setup for the listed vehicle range. This part cross-references Cardone New 66-3351 for the same application.
Common Issues This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration during acceleration caused by axle wear
- Torn boot conditions that allow grease loss and contamination
- Excessive play in the front left driveline assembly
- Noise from a damaged or failing axle shaft
Installation Notes
Verify front left fitment, spline count, and axle length before installation. Confirm whether the vehicle uses ABS, since this axle does not include an ABS tone ring and ABS axles fit non-ABS applications unless otherwise noted. Inspect the hub, seals, and mounting points during replacement, and torque the axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive identifies this axle shaft as a new part and states that its manufacturing is backed by ISO 9001:1007 and TS 16949:2009 certified company processes. The part is covered by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | CV Axle Shaft |
| 2006 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | CV Axle Shaft |
| 2005 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | CV Axle Shaft |
| 2004 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | CV Axle Shaft |
| 2003 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | CV Axle Shaft |
| 2002 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | CV Axle Shaft |
