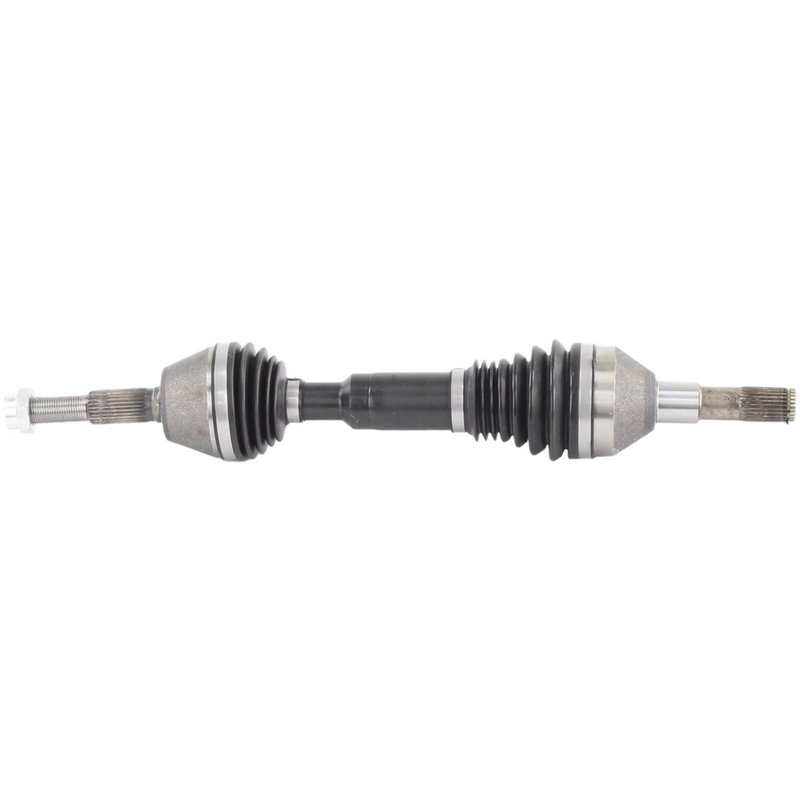

TrakMotive AM-8006XTT CV Axle Shaft - Front Left
| Brand | TrakMotive AM-8006XTT |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.85 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1.42 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.64 |
| Axle Nut Length (mm) | 41.57 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.33 |
| Overall Compressed Length (mm) | 618 |
| Product line | Extended Travel CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
Extended travel design. Sliding center bar adds up to 44 mm more travel than an OEM CV shaft.
Greater articulation. CV joints reach up to 47 degrees for more suspension movement.
New replacement part. Built as a new CV axle shaft with included self-locking axle nut.
Cross-references Anchor 9119, Cardone New 66-3351 and Cardone Reman 60-3351 for the same application. See all 18.
Extended Travel CV Axle for Jeep Liberty
TrakMotive AM-8006XTT is an extended travel CV axle shaft for the front left position on 2002-2007 Jeep Liberty models. It is built for lifted or stock suspensions and for on-road or off-road use where additional articulation and shaft travel are needed.
The TrakMotive Extended Travel CV Axle Shaft line adds more suspension movement than a standard OE-style axle. For the Jeep Liberty, this design helps maintain driveline engagement through greater suspension travel while supporting higher CV joint articulation.
Key Features
- Extended travel CV axle shaft for front left application
- Fits 2002-2007 Jeep Liberty, front left
- Sliding center bar provides up to 44 mm more travel than an OEM CV shaft
- CV joints achieve up to 47 degrees of articulation versus a typical 23 degrees on OE joints
- New axle assembly with 27 inboard splines and 27 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with M24 x 2 thread size and 36 mm hex size
- Male inboard joint with spline connection and conventional outboard joint
Product Details
TrakMotive AM-8006XTT is engineered for Jeep Liberty owners who need more suspension travel without giving up driveline function. The extended travel design uses a sliding center bar to allow additional axle movement, while the higher articulation angle helps the CV joints operate through steeper suspension angles. This makes it a direct-fit driveline solution for 2002-2007 Jeep Liberty front left service, including lifted or stock suspension setups.
This part cross-references Cardone New 66-3351 for the same application. TrakMotive AM-8006XTT is also identified by the AM-8006XTT part number in replacement catalogs and driveline lookup systems.
Common Problems It Can Address
- Front axle binding after suspension lift changes
- CV joint angle issues during suspension compression or droop
- Axle shaft travel limits on modified Jeep Liberty suspension setups
- Driveline vibration or clicking caused by worn front CV components
- Loss of smooth power transfer at the front left wheel end
Installation Notes
Verify spline count, axle nut thread size, and position before installation. This axle is for the front left side only and uses a conventional outboard joint with a male inboard joint. The ABS tone ring is not included, so confirm vehicle sensor requirements before service. Always inspect related suspension and hub components during axle replacement, and replace in pairs when the vehicle service procedure calls for matched driveline wear.
Quality Assurance
TrakMotive manufactures this as a new extended travel CV axle shaft for driveline service on Jeep Liberty applications. The AM-8006XTT is built to meet the demands of higher articulation and added travel in front axle use.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Jeep | Liberty | 4WD | 3.7L | V6 | Front Left | Extended Travel - High Articulation, for lifted or stock suspensions, on or off road.; Always Replace in Pairs; Extended Travel CV Axle Shaft |
