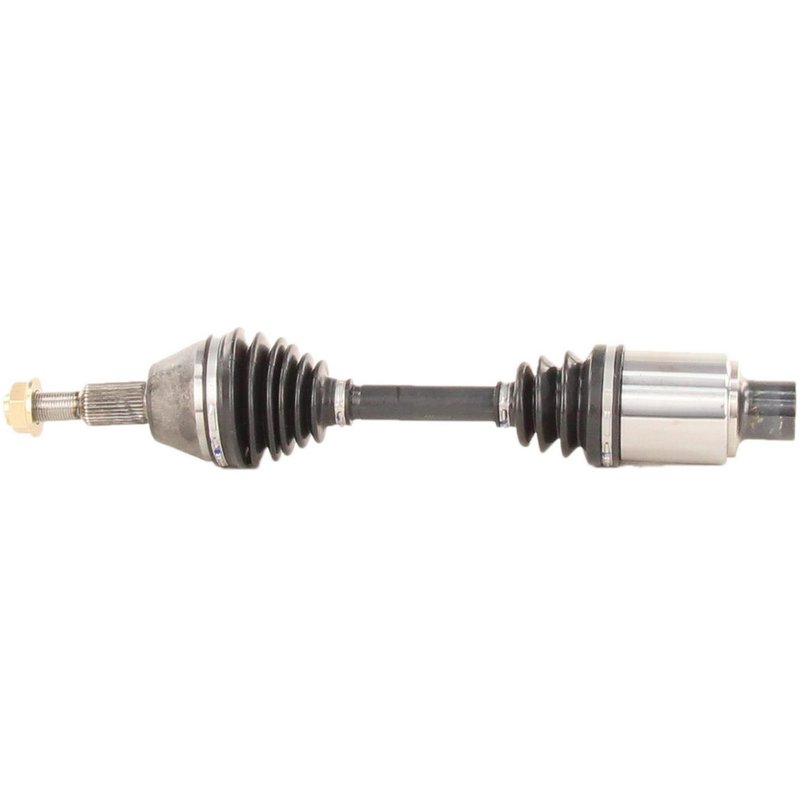

TrakMotive AM-8007 CV Axle Shaft - Front Right
| Brand | TrakMotive AM-8007 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 21.34 |
| Overall Compressed Length (mm) | 542 |
| Product line | CV Axle Shaft |
| Fits | Jeep and Dodge · 10 vehicles |
New CV axle shaft. Fresh replacement part for dependable driveline service.
Neoprene boot material. Helps protect the joint from wear and contamination.
Axle nut included. Conveniently supplied with a self-locking hex nut.
Cross-references Cardone New 66-3564, Cardone Reman 60-3564 and TrakMotive AM-8007 for the same application. See all 10.
TrakMotive CV Axle Shaft AM-8007
TrakMotive AM-8007 is a new CV axle shaft for front right applications on select Jeep Liberty and Dodge Nitro models. Built for direct driveline replacement, it uses a neoprene boot, a spline-style outboard connection, and a female inboard joint layout for the specified fitments.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: AM-8007
- New construction for replacement service
- Overall compressed length: 21.34 in. (542 mm)
- Inboard joint type: female
- Outboard joint type: conventional
- Outboard shaft connection style: spline
- Inboard splines: 29
- Outboard splines: 32
- Boot material: neoprene
- Axle nut included with self-lock design
- Axle nut thread size: M24x2
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is engineered for front right driveline service on 2008-2012 Jeep Liberty and 2007-2011 Dodge Nitro models. The AM-8007 configuration matches the listed spline counts, compressed length, and joint styles for those applications, making it a direct replacement option for worn or damaged front axle assemblies. TrakMotive positions this CV axle shaft line as a replacement driveline component backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing processes, with a limited lifetime warranty noted by the manufacturer.
This part cross-references Cardone New 66-3564 and Cardone Reman 60-3564 for the same application.
What It Helps Fix
- Clicking or popping from a worn front right CV joint
- Vibration during acceleration caused by axle wear
- Torn or deteriorated axle boot conditions
- Grease loss from a compromised CV assembly
- Driveline noise related to a damaged axle shaft
Installation Notes
Verify front right fitment by year, make, model, and spline configuration before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification. This axle does not include an ABS tone ring, so it is intended for non-ABS applications unless otherwise noted in the vehicle listing. Use proper torque procedures and inspect related suspension and hub components during replacement.
Quality Assurance
TrakMotive identifies AM-8007 as a new CV axle shaft produced under ISO 9001:1007 and TS 16949:2009 certified quality systems. The manufacturer also states a limited lifetime warranty for this part.
Fitment
- Fits 2008-2012 Jeep Liberty, front right.
- Fits 2007-2011 Dodge Nitro, front right.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2012 | Jeep | Liberty | 4WD | Front Right | CV Axle Shaft |
| 2011 | Dodge | Nitro | 4WD | Front Right | CV Axle Shaft |
| 2011 | Jeep | Liberty | 4WD | Front Right | CV Axle Shaft |
| 2010 | Dodge | Nitro | 4WD | Front Right | CV Axle Shaft |
| 2010 | Jeep | Liberty | 4WD | Front Right | CV Axle Shaft |
| 2009 | Dodge | Nitro | 4WD | Front Right | CV Axle Shaft |
| 2009 | Jeep | Liberty | 4WD | Front Right | CV Axle Shaft |
| 2008 | Dodge | Nitro | 4WD | Front Right | CV Axle Shaft |
| 2008 | Jeep | Liberty | 4WD | Front Right | CV Axle Shaft |
| 2007 | Dodge | Nitro | 4WD | Front Right | CV Axle Shaft |
