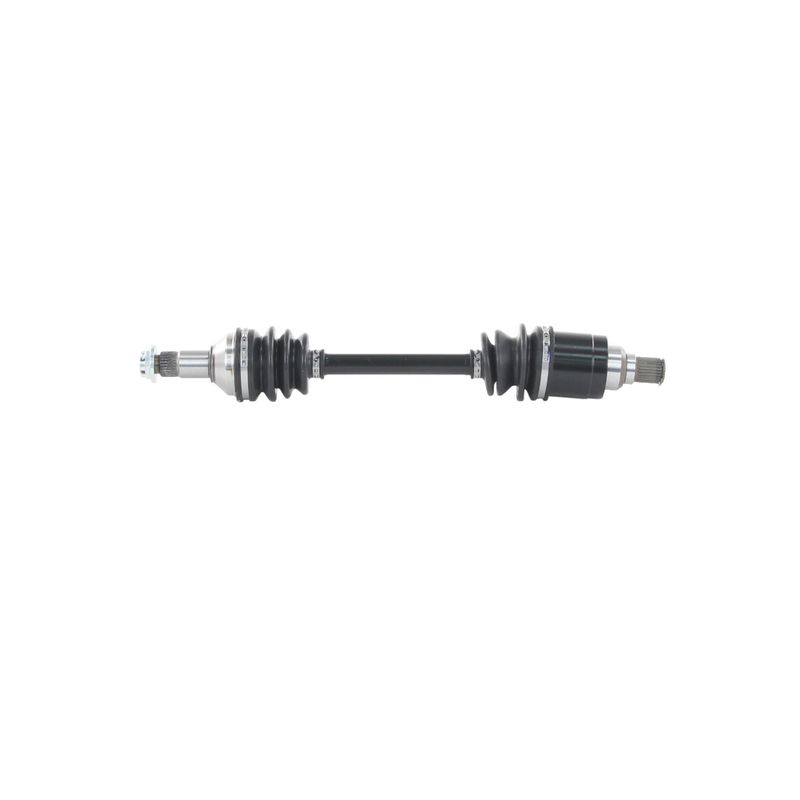

TrakMotive ARC-7041 CV Axle Assembly - Rear
| Brand | TrakMotive ARC-7041 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Ring Type | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Socket Size | 30 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 20.88 |
| Overall Compressed Length (mm) | 531 |
| Product line | ATV CV Axle Assembly |
| Fits | Arctic Cat · 12 vehicles |
Premium replacement. Built as a premium-grade CV axle assembly for rear driveline service.
Matched spline design. Uses 27-spline inboard and outboard connections for specified applications.
Included axle nut. Supplied with M22x1.5 thread, 30 mm hex, and 15 mm height.
Cross-references TrakMotive ARC-7041 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Product Overview
TrakMotive ARC-7041 is a rear CV axle assembly for select Arctic Cat ATV applications. It is built as a premium replacement axle with a conventional outboard joint and a male inboard joint for standard-duty service.
This ARC-7041 axle is listed for rear fitment on Arctic Cat Alterra models, including 2016-2021 Arctic Cat Alterra 500, 2016-2017 Arctic Cat Alterra 550 and 550 XT, 2016-2017 Arctic Cat Alterra 700 and 700 XT, 2020 Arctic Cat Alterra 700, 2021 Arctic Cat Alterra 700 EPS SE, and 2020-2021 Arctic Cat Alterra 570 EPS. It is also a fitment match for Arctic Cat ATV CV axle assembly replacement needs where the original axle uses the same spline and length specifications.
Key Features
- Premium-grade CV axle assembly for rear driveline service
- Male inboard joint with 27 inboard splines
- 27 outboard splines and conventional outboard joint design
- Overall compressed length of 20.88 in. (531 mm)
- Includes axle nut with M22x1.5 thread, 30 mm hex size, and 15 mm height
- ABS tone ring not included; ABS ring tooth count and type are listed as 0
Detailed Description
TrakMotive ARC-7041 is a rear ATV CV axle assembly engineered for select Arctic Cat Alterra models. The axle uses a 27-spline male inboard connection and a 27-spline conventional outboard joint, with an overall compressed length of 20.88 inches to match the specified application. The included axle nut is sized for M22x1.5 threads and a 30 mm hex, which helps simplify parts matching during service. This part cross-references TrakMotive ARC-7041 for the same application.
TrakMotive identifies this axle as a premium replacement and notes that the company is ISO 9001:2008 and TS 16949:2009 certified. The product is also covered by a limited one-year warranty. For Arctic Cat Alterra 700, Alterra 500, and Alterra 570 EPS service work, ARC-7041 provides a direct-fit driveline replacement when the vehicle uses the listed rear axle configuration.
What It Fixes
- Worn or noisy rear CV axle joints
- Vibration during acceleration or trail use
- Axle shaft damage from impact or overextension
- Loss of driveline engagement caused by spline wear
- Service replacement for a damaged rear axle assembly
Installation Notes and Tips
Verify rear fitment, spline count, and compressed length before installation. This axle includes an axle nut, and the application is listed without an ABS tone ring. ABS axles fit non-ABS applications unless otherwise noted, so confirm the vehicle’s original configuration before ordering. Use the part number ARC-7041 to match the correct replacement during service on Arctic Cat Alterra models.
Quality Assurance
TrakMotive manufactures this axle under ISO 9001:2008 and TS 16949:2009 certified quality systems. ARC-7041 is backed by a limited one-year warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Arctic Cat | Alterra 570 EPS | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
| 2021 | Arctic Cat | Alterra 700 EPS SE | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
| 2020 | Arctic Cat | Alterra 570 EPS | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
| 2020 | Arctic Cat | Alterra 700 | Rear | EPS Model; ATV CV Axle Assembly |
| 2017 | Arctic Cat | Alterra 500 | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
| 2017 | Arctic Cat | Alterra 700 | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
| 2017 | Arctic Cat | Alterra 700 XT | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
| 2016 | Arctic Cat | Alterra 500 XT | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
| 2016 | Arctic Cat | Alterra 550 | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
| 2016 | Arctic Cat | Alterra 550 XT | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
| 2016 | Arctic Cat | Alterra 700 | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
| 2016 | Arctic Cat | Alterra 700 XT | Rear | Standard Duty Replacement; ATV CV Axle Assembly |
