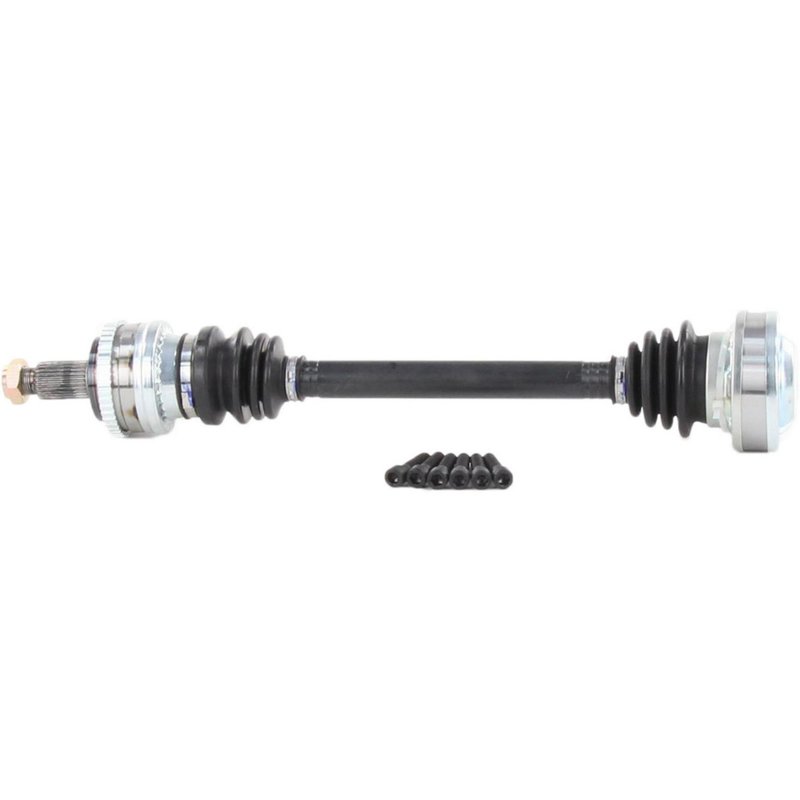

TrakMotive BM-8001 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive BM-8001 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/6 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.68 |
| Overall Compressed Length (mm) | 576 |
| Product line | CV Axle Shaft |
| Fits | BMW · 50 vehicles |
New axle shaft. Bolt-on design for straightforward replacement.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Toothed ring supports ABS-equipped applications.
Cross-references AMS Automotive 7023, Cardone New 66-9063 and Cardone Reman 60-9063 for the same application. See all 21.
BMW Rear CV Axle Shaft BM-8001
TrakMotive BM-8001 is a new rear CV axle shaft for select BMW 3 Series and M3 applications. It is built for rear left and rear right positions on covered models, with OE-style fitment details that support accurate replacement on BMW driveline repairs.
Key Features
- New CV axle shaft for rear BMW applications
- Fits rear right and rear left positions on listed vehicles
- 27 outboard splines for the wheel-end connection
- 6-bolt inboard joint with bolt-on shaft connection
- Neoprene boot material for CV joint protection
- Includes axle nut and ABS tone ring
- 48-tooth toothed ABS ring with tone ring included
- Overall compressed length: 22.68 in. (576 mm)
- Part number: BM-8001
Detailed Description
TrakMotive BM-8001 is a CV axle shaft engineered for rear BMW driveline service where precise spline count, bolt pattern, and compressed length matter. It uses a conventional outboard joint, a bolt-on inboard joint, and a spline-style shaft connection to match the listed BMW 325i, 318i, 318is, 325is, M3, and 325e applications. The axle nut is included and uses an M22 x 1.5 thread with a 32 mm hex size. This part number, BM-8001, also cross-references Cardone New 66-9063 and Cardone Reman 60-9063 for the same application.
Compatible With 1987-1993 BMW 325i, rear right and rear left; 1991-1992 BMW 318i, rear right and rear left; 1991 BMW 318is, rear right and rear left; 1987-1991 BMW 325is, rear right and rear left; 1988-1991 BMW M3, rear right and rear left; and 1984-1987 BMW 325e, rear right and rear left.
Common Repair Uses
- Restores driveline operation after a worn or noisy rear axle shaft
- Addresses clicking, vibration, or shudder from the rear CV joint area
- Replaces a damaged boot, joint, or spline connection on the axle assembly
- Supports repair of ABS-related axle service when the tone ring is required
- Helps correct axle fitment issues on BMW rear suspension service
Installation Notes and Tips
Verify rear left or rear right position before ordering, since this axle is listed for both sides on the covered BMW applications. Confirm spline count, bolt pattern, axle nut thread size, and compressed length against the original part before installation. The ABS ring is toothed and the tone ring is included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Quality Assurance
TrakMotive identifies this as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. BM-8001 is backed by a limited lifetime warranty.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 1993 | BMW | 325i | — | — | Rear Right | CV Axle Shaft |
| 1993 | BMW | 325i | — | — | Rear Left | CV Axle Shaft |
| 1992 | BMW | 318i | Convertible | — | Rear Right | CV Axle Shaft |
| 1992 | BMW | 318i | Convertible | — | Rear Left | CV Axle Shaft |
| 1992 | BMW | 325i | — | — | Rear Right | CV Axle Shaft |
| 1992 | BMW | 325i | — | — | Rear Left | CV Axle Shaft |
| 1991 | BMW | 318i | — | — | Rear Right | CV Axle Shaft |
| 1991 | BMW | 318i | — | — | Rear Left | CV Axle Shaft |
| 1991 | BMW | 318is | — | RWD | Rear Right | CV Axle Shaft |
| 1991 | BMW | 318is | — | RWD | Rear Left | CV Axle Shaft |
| 1991 | BMW | 325i | — | — | Rear Right | CV Axle Shaft |
| 1991 | BMW | 325i | — | — | Rear Left | CV Axle Shaft |
| 1991 | BMW | 325is | — | — | Rear Right | CV Axle Shaft |
| 1991 | BMW | 325is | — | — | Rear Left | CV Axle Shaft |
| 1991 | BMW | M3 | — | — | Rear Right | CV Axle Shaft |
| 1991 | BMW | M3 | — | — | Rear Left | CV Axle Shaft |
| 1990 | BMW | 325i | — | — | Rear Right | CV Axle Shaft |
| 1990 | BMW | 325i | — | — | Rear Left | CV Axle Shaft |
| 1990 | BMW | 325is | — | — | Rear Right | CV Axle Shaft |
| 1990 | BMW | 325is | — | — | Rear Left | CV Axle Shaft |
| 1990 | BMW | M3 | — | — | Rear Right | CV Axle Shaft |
| 1990 | BMW | M3 | — | — | Rear Left | CV Axle Shaft |
| 1989 | BMW | 325i | — | — | Rear Right | CV Axle Shaft |
| 1989 | BMW | 325i | — | — | Rear Left | CV Axle Shaft |
| 1989 | BMW | 325is | — | — | Rear Right | CV Axle Shaft |
| 1989 | BMW | 325is | — | — | Rear Left | CV Axle Shaft |
| 1989 | BMW | M3 | — | — | Rear Right | CV Axle Shaft |
| 1989 | BMW | M3 | — | — | Rear Left | CV Axle Shaft |
| 1988 | BMW | 325i | — | — | Rear Right | CV Axle Shaft |
| 1988 | BMW | 325i | — | — | Rear Left | CV Axle Shaft |
| 1988 | BMW | 325is | — | — | Rear Right | CV Axle Shaft |
| 1988 | BMW | 325is | — | — | Rear Left | CV Axle Shaft |
| 1988 | BMW | M3 | — | — | Rear Right | CV Axle Shaft |
| 1988 | BMW | M3 | — | — | Rear Left | CV Axle Shaft |
| 1987 | BMW | 325e | — | — | Rear Right | CV Axle Shaft |
| 1987 | BMW | 325e | — | — | Rear Left | CV Axle Shaft |
| 1987 | BMW | 325i | — | — | Rear Right | CV Axle Shaft |
| 1987 | BMW | 325i | — | — | Rear Left | CV Axle Shaft |
| 1987 | BMW | 325is | — | — | Rear Right | CV Axle Shaft |
| 1987 | BMW | 325is | — | — | Rear Left | CV Axle Shaft |
| 1986 | BMW | 325e | — | — | Rear Right | CV Axle Shaft |
| 1986 | BMW | 325e | — | — | Rear Left | CV Axle Shaft |
| 1985 | BMW | 318i | — | — | Rear Right | CV Axle Shaft |
| 1985 | BMW | 318i | — | — | Rear Left | CV Axle Shaft |
| 1985 | BMW | 325e | — | — | Rear Right | CV Axle Shaft |
| 1985 | BMW | 325e | — | — | Rear Left | CV Axle Shaft |
| 1984 | BMW | 318i | — | — | Rear Right | CV Axle Shaft |
| 1984 | BMW | 318i | — | — | Rear Left | CV Axle Shaft |
| 1984 | BMW | 325e | — | — | Rear Right | CV Axle Shaft |
| 1984 | BMW | 325e | — | — | Rear Left | CV Axle Shaft |
