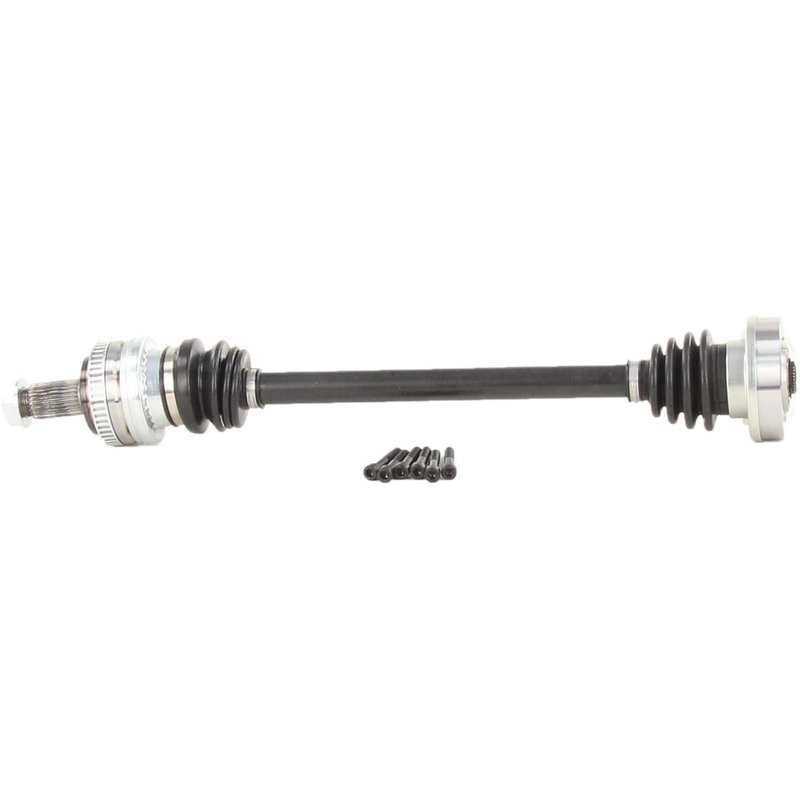

TrakMotive BM-8003 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive BM-8003 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1/2 |
| Axle Nut Height (mm) | 13.2 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/9 |
| Axle Nut Length (mm) | 39.3 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/4 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 2/7 |
| Inboard Bolt Length (mm) | 58 |
| Inboard Bolt Thread Size | M8*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.41 |
| Overall Compressed Length (mm) | 620 |
| Product line | CV Axle Shaft |
| Fits | BMW · 30 vehicles |
Bolt-on design. Simplifies installation with a conventional shaft connection.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Built with a 48-tooth window ring for ABS applications.
Cross-references Cardone Reman 60-9120, TrakMotive BM-8003 and 33211227032 for the same application. See all 5.
BMW 318i/318is Rear CV Axle Shaft
TrakMotive BM-8003 is a new CV axle shaft for rear left and rear right applications on select BMW 318i and 318is models. It is built for direct replacement service on 1992-1999 BMW 318is and 1992-1998 BMW 318i rear axle positions.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: BM-8003
- New axle shaft assembly
- Overall compressed length: 24.41 in. (620 mm)
- Outboard spline count: 27
- ABS tone ring included with 48-tooth window-style ring
- Neoprene boot material
- Inboard joint type: bolt-on
- Outboard joint type: conventional
- Axle nut included; M24 x 1.5 thread, 34 mm hex
Product Details
This TrakMotive CV axle shaft is engineered for rear driveline service on BMW 318i and BMW 318is models with the listed rear left and rear right fitments. The BM-8003 uses a bolt-on inboard connection, a conventional outboard joint, and a 27-spline outboard design to match the specified application. It also includes an ABS tone ring with a 48-tooth window pattern, which is relevant for vehicles equipped with ABS-related axle requirements. TrakMotive identifies this part as a new replacement component and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with application-specific dimensions and connection styles that support OE-style service on the correct BMW rear axle position. This part cross-references Cardone Reman 60-9120 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn rear CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Noise from excessive driveline play at the rear axle
- ABS-related axle replacement needs on listed BMW applications
Installation Notes
Verify rear left or rear right position, spline count, axle nut thread size, and overall length before installation. Confirm the vehicle’s ABS configuration and compare the existing axle’s connection style, bolt pattern, and tone ring details to the specifications listed for BM-8003. For BMW 318i and BMW 318is rear axle service, matching the exact year and position is essential for proper fitment.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
- Fits 1992-1999 BMW 318is, rear right
- Fits 1992-1999 BMW 318is, rear left
- Fits 1992-1998 BMW 318i, rear right
- Fits 1992-1998 BMW 318i, rear left
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 1999 | BMW | 318is | — | RWD | Rear Right | CV Axle Shaft |
| 1999 | BMW | 318is | — | RWD | Rear Left | CV Axle Shaft |
| 1998 | BMW | 318i | — | RWD | Rear Right | CV Axle Shaft |
| 1998 | BMW | 318i | — | RWD | Rear Left | CV Axle Shaft |
| 1998 | BMW | 318is | — | RWD | Rear Right | CV Axle Shaft |
| 1998 | BMW | 318is | — | RWD | Rear Left | CV Axle Shaft |
| 1997 | BMW | 318i | — | RWD | Rear Right | CV Axle Shaft |
| 1997 | BMW | 318i | — | RWD | Rear Left | CV Axle Shaft |
| 1997 | BMW | 318is | — | RWD | Rear Right | CV Axle Shaft |
| 1997 | BMW | 318is | — | RWD | Rear Left | CV Axle Shaft |
| 1996 | BMW | 318i | — | RWD | Rear Right | CV Axle Shaft |
| 1996 | BMW | 318i | — | RWD | Rear Left | CV Axle Shaft |
| 1996 | BMW | 318is | — | RWD | Rear Right | CV Axle Shaft |
| 1996 | BMW | 318is | — | RWD | Rear Left | CV Axle Shaft |
| 1995 | BMW | 318i | — | RWD | Rear Right | CV Axle Shaft |
| 1995 | BMW | 318i | — | RWD | Rear Left | CV Axle Shaft |
| 1995 | BMW | 318is | — | RWD | Rear Right | CV Axle Shaft |
| 1995 | BMW | 318is | — | RWD | Rear Left | CV Axle Shaft |
| 1994 | BMW | 318i | — | RWD | Rear Right | CV Axle Shaft |
| 1994 | BMW | 318i | — | RWD | Rear Left | CV Axle Shaft |
| 1994 | BMW | 318is | — | RWD | Rear Right | CV Axle Shaft |
| 1994 | BMW | 318is | — | RWD | Rear Left | CV Axle Shaft |
| 1993 | BMW | 318i | — | RWD | Rear Right | CV Axle Shaft |
| 1993 | BMW | 318i | — | RWD | Rear Left | CV Axle Shaft |
| 1993 | BMW | 318is | — | RWD | Rear Right | CV Axle Shaft |
| 1993 | BMW | 318is | — | RWD | Rear Left | CV Axle Shaft |
| 1992 | BMW | 318i | Sedan | — | Rear Right | CV Axle Shaft |
| 1992 | BMW | 318i | Sedan | — | Rear Left | CV Axle Shaft |
| 1992 | BMW | 318is | — | RWD | Rear Right | CV Axle Shaft |
| 1992 | BMW | 318is | — | RWD | Rear Left | CV Axle Shaft |
