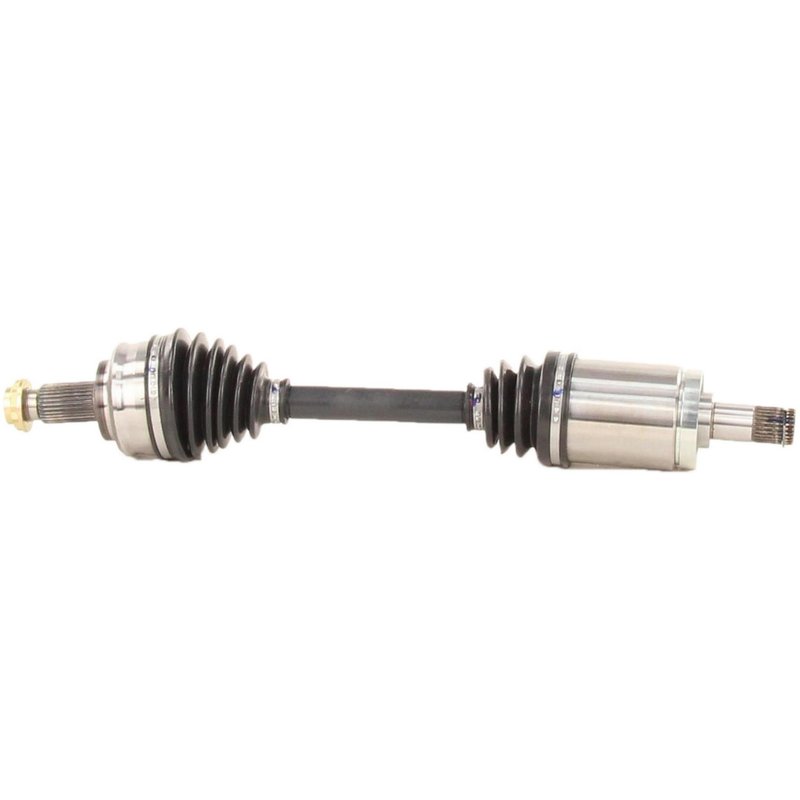

TrakMotive BM-8007 CV Axle Shaft - Front Left
| Brand | TrakMotive BM-8007 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/8 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.03 |
| Overall Compressed Length (mm) | 585 |
| Product line | CV Axle Shaft |
| Fits | BMW · 7 vehicles |
New axle shaft. Freshly built for dependable driveline replacement.
Neoprene boot. Helps protect the joint from wear and contamination.
Includes axle nut. Ready with the hardware specified for installation.
Cross-references Cardone New 66-9255, Cardone Reman 60-9255 and TrakMotive BM-8007 for the same application. See all 15.
BMW X5 Front Left CV Axle Shaft
TrakMotive BM-8007 is a new front left CV axle shaft for select BMW X5 applications. It is built for 2000 and 2001-2006 BMW X5 models in the front left position, including the 2000 vehicle built from 4/2000. This TrakMotive CV axle shaft is a direct driveline replacement for restoring smooth power transfer at the front wheel.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: BM-8007
- New replacement axle shaft
- Front left position
- 27 inboard splines and 30 outboard splines
- Male inboard shaft connection style
- Conventional outboard joint type
- Neoprene boot material
- ABS tone ring not included
- Axle nut included with stake locking type
- Axle nut thread size: M27 x 1.5
- Overall compressed length: 23.03 in. (585 mm)
Product Details
TrakMotive BM-8007 is a CV axle shaft for BMW X5 front left applications. The axle uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support driveline articulation in the front suspension. The included axle nut uses a hex head and stake-style locking design, with a 35.5 mm hex size and M27 x 1.5 thread specification. This part cross-references Cardone New 66-9255 and Cardone Reman 60-9255 for the same application.
Compatible With 2001-2006 BMW X5, front left, and 2000 BMW X5, front left, from 4/2000. Use BM-8007 when replacing a worn or damaged BMW X5 front left CV axle shaft and when matching the listed spline count and compressed length is required. TrakMotive BM-8007 is also identified by the part number BM-8007 in catalog and interchange references.
Common Issues This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration during acceleration caused by axle wear
- Grease leakage from a damaged axle boot
- Excessive driveline play at the front left axle
- Noise from a failing front axle assembly
Installation Notes
Verify spline count, axle length, nut thread size, and front left fitment before installation. Inspect the hub, seals, and surrounding suspension components for wear before installing the new axle. Follow BMW service procedures for axle nut staking and torque specifications, and confirm ABS-related requirements since this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive states this CV axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The BM-8007 is a new part and is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | BMW | X5 | Automatic | 4.4L | V8 | Front Left | CV Axle Shaft |
| 2005 | BMW | X5 | — | — | — | Front Left | CV Axle Shaft |
| 2004 | BMW | X5 | — | — | — | Front Left | CV Axle Shaft |
| 2003 | BMW | X5 | — | — | — | Front Left | CV Axle Shaft |
| 2002 | BMW | X5 | — | — | — | Front Left | CV Axle Shaft |
| 2001 | BMW | X5 | — | — | — | Front Left | CV Axle Shaft |
| 2000 | BMW | X5 | — | — | — | Front Left | From 4/2000; CV Axle Shaft |
