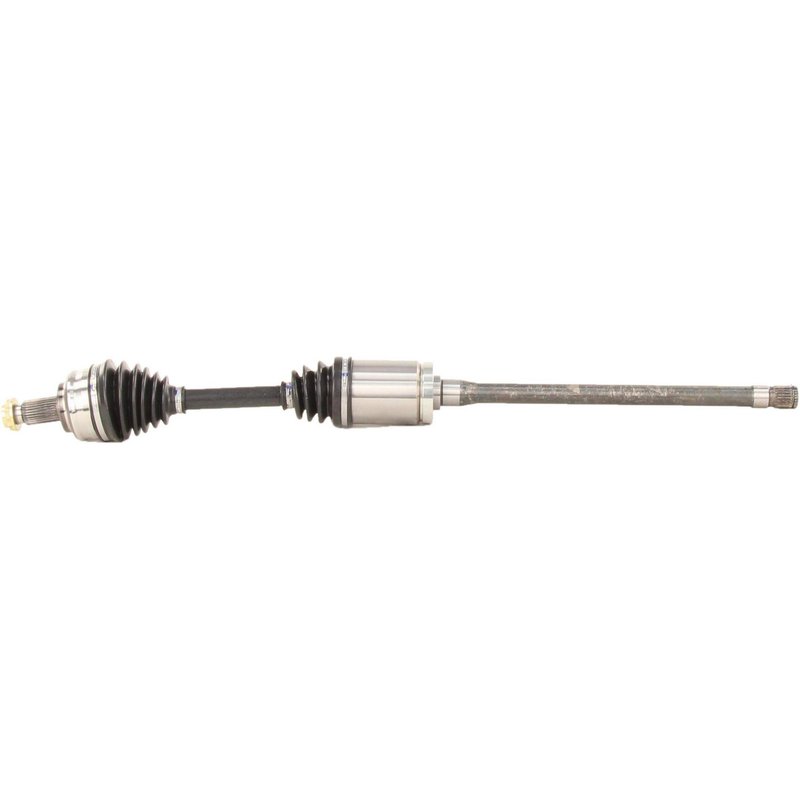

TrakMotive BM-8008 CV Axle Shaft - Front Right
| Brand | TrakMotive BM-8008 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/8 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 38.11 |
| Overall Compressed Length (mm) | 968 |
| Product line | CV Axle Shaft |
| Fits | BMW · 7 vehicles |
New axle shaft. Built with neoprene boot material for dependable CV joint protection.
OE-style fit. Includes the axle nut for a straightforward replacement.
Certified manufacturing. Produced by an ISO 9001 and TS 16949 certified company.
Cross-references Atlantic Automotive Engineering 3331N, Cardone New 66-9256 and Cardone Reman 60-9256 for the same application. See all 16.
BMW X5 Front Right CV Axle Shaft
Restore driveline performance with the TrakMotive CV Axle Shaft BM-8008 for the front right position on select BMW X5 models. This new axle is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for a direct replacement on listed applications.
Key Features
- TrakMotive CV Axle Shaft, part number BM-8008
- Fits 2001-2006 BMW X5, front right
- Also fits 2000 BMW X5, front right, from 4/2000
- New axle shaft with 27 inboard splines and 30 outboard splines
- Neoprene boot material for durable joint protection
- Includes axle nut with M27 x 1.5 thread, 35.5 mm hex size, and stake locking type
- No ABS tone ring included
- Overall compressed length: 38.11 in. (968 mm)
Product Details
The TrakMotive BM-8008 CV axle shaft is a direct-fit driveline replacement for BMW X5 front right applications listed above. It is engineered as a new assembly with a male inboard shaft connection, conventional outboard shaft connection, and the specified spline counts to match the original drivetrain interface. TrakMotive positions this CV axle shaft line for service replacement needs where a worn or noisy axle has affected smooth power transfer in the BMW X5.
This part cross-references Cardone New 66-9256 and Atlantic Automotive Engineering 3331N for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns
- Vibration felt through the drivetrain under acceleration
- Grease leakage from a damaged CV boot
- Excessive play from a worn front axle assembly
- Loss of smooth power delivery to the front right wheel
Installation Notes
Verify vehicle build date before ordering for 2000 BMW X5 applications, since this axle applies from 4/2000. Confirm spline count, axle nut thread size, and overall length against the original part before installation. The included axle nut uses a stake-style locking design and a 35.5 mm hex size.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | BMW | X5 | Automatic | 4.4L | V8 | Front Right | CV Axle Shaft |
| 2005 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2004 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2003 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2002 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2001 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2000 | BMW | X5 | — | — | — | Front Right | From 4/2000; CV Axle Shaft |
| No rows match your filter. | |||||||
