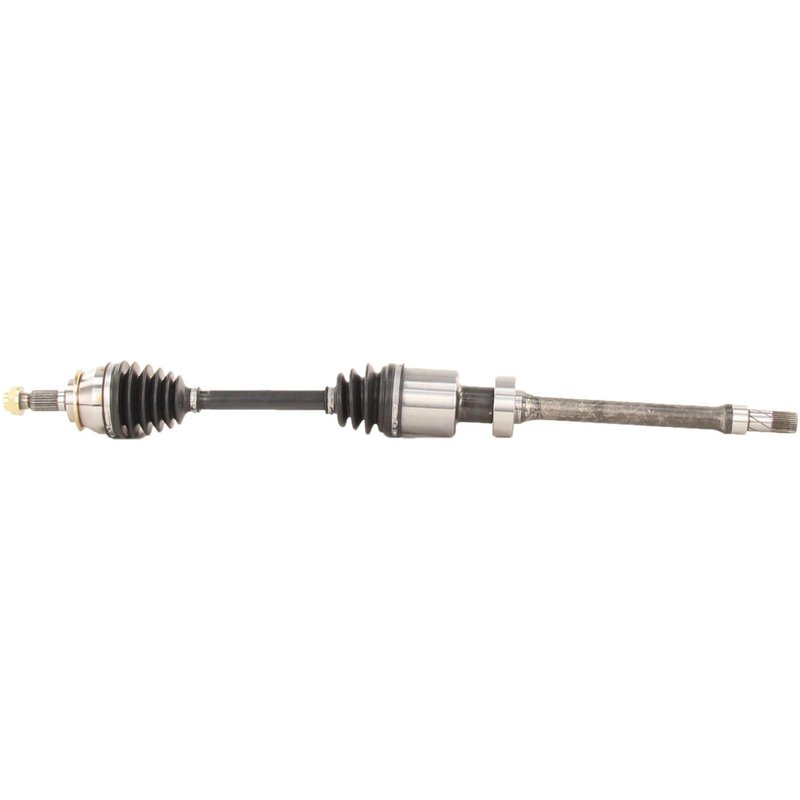

TrakMotive BM-8014 CV Axle Shaft - Front Right
| Brand | TrakMotive BM-8014 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 36.1 |
| Overall Compressed Length (mm) | 917 |
| Product line | CV Axle Shaft |
| Fits | Mini · 7 vehicles |
New shaft assembly. Fresh replacement for driveline service.
Neoprene boot material. Helps resist wear in demanding conditions.
Axle nut included. Conveniently supplied for a complete install.
Cross-references Cardone New 66-9280, Cardone Reman 60-9280 and TrakMotive BM-8014 for the same application. See all 12.
CV Axle Shaft for Mini Cooper Front Right
The TrakMotive BM-8014 CV axle shaft is a new driveline replacement for the front right position on 2002-2008 Mini Cooper models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct service on the specified application.
Key Features
- Fits 2002-2008 Mini Cooper, front right
- New CV axle shaft from TrakMotive
- Overall compressed length: 36.1 in. (917 mm)
- 34 inboard splines and 26 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with M22 x 1.5 thread size
- Hex axle nut head, 31.8 mm hex size, stake locking type
- No ABS tone ring included
Product Details
The TrakMotive CV Axle Shaft line focuses on replacement driveline components for passenger vehicles that need accurate fitment and dependable geometry. Part number BM-8014 is specified for the front right side of the Mini Cooper and matches the listed spline counts, shaft connection styles, and compressed length for the application. This part cross-references Cardone New 66-9280 and Cardone Reman 60-9280 for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that expose the joint to contamination
- Excessive play in the front right driveline assembly
- Noise caused by spline or joint wear on the Mini Cooper axle
Installation Notes and Tips
Verify the front right position, spline count, and axle length before installation. Confirm the vehicle uses the listed 40 mm I.B. seal diameter noted in fitment, and compare the axle nut thread size and hex dimensions to the original hardware. The BM-8014 is listed for 2002-2008 Mini Cooper applications and should be matched to the exact driveline configuration before service.
Quality Assurance
TrakMotive identifies this axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. Manufacturer information also states a limited lifetime warranty.
| Year | Make | Model | Submodel | Body Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Mini | Cooper | John Cooper Works | — | Manual | Front Right | 40mm I.B. Seal Diameter; CV Axle Shaft |
| 2007 | Mini | Cooper | S Chili | Convertible | Manual | Front Right | 40mm I.B. Seal Diameter; CV Axle Shaft |
| 2006 | Mini | Cooper | — | — | Manual | Front Right | 40mm I.B. Seal Diameter; CV Axle Shaft |
| 2005 | Mini | Cooper | — | — | Manual | Front Right | 40mm I.B. Seal Diameter; CV Axle Shaft |
| 2004 | Mini | Cooper | — | — | Manual | Front Right | 40mm I.B. Seal Diameter; CV Axle Shaft |
| 2003 | Mini | Cooper | — | — | Manual | Front Right | 40mm I.B. Seal Diameter; CV Axle Shaft |
| 2002 | Mini | Cooper | — | — | Manual | Front Right | 40mm I.B. Seal Diameter; CV Axle Shaft |
