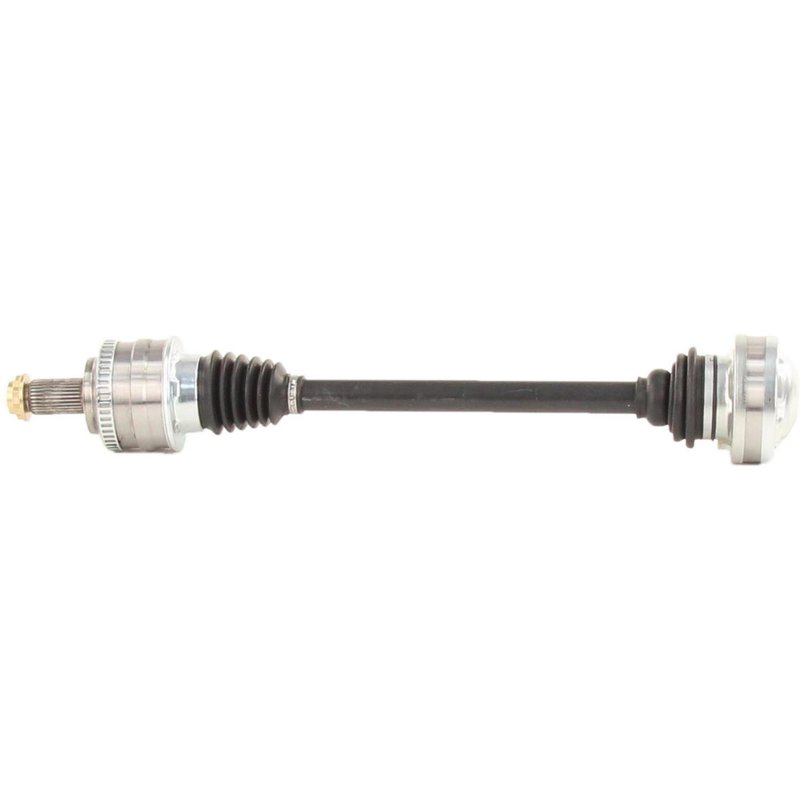

TrakMotive BM-8015 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive BM-8015 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/8 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/6 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.47 |
| Overall Compressed Length (mm) | 647 |
| Product line | CV Axle Shaft |
| Fits | BMW · 20 vehicles |
Bolt-on design. Simplifies installation with matching inboard connection style.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Ready for applications that use a window-style ring.
Cross-references TrakMotive BM-8015, 60-9108 and 60-9394 for the same application. See all 9.
BMW CV Axle Shaft for Rear Applications
TrakMotive BM-8015 is a new CV axle shaft for select BMW 850Ci and 840Ci rear left and rear right applications. It is built with a neoprene boot, a conventional outboard joint, and a bolt-on inboard connection for direct driveline service on the listed vehicles.
Key Features
- Fits 1993-1998 BMW 850Ci, rear right and rear left
- Fits 1994-1997 BMW 840Ci, rear right and rear left
- New CV axle shaft for driveline replacement service
- Neoprene boot material for joint protection
- Conventional outboard joint and bolt-on inboard joint design
- ABS tone ring included; 48-tooth window-style ABS ring
- Axle nut included with M27 x 1.5 thread, stake locking type
- Overall compressed length: 25.47 in. (647 mm)
- 30 outboard splines and 6 inboard bolt holes
Product Details
TrakMotive BM-8015 is a CV axle shaft engineered for rear axle service on BMW 8 Series models listed above. The axle uses a 30-spline outboard connection, a 6-bolt inboard bolt-on joint, and a 35.5 mm axle nut hex size. It also includes a window-style ABS tone ring with 48 teeth, which supports vehicles equipped for ABS-related wheel speed sensing. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restoring drivetrain function after CV joint wear
- Addressing clicking or popping noises during turns
- Replacing a damaged axle boot or contaminated joint
- Correcting vibration caused by axle shaft wear
- Servicing rear axle driveline issues on BMW 850Ci and 840Ci models
Installation Notes
Verify rear left or rear right position before installation. Confirm axle nut thread size, spline count, and ABS ring style against the original part. The manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted. Use proper torque procedures and inspect mating surfaces, hub condition, and fasteners during installation. BM-8015 is listed for 1993-1998 BMW 850Ci and 1994-1997 BMW 840Ci rear applications.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1998 | BMW | 850Ci | RWD | Rear Right | CV Axle Shaft |
| 1998 | BMW | 850Ci | RWD | Rear Left | CV Axle Shaft |
| 1997 | BMW | 840Ci | RWD | Rear Right | CV Axle Shaft |
| 1997 | BMW | 840Ci | RWD | Rear Left | CV Axle Shaft |
| 1997 | BMW | 850Ci | RWD | Rear Right | CV Axle Shaft |
| 1997 | BMW | 850Ci | RWD | Rear Left | CV Axle Shaft |
| 1996 | BMW | 840Ci | RWD | Rear Right | CV Axle Shaft |
| 1996 | BMW | 840Ci | RWD | Rear Left | CV Axle Shaft |
| 1996 | BMW | 850Ci | RWD | Rear Right | CV Axle Shaft |
| 1996 | BMW | 850Ci | RWD | Rear Left | CV Axle Shaft |
| 1995 | BMW | 840Ci | RWD | Rear Right | CV Axle Shaft |
| 1995 | BMW | 840Ci | RWD | Rear Left | CV Axle Shaft |
| 1995 | BMW | 850Ci | RWD | Rear Right | CV Axle Shaft |
| 1995 | BMW | 850Ci | RWD | Rear Left | CV Axle Shaft |
| 1994 | BMW | 840Ci | RWD | Rear Right | CV Axle Shaft |
| 1994 | BMW | 840Ci | RWD | Rear Left | CV Axle Shaft |
| 1994 | BMW | 850Ci | RWD | Rear Right | CV Axle Shaft |
| 1994 | BMW | 850Ci | RWD | Rear Left | CV Axle Shaft |
| 1993 | BMW | 850Ci | RWD | Rear Right | CV Axle Shaft |
| 1993 | BMW | 850Ci | RWD | Rear Left | CV Axle Shaft |
