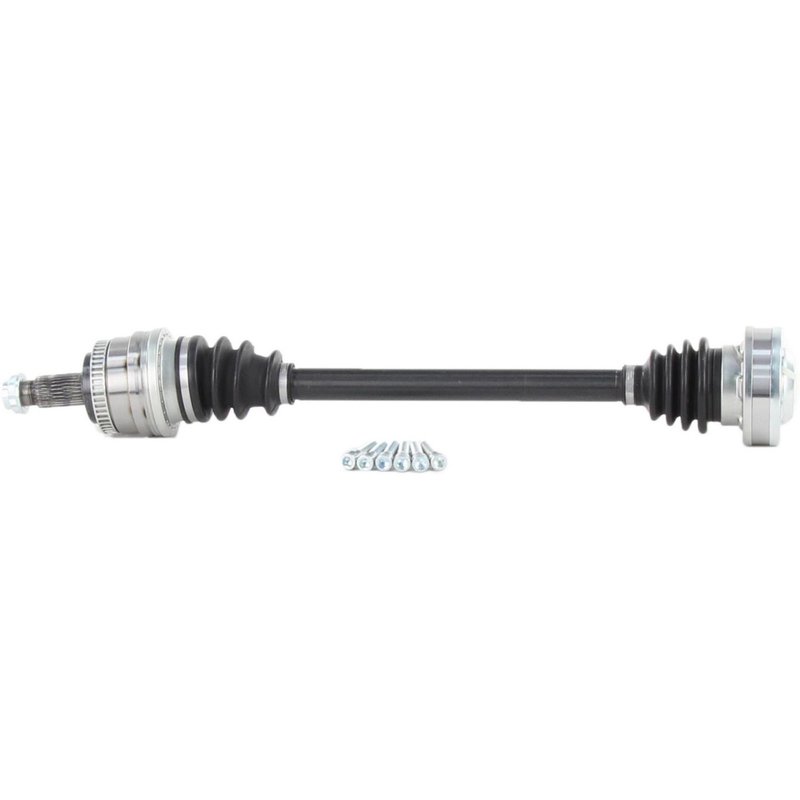

TrakMotive BM-8022 CV Axle Shaft - Rear Right
| Brand | TrakMotive BM-8022 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/3 |
| Axle Nut Height (mm) | 17 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 29.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 33.8 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/6 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.38 |
| Overall Compressed Length (mm) | 670 |
| Product line | CV Axle Shaft |
| Fits | BMW · 30 vehicles |
OE-style replacement. New CV axle shaft with bolt-on connections for straightforward installation.
Neoprene boot. Flexible material helps protect the joint from wear and contamination.
ABS tone ring included. Window-style ring with 48 teeth for integrated wheel speed sensing.
Cross-references Cardone New 66-9272, Cardone Reman 60-9272 and TrakMotive BM-8022 for the same application. See all 14.
BMW Rear Right CV Axle Shaft
TrakMotive BM-8022 is a new rear right CV axle shaft for select BMW applications, including 1998-2008 BMW 323i, 323Ci, 323is, 325i, 325Ci, 328i, 328Ci, 328is, 330Ci, and Z4 models. It is built for direct replacement service on the rear right position and is specified for standard-duty replacement use where the original axle has worn or failed.
The TrakMotive CV Axle Shaft line focuses on application-specific driveline replacement parts, and BM-8022 follows that approach with OE-style fitment details, ABS tone ring provisions, and the correct shaft connection style for listed BMW rear applications.
- New CV axle shaft for rear right BMW driveline service
- Overall compressed length: 26.38 in. (670 mm)
- 27 outboard splines for listed applications
- 6-bolt inboard joint with bolt-on shaft connection
- ABS tone ring included; 48-tooth window-style ring
- Neoprene boot material
- Includes axle nut; M24 x 1.5 thread, 29.5 mm hex size
- Cross-reference example: Cardone New 66-9272
Fitment Details
Fits 2006-2008 BMW Z4, rear right. Fits 2003-2005 BMW Z4, rear right. Fits 2001-2006 BMW 325Ci, rear right. Fits 2001-2005 BMW 325i, rear right. Fits 2006 BMW 325i, rear right, thru 12/05. Fits 2006 BMW 330Ci, rear right. Fits 2000 BMW 323Ci, rear right. Fits 1999-2000 BMW 323i, rear right. Fits 1998-2000 BMW 328i, rear right. Fits 2000 BMW 328Ci, rear right. Fits 1998-1999 BMW 323is, rear right. Fits 1999 BMW 328is, rear right.
What This Axle Shaft Helps Address
- Clicking or popping from a worn CV joint during acceleration or turning
- Vibration from a damaged or out-of-balance rear axle assembly
- Grease leakage from a torn or deteriorated axle boot
- Noise from excessive play in the rear right driveline
- ABS warning concerns when the original tone ring is damaged or missing
Installation Notes
Verify rear right fitment by year, model, and notes before installation. This axle uses a bolt-on inboard joint and conventional outboard connection, so matching the original shaft configuration is important for proper installation. Confirm axle nut thread size, hex size, and ABS ring style against the removed part before assembly. Professional installation and final torque verification are recommended for BMW 323i, 325Ci, 328i, and Z4 rear axle replacement jobs.
Quality Assurance
TrakMotive BM-8022 is a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2008 | BMW | Z4 | — | Manual | 3.0L | L6 | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2007 | BMW | Z4 | — | Manual | 3.0L | L6 | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2006 | BMW | 325Ci | — | — | — | — | Rear Right | CV Axle Shaft |
| 2006 | BMW | 325i | — | — | — | — | Rear Right | Thru 12/05; CV Axle Shaft |
| 2006 | BMW | 330Ci | Coupe | — | — | — | Rear Right | CV Axle Shaft |
| 2006 | BMW | 330Ci | Convertible | — | — | — | Rear Right | CV Axle Shaft |
| 2006 | BMW | Z4 | — | Manual | 3.0L | L6 | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2005 | BMW | 325Ci | — | — | — | — | Rear Right | CV Axle Shaft |
| 2005 | BMW | 325i | — | — | — | — | Rear Right | CV Axle Shaft |
| 2005 | BMW | Z4 | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 2004 | BMW | 325Ci | — | — | — | — | Rear Right | CV Axle Shaft |
| 2004 | BMW | 325i | — | — | — | — | Rear Right | CV Axle Shaft |
| 2004 | BMW | Z4 | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 2003 | BMW | 325Ci | — | — | — | — | Rear Right | CV Axle Shaft |
| 2003 | BMW | 325i | — | — | — | — | Rear Right | CV Axle Shaft |
| 2003 | BMW | Z4 | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 2002 | BMW | 325Ci | — | — | — | — | Rear Right | CV Axle Shaft |
| 2002 | BMW | 325i | — | — | — | — | Rear Right | CV Axle Shaft |
| 2001 | BMW | 325Ci | — | — | — | — | Rear Right | CV Axle Shaft |
| 2001 | BMW | 325i | — | — | — | — | Rear Right | CV Axle Shaft |
| 2000 | BMW | 323Ci | — | — | — | — | Rear Right | CV Axle Shaft |
| 2000 | BMW | 323i | — | — | — | — | Rear Right | CV Axle Shaft |
| 2000 | BMW | 328Ci | — | — | — | — | Rear Right | CV Axle Shaft |
| 2000 | BMW | 328i | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1999 | BMW | 323i | Sedan | — | — | — | Rear Right | CV Axle Shaft |
| 1999 | BMW | 323is | — | — | — | — | Rear Right | CV Axle Shaft |
| 1999 | BMW | 328i | Sedan | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1999 | BMW | 328is | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1998 | BMW | 323is | — | — | — | — | Rear Right | CV Axle Shaft |
| 1998 | BMW | 328i | Sedan | Automatic | — | — | Rear Right | CV Axle Shaft |
