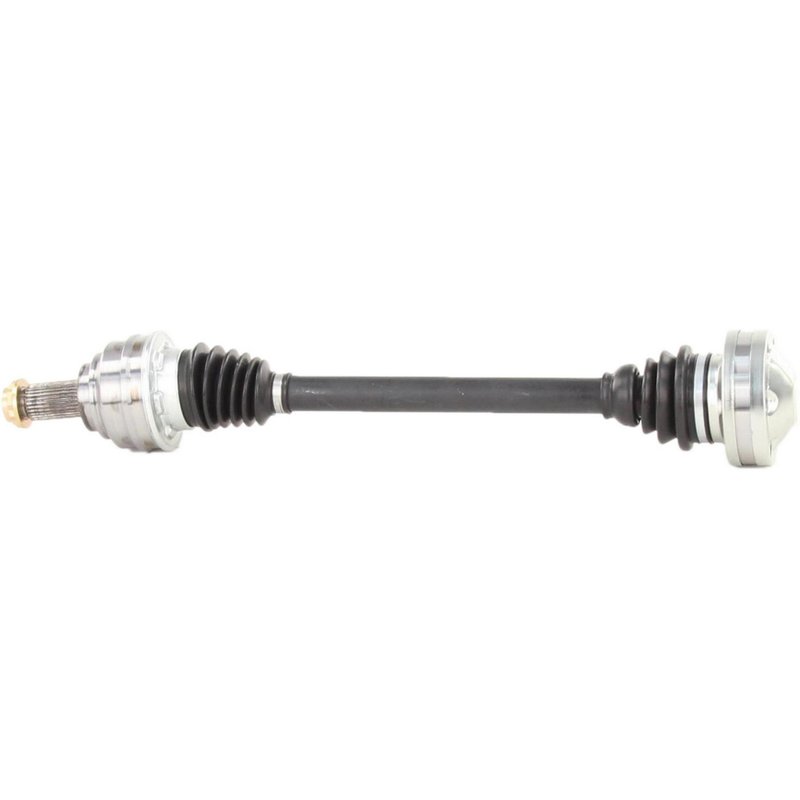

TrakMotive BM-8028 CV Axle Shaft - Rear Left or Rear Right
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive BM-8028 CV Axle Shaft - Rear Left or Rear Right

Brand TrakMotive BM-8028
Position Rear Left
Abs Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) 5/8
Axle Nut Height (mm) 16
Axle Nut Hex Size (in) 1 2/5
Axle Nut Hex Size (mm) 35.5
Axle Nut Included Yes
Axle Nut Length (in) 1 3/5
Axle Nut Length (mm) 41
Axle Nut Locking Type Stake
Axle Nut Thread Size M27*1.5
Boot Material Neoprene
Inboard Joint Type Bolt-On
Inboard Shaft Connection Style Bolt-On
New Or Remanufactured New
Number Of Outboard Splines 30
Outboard Joint Type Conventional
Outboard Shaft Connection Style Conventional
Overall Compressed Length (in) 25.2
Overall Compressed Length (mm) 640
Product line CV Axle Shaft
Fits BMW · 28 vehicles

New part. Freshly manufactured CV axle shaft for dependable replacement.

Bolt-on connection. Inboard joint and shaft connection simplify installation.

Neoprene boot. Durable boot material helps protect the joint assembly.

Cross-references TrakMotive BM-8028, 60-9415 and 306R for the same application. See all 5.

$107.27Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $107.27
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

BMW X5 Rear CV Axle Shaft

TrakMotive BM-8028 is a new rear CV axle shaft for select 2001-2006 BMW X5 applications. It is built for rear left and rear right positions and includes the axle nut for a direct replacement on the specified driveline setup.

Key Features

  • Brand: TrakMotive CV Axle Shaft
  • Part number: BM-8028
  • Fits 2001-2006 BMW X5, rear right
  • Fits 2001-2006 BMW X5, rear left
  • New axle shaft construction
  • Overall compressed length: 25.2 in. (640 mm)
  • Neoprene boot material
  • Inboard joint type: bolt-on
  • Outboard joint type: conventional
  • 30 outboard splines
  • Axle nut included; M27 x 1.5 thread, stake-lock type
  • No ABS tone ring included

Product Details

This TrakMotive CV axle shaft is engineered for BMW X5 rear driveline service where a worn or damaged axle needs replacement. The BM-8028 uses a bolt-on inboard shaft connection, a conventional outboard shaft connection, and a neoprene boot to support the joint assembly. It is listed for both rear left and rear right positions on 2001-2006 BMW X5 models, making it a direct-fit option for the specified application. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

  • Clicking or popping noises during acceleration or turning
  • Vibration from a worn rear axle assembly
  • Grease leakage from a damaged CV boot
  • Excessive play in the rear driveline
  • Noise caused by a failing axle shaft or joint

Installation Notes

Verify rear left or rear right placement before installation on the BMW X5. Confirm axle nut thread size, hex size, and stake-lock style during service, and inspect mating hub and differential surfaces for wear before assembly. Because this axle is specified without an ABS tone ring, confirm the vehicle’s rear axle configuration matches the listing before ordering. Part number BM-8028 should be matched to the vehicle by year, model, and position.

Quality Assurance

TrakMotive identifies this axle shaft as a new replacement part and states that its manufacturing is supported by ISO 9001:1007 and TS 16949:2009 certified company processes. The BM-8028 is also backed by a limited lifetime warranty.

Related reading

This part fits 28 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelTransmissionLitersCylindersPositionNotes
2006BMWX5—4.8LV8Rear RightCV Axle Shaft
2006BMWX5—4.8LV8Rear LeftCV Axle Shaft
2006BMWX5Manual4.4LV8Rear RightCV Axle Shaft
2006BMWX5Manual4.4LV8Rear LeftCV Axle Shaft
2006BMWX5Manual3.0LL6Rear RightCV Axle Shaft
2006BMWX5Manual3.0LL6Rear LeftCV Axle Shaft
2005BMWX5—4.8LV8Rear RightCV Axle Shaft
2005BMWX5—4.8LV8Rear LeftCV Axle Shaft
2005BMWX5—4.4LV8Rear RightCV Axle Shaft
2005BMWX5—4.4LV8Rear LeftCV Axle Shaft
2005BMWX5Manual3.0LL6Rear RightCV Axle Shaft
2005BMWX5Manual3.0LL6Rear LeftCV Axle Shaft
2004BMWX5—4.8LV8Rear RightCV Axle Shaft
2004BMWX5—4.8LV8Rear LeftCV Axle Shaft
2004BMWX5—4.4LV8Rear RightCV Axle Shaft
2004BMWX5—4.4LV8Rear LeftCV Axle Shaft
2004BMWX5Manual3.0LL6Rear RightCV Axle Shaft
2004BMWX5Manual3.0LL6Rear LeftCV Axle Shaft
2003BMWX5—4.6LV8Rear RightCV Axle Shaft
2003BMWX5—4.6LV8Rear LeftCV Axle Shaft
2003BMWX5Manual3.0LL6Rear RightCV Axle Shaft
2003BMWX5Manual3.0LL6Rear LeftCV Axle Shaft
2002BMWX5—4.6LV8Rear RightCV Axle Shaft
2002BMWX5—4.6LV8Rear LeftCV Axle Shaft
2002BMWX5Manual3.0LL6Rear RightCV Axle Shaft
2002BMWX5Manual3.0LL6Rear LeftCV Axle Shaft
2001BMWX5Manual3.0LL6Rear RightCV Axle Shaft
2001BMWX5Manual3.0LL6Rear LeftCV Axle Shaft
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — BM-802860-9415306R320R40706052
