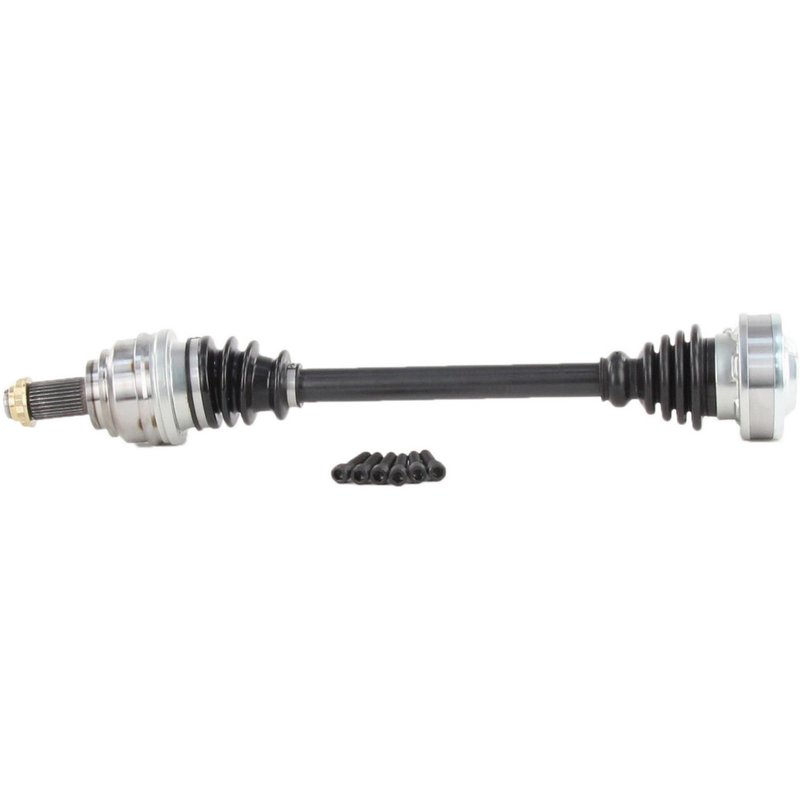

TrakMotive BM-8029 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive BM-8029 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/8 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/6 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.35 |
| Overall Compressed Length (mm) | 644 |
| Product line | CV Axle Shaft |
| Fits | BMW · 20 vehicles |
New axle shaft. Built as a bolt-on replacement with a conventional outboard connection.
Neoprene boot. Helps resist wear while keeping the joint protected.
Includes axle nut. Stake-lock design for a secure, ready-to-install fit.
Cross-references Cardone New 66-9615, TrakMotive BM-8029 and 304R for the same application. See all 8.
BMW X5 Rear CV Axle Shaft
Restore drivetrain performance with this TrakMotive CV axle shaft for rear BMW X5 applications. Part number BM-8029 is a new axle assembly built for 2000-2006 BMW X5 rear right and rear left positions, with fitment coverage for the years listed below.
- Fits 2000-2006 BMW X5, rear right
- Fits 2000-2006 BMW X5, rear left
- New CV axle shaft for rear driveline service
- Overall compressed length: 25.35 in. (644 mm)
- Outboard joint type: conventional
- Inboard joint type: bolt-on with 6 bolt holes
- Boot material: neoprene
- Axle nut included; M27 x 1.5 thread, stake locking type
- ABS tone ring not included
Product Details
TrakMotive BM-8029 is a CV axle shaft for BMW X5 rear axle service. It uses a conventional outboard joint and a bolt-on inboard connection with six inboard shaft bolts, matching the listed rear right and rear left applications. The axle includes a hex axle nut and is built as a new replacement part, not remanufactured. This part cross-references Cardone New 66-9615 for the same application.
For shoppers searching for a BMW X5 rear CV axle shaft, rear axle replacement, or BM-8029 fitment, this part is listed for 2000-2006 BMW X5 models in both rear positions. The axle’s 30 outboard splines, neoprene boot, and 25.35-inch compressed length are key specifications to verify during service.
Common Repair Symptoms
- Clicking or popping from the rear axle area during turns
- Vibration or shudder under acceleration
- Grease leakage from a damaged CV boot
- Clunking noise from worn axle joints
- Excessive play in the rear driveline
Installation Notes
Confirm rear right or rear left position before ordering. Verify axle length, spline count, and axle nut thread size against the removed part to ensure proper BMW X5 fitment. The axle nut is stake-locking, so the existing nut should be inspected during service and replaced only if required by the repair procedure. ABS tone ring is not included.
Quality Assurance
TrakMotive lists BM-8029 as a new CV axle shaft and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | BMW | X5 | Automatic | 3.0L | L6 | Rear Right | CV Axle Shaft |
| 2006 | BMW | X5 | Automatic | 3.0L | L6 | Rear Left | CV Axle Shaft |
| 2005 | BMW | X5 | Automatic | 3.0L | L6 | Rear Right | CV Axle Shaft |
| 2005 | BMW | X5 | Automatic | 3.0L | L6 | Rear Left | CV Axle Shaft |
| 2004 | BMW | X5 | Automatic | 3.0L | L6 | Rear Right | CV Axle Shaft |
| 2004 | BMW | X5 | Automatic | 3.0L | L6 | Rear Left | CV Axle Shaft |
| 2003 | BMW | X5 | — | 4.4L | V8 | Rear Right | CV Axle Shaft |
| 2003 | BMW | X5 | — | 4.4L | V8 | Rear Left | CV Axle Shaft |
| 2003 | BMW | X5 | Automatic | 3.0L | L6 | Rear Right | CV Axle Shaft |
| 2003 | BMW | X5 | Automatic | 3.0L | L6 | Rear Left | CV Axle Shaft |
| 2002 | BMW | X5 | — | 4.4L | V8 | Rear Right | CV Axle Shaft |
| 2002 | BMW | X5 | — | 4.4L | V8 | Rear Left | CV Axle Shaft |
| 2002 | BMW | X5 | Automatic | 3.0L | L6 | Rear Right | CV Axle Shaft |
| 2002 | BMW | X5 | Automatic | 3.0L | L6 | Rear Left | CV Axle Shaft |
| 2001 | BMW | X5 | — | 4.4L | V8 | Rear Right | CV Axle Shaft |
| 2001 | BMW | X5 | — | 4.4L | V8 | Rear Left | CV Axle Shaft |
| 2001 | BMW | X5 | Automatic | 3.0L | L6 | Rear Right | CV Axle Shaft |
| 2001 | BMW | X5 | Automatic | 3.0L | L6 | Rear Left | CV Axle Shaft |
| 2000 | BMW | X5 | — | — | — | Rear Right | CV Axle Shaft |
| 2000 | BMW | X5 | — | — | — | Rear Left | CV Axle Shaft |
