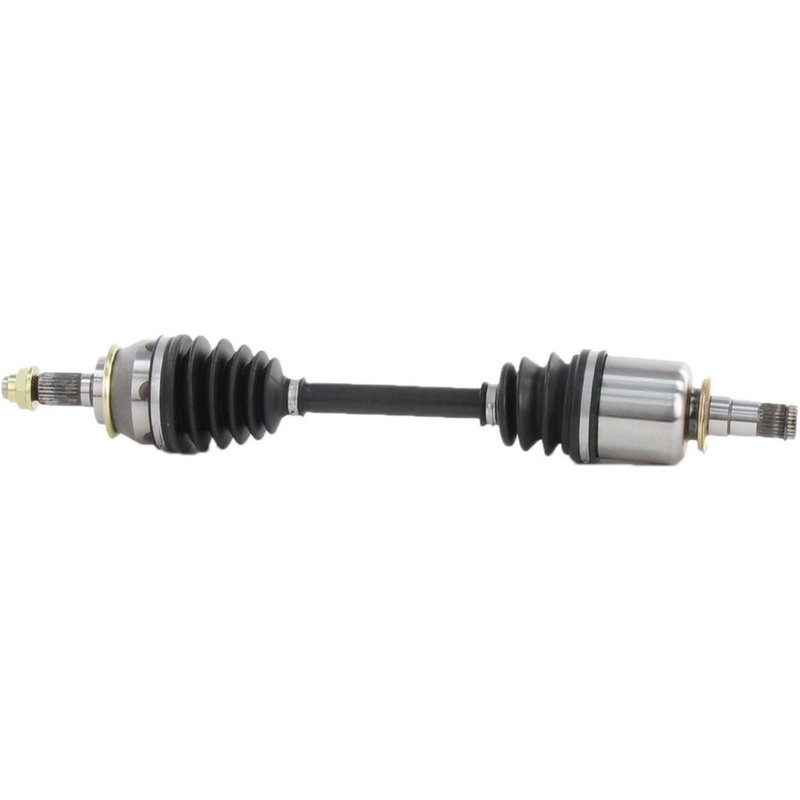

TrakMotive BM-8032 CV Axle Shaft - Front Left
| Brand | TrakMotive BM-8032 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.62 |
| Overall Compressed Length (mm) | 600 |
| Product line | CV Axle Shaft |
| Fits | Mini · 4 vehicles |
New axle shaft. Fresh replacement part for driveline service.
Neoprene boot. Durable material helps protect the joint from wear.
Axle nut included. Ready for installation with the correct hardware.
Cross-references TrakMotive BM-8032, 60-9320 and 3342N for the same application. See all 6.
TrakMotive CV Axle Shaft BM-8032
TrakMotive BM-8032 is a new front left CV axle shaft for select Mini Cooper applications. It is built with a neoprene boot, a conventional outboard joint, and a male inboard connection to match the listed driveline configuration.
This CV axle shaft is a direct-fit replacement for 2005-2006 Mini Cooper, front left, and 2007-2008 Mini Cooper, front left, including non-HT applications noted in the fitment data. The BM-8032 also includes the axle nut specified for the application.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: BM-8032
- New replacement axle shaft
- Front left position
- Neoprene boot material
- Male inboard shaft connection
- Conventional outboard joint design
- 26 inboard splines and 26 outboard splines
- Axle nut included; M22 x 1.5 thread, stake locking type
- No ABS tone ring included
- Overall compressed length: 23.62 in. (600 mm)
Product Details
TrakMotive BM-8032 is part of the CV Axle Shaft line and is engineered for the front left side of the Mini Cooper platform listed in the fitment table. The axle uses a 31.8 mm hex axle nut, a 20 mm nut height, and a 34.4 mm nut length, with a hex head design for serviceability. As a new axle assembly, it is intended to replace worn or damaged driveline components while maintaining the original connection style and spline count.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear
- Grease leakage from a damaged axle boot
- Excessive driveline play from spline or joint wear
- Noise from a failing front left axle assembly
Installation Notes and Tips
Verify the vehicle’s front left application, spline count, and axle nut thread size before installation. Confirm whether the vehicle is equipped for the listed non-ABS application, since this axle does not include an ABS tone ring. Always torque the axle nut to the vehicle manufacturer’s specification and follow proper staking procedure where required.
Fits 2005-2006 Mini Cooper, front left. Fits 2007-2008 Mini Cooper, front left, non HT.
Quality Assurance
TrakMotive states this axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Submodel | Body Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Mini | Cooper | S | Convertible | Automatic | Front Left | Non HT; CV Axle Shaft |
| 2007 | Mini | Cooper | — | — | Automatic | Front Left | Non HT; CV Axle Shaft |
| 2006 | Mini | Cooper | — | — | Automatic | Front Left | CV Axle Shaft |
| 2005 | Mini | Cooper | — | — | Automatic | Front Left | CV Axle Shaft |
