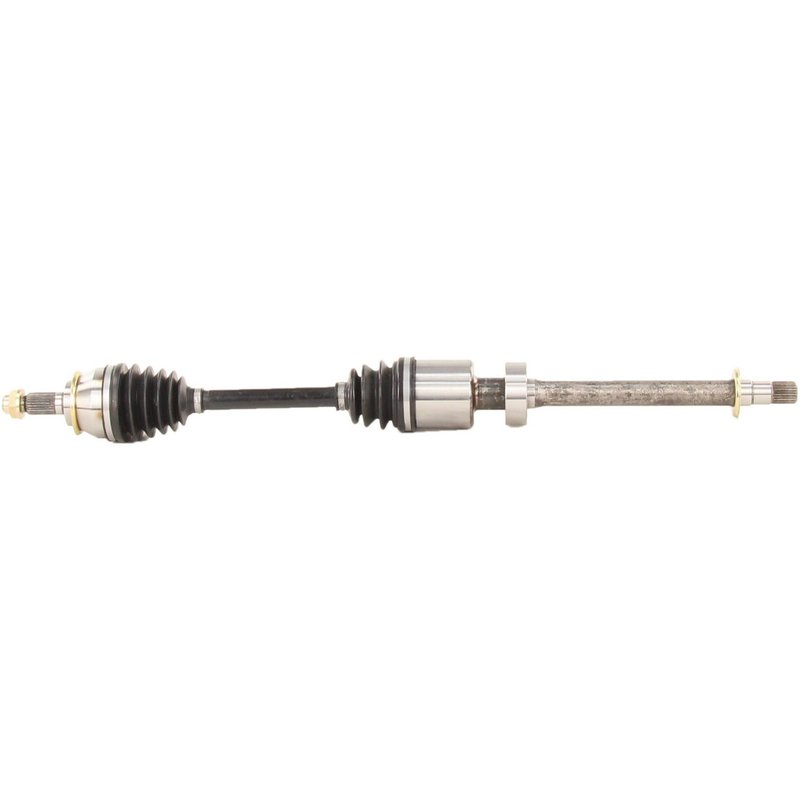

TrakMotive BM-8033 CV Axle Shaft - Front Right
| Brand | TrakMotive BM-8033 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 34.96 |
| Overall Compressed Length (mm) | 888 |
| Product line | CV Axle Shaft |
| Fits | Mini · 4 vehicles |
New axle shaft. Fresh replacement part for driveline service.
Neoprene boot. Durable material helps protect the joint from wear.
Axle nut included. Convenient hardware is ready for installation.
Cross-references TrakMotive BM-8033, 3343N and 31607574864 for the same application. See all 4.
Mini Cooper Front Right CV Axle Shaft
Restore drivetrain performance with this TrakMotive CV Axle Shaft for the front right position on select Mini Cooper models. TrakMotive BM-8033 is a new axle assembly built for direct replacement service on 2005-2006 Mini Cooper and 2007-2008 Mini Cooper non-HT applications.
Key Features
- TrakMotive CV Axle Shaft, part number BM-8033
- Fits front right applications on select Mini Cooper models
- New axle assembly for replacement service
- 26 inboard splines and 26 outboard splines
- Male inboard shaft connection with conventional outboard joint
- Neoprene boot material for joint protection
- Includes axle nut with M22 x 1.5 thread size
- ABS tone ring not included
- Overall compressed length: 34.96 in. (888 mm)
Product Details
TrakMotive BM-8033 is a CV axle shaft for the front right side of select Mini Cooper vehicles. It uses a male inboard connection, a conventional outboard joint, and a hex-style axle nut with stake locking. The axle nut is included, and the assembly measures 34.96 inches compressed length. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Compatible with 2005-2006 Mini Cooper, front right, and 2007-2008 Mini Cooper, front right, non-HT. The TrakMotive CV Axle Shaft line focuses on replacement driveline components built for direct-fit service, and BM-8033 follows that approach for Mini Cooper front axle repair.
Common Repair Uses
- Clicking or popping noises during turns
- Vibration from a worn front axle shaft
- Grease leakage from a damaged CV boot
- Excessive play in the front right driveline
- Restoring smooth power transfer to the wheel
Installation Notes
Verify spline count, axle length, and axle nut thread size before installation. This axle uses a stake-style locking nut and does not include an ABS tone ring. ABS axles fit non-ABS applications unless otherwise noted, so confirm the vehicle’s brake and sensor configuration before ordering. Professional installation and proper torque procedures are recommended for front axle replacement on Mini Cooper applications.
Quality Assurance
TrakMotive BM-8033 is a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Body Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Mini | Cooper | Convertible | Automatic | Front Right | Non HT; CV Axle Shaft |
| 2007 | Mini | Cooper | Convertible | Automatic | Front Right | Non HT; CV Axle Shaft |
| 2006 | Mini | Cooper | Convertible | Automatic | Front Right | CV Axle Shaft |
| 2005 | Mini | Cooper | Convertible | Automatic | Front Right | CV Axle Shaft |
