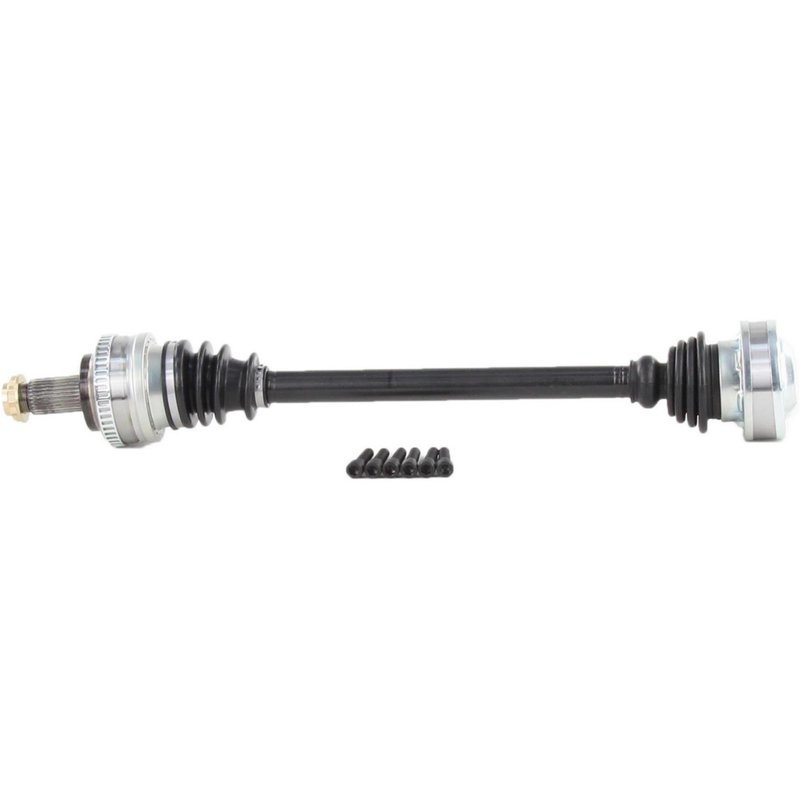

TrakMotive BM-8034 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft BM-8034

The TrakMotive CV Axle Shaft BM-8034 is engineered for reliable driveline performance in select BMW models. Designed specifically for BMW 325xi, 330i, and 330xi vehicles, this new axle shaft ensures precise fitment and durability.

• Compatible with BMW 325xi, 330i, and 330xi models
• Includes ABS tone ring with 48 window-type teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Comes with a stake-type locking axle nut and all necessary hardware
• Overall compressed length of 26.67 inches (677.5 mm) for exact fit

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including bolt-on inboard joints and conventional outboard joints, to ensure compatibility and performance in driveline systems. The BM-8034 model exemplifies this approach with its comprehensive hardware package and durable materials.

Technical Specifications and Features

This CV axle shaft features a 48-tooth window-type ABS ring included for seamless integration with the vehicle's anti-lock braking system. The axle nut is a hex head type, measuring 5/8 inch (16 mm) in height and 1 2/5 inches (35.5 mm) across the flats, with a thread size of M27x1.5 and a stake locking mechanism to secure the assembly. The inboard joint is bolt-on style with six bolt holes and includes six M10x1.5 Allen head bolts, each 2 1/6 inches (55 mm) long, ensuring a secure connection. The neoprene boot material provides resistance to wear and environmental factors, extending the life of the joint. The outboard joint uses a conventional connection style with 30 splines for reliable torque transfer.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on BMW 325xi, 330i, and 330xi
• Resolves issues related to clicking or popping noises during turns
• Addresses vibration or shuddering caused by axle shaft wear
• Restores proper ABS sensor function with included tone ring
• Eliminates grease leaks from torn or degraded CV boots

Installation Notes and Tips

Installation requires removal of the old axle shaft and proper torqueing of the included stake-type locking axle nut to manufacturer specifications. The bolt-on inboard joint simplifies alignment and attachment using the six included Allen head bolts. Ensure the neoprene boot is properly seated to prevent contamination. It is recommended to inspect related suspension and driveline components during installation for optimal performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft BM-8034 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware for installation and is designed for durability and consistent performance. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
