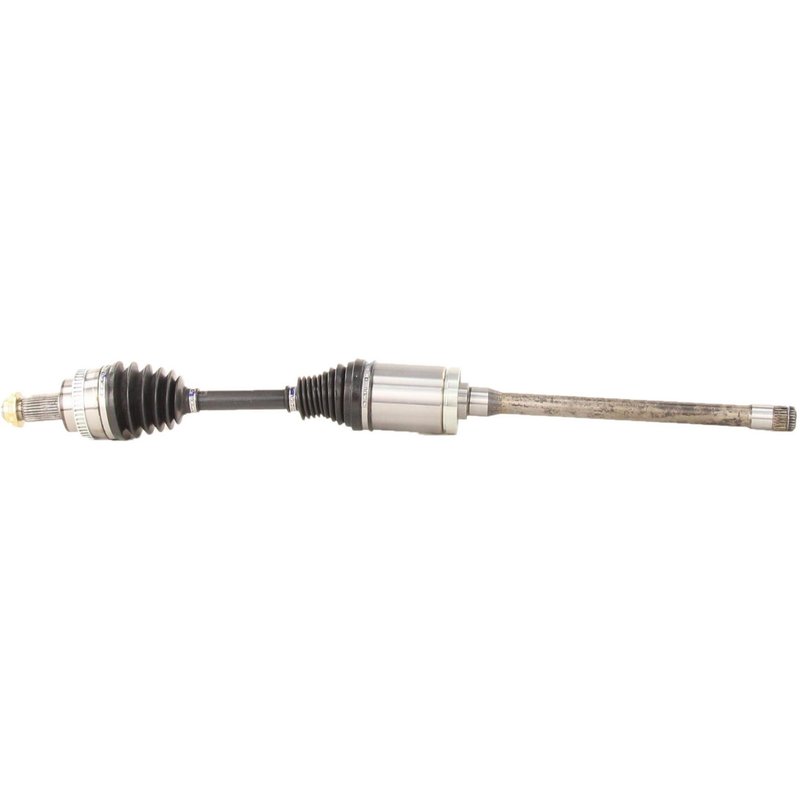

TrakMotive BM-8038 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft BM-8038

The TrakMotive CV Axle Shaft BM-8038 is engineered for reliable driveline performance in select BMW models. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for vehicles like the BMW 325xi, 328i xDrive, 328xi, 330xi, 335i xDrive, and 335xi.

• Compatible with BMW 325xi, 328i xDrive, 328xi, 330xi, 335i xDrive, and 335xi
• Includes ABS tone ring with 48 window-type teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Axle nut included with stake locking type and hex head design
• Overall compressed length of 35.12 inches (892 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components that maintain driveline integrity and vehicle safety. This line features new, not remanufactured, axle shafts designed with attention to detail such as the inclusion of ABS tone rings and OEM-style axle nuts. The BM-8038 model exemplifies this approach by combining durable materials like neoprene boots with precise spline counts and connection styles to ensure compatibility and longevity.

Technical Specifications and Features

The BM-8038 CV axle shaft includes a 48-tooth window-type ABS ring, which is essential for accurate anti-lock braking system operation. The axle nut is a hex head type with a stake locking mechanism, measuring 5/8 inches (16 mm) in height and 1 3/5 inches (41 mm) in length, with an M27x1.5 thread size. The neoprene boot material offers resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint features a male connection style with 27 splines, while the outboard joint is conventional with 30 splines, ensuring a secure and precise fit. The overall compressed length of 35.12 inches (892 mm) matches OEM specifications for the compatible BMW models.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on BMW 325xi, 328i xDrive, 328xi, 330xi, 335i xDrive, and 335xi
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included stake-locking axle nut

Installation Notes and Tips

When installing the TrakMotive BM-8038 CV axle shaft, verify compatibility with your specific BMW model and drivetrain configuration. Use proper torque specifications for the M27x1.5 axle nut and ensure the stake locking is correctly engaged to prevent loosening. Inspect the ABS tone ring alignment to maintain accurate sensor readings. It is recommended to replace axle nuts and boots as a set to maintain driveline integrity.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component manufactured to meet or exceed OEM standards. The inclusion of an ABS tone ring and OEM-style axle nut reflects attention to detail and quality. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in compatible BMW models.
