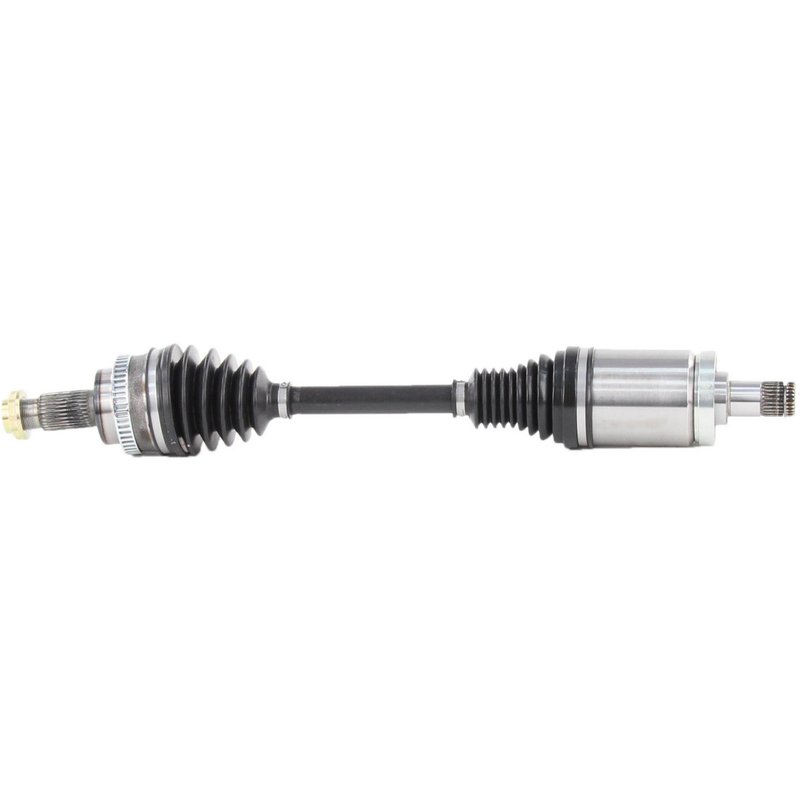

TrakMotive BM-8041 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft BM-8041

The TrakMotive CV Axle Shaft BM-8041 is engineered for precise fitment and reliable performance in select BMW models. Designed to meet OEM specifications, this new CV axle shaft supports smooth driveline operation for vehicles such as the BMW 525xi and 535i xDrive.

• Compatible with BMW 525xi, 528i xDrive, 528xi, 530xi, 535i xDrive, and 535xi
• Includes ABS tone ring with 48 window-type teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection against contaminants
• Axle nut included with stake locking type and hex head for secure installation
• Overall compressed length of 23.76 inches (603.5 mm) for exact fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components designed to maintain driveline integrity and vehicle safety. This line emphasizes precise engineering, including features like integrated ABS tone rings and durable neoprene boots, ensuring compatibility with specific vehicle models and maintaining factory performance standards.

Technical Specifications and Features

This CV axle shaft features a 48-tooth window-type ABS ring included to support the vehicle's anti-lock braking system. The axle nut is a hex head type measuring 35.5 mm across flats, with a height of 16 mm and a length of 41 mm, secured by a stake locking mechanism. The neoprene boot material provides resistance to wear and environmental damage. The inboard joint is a male type with 27 splines, while the outboard joint is conventional with 30 splines, ensuring proper connection and torque transfer. The overall compressed length of 23.76 inches (603.5 mm) matches OEM dimensions for a direct replacement.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on compatible BMW models
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included axle nut and locking mechanism

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft BM-8041, verify compatibility with your BMW model year and drivetrain configuration. Use the included axle nut with the specified M27 x 1.5 thread size and stake locking type to secure the axle properly. Inspect the neoprene boot for any damage during installation to maintain joint protection. Torque specifications should follow manufacturer guidelines to ensure safe and reliable operation.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive products undergo quality control inspections to ensure durability and fitment accuracy. Warranty coverage details should be confirmed with the product provider or manufacturer.
