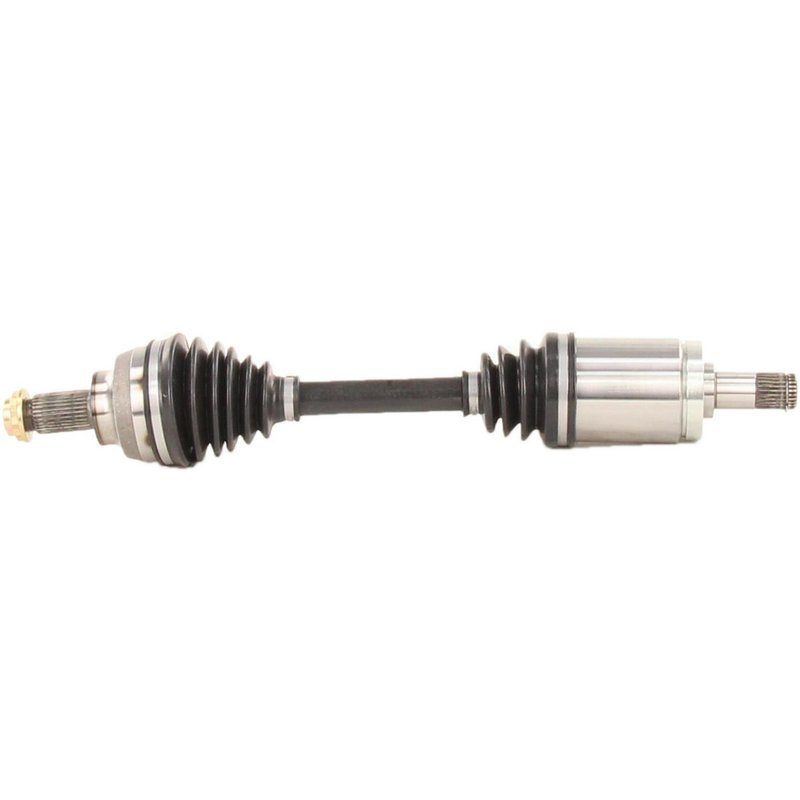

TrakMotive BM-8045 CV Axle Shaft - Front Left
| Brand | TrakMotive BM-8045 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/8 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.91 |
| Overall Compressed Length (mm) | 582 |
| Product line | CV Axle Shaft |
| Fits | BMW · 1 vehicle |
New axle shaft. Fresh replacement part for driveline service.
Neoprene boot. Durable material helps protect the joint from wear.
Axle nut included. Ready for a more complete installation.
Cross-references TrakMotive BM-8045, 60-9302 and 80-7912 for the same application. See all 6.
TrakMotive BM-8045 CV Axle Shaft
The TrakMotive BM-8045 is a new CV axle shaft for the front left position on the 2000 BMW X5, including applications noted as TO 4/2000. Built as a direct driveline replacement, it uses a neoprene boot, a male inboard connection, and a conventional outboard joint for a precise OE-style fit.
TrakMotive CV axle shafts are part of the brand’s CV Axle Shaft line, focused on replacement driveline components for passenger vehicles. The BM-8045 is engineered for the BMW X5 front left application and includes the axle nut needed for the installation.
Key Features
- Fits 2000 BMW X5, front left
- New CV axle shaft, TrakMotive BM-8045
- Neoprene boot material for driveline protection
- Male inboard shaft connection with conventional outboard joint
- 27 inboard splines and 30 outboard splines
- Overall compressed length: 22.91 in. (582 mm)
- Axle nut included; M27 x 1.5 thread, stake locking type
- No ABS tone ring included
Detailed Description
The TrakMotive BM-8045 CV axle shaft is a direct replacement for the front left axle on the 2000 BMW X5. It is built new, not remanufactured, and uses a 27-spline inboard connection with a 30-spline outboard side to match the specified driveline configuration. The 22.91-inch compressed length supports proper axle geometry for the listed BMW X5 application.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. The BM-8045 also cross-references OE and aftermarket numbers including 31607503537 and AX-9790.
What It Helps Resolve
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline play caused by spline or joint wear
- Front left axle failure on the 2000 BMW X5
Installation Notes and Tips
Verify the vehicle is a 2000 BMW X5, front left, and confirm the TO 4/2000 note before ordering. Match the axle nut thread size, spline count, and overall length to the original part. Because this axle does not include an ABS tone ring, confirm the vehicle’s brake and sensor setup before installation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The company also identifies its manufacturing quality system as ISO 9001:1007 and TS 16949:2009 certified.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2000 | BMW | X5 | Front Left | TO 4/2000; CV Axle Shaft |
