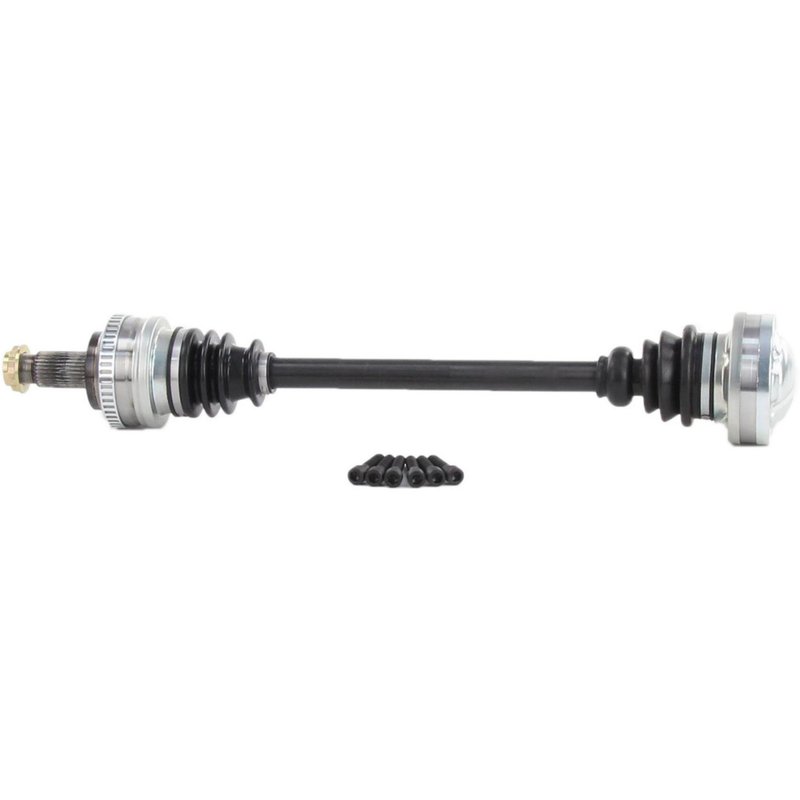

TrakMotive BM-8049 CV Axle Shaft - Rear Right
| Brand | TrakMotive BM-8049 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/8 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/6 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.87 |
| Overall Compressed Length (mm) | 657 |
| Product line | CV Axle Shaft |
| Fits | BMW · 12 vehicles |
New unit. Built as a fresh replacement, not remanufactured.
Bolt-on design. Simplifies installation with a secure inboard connection.
Neoprene boot. Helps protect the joint from dirt and moisture.
Cross-references TrakMotive BM-8049, 33207566232 and 33207571054 for the same application. See all 7.
BMW Rear Right CV Axle Shaft
TrakMotive BM-8049 is a new CV axle shaft for rear right applications on select BMW performance models. It is built for 2001-2006 BMW M3 and 2006-2008 BMW Z4 fitments, with OE-style dimensions and drivetrain connections that match the listed applications.
This CV axle shaft uses a conventional outboard joint, a bolt-on inboard joint, and a spline-style shaft connection. The assembly includes a neoprene boot, a 48-tooth window-style ABS tone ring, and a 30-spline outboard end for the specified BMW rear axle applications.
- Fits 2001-2006 BMW M3, rear right
- Fits 2006-2008 BMW Z4, rear right
- TrakMotive BM-8049 CV axle shaft for rear right driveline service
- New construction with bolt-on inboard shaft connection
- ABS tone ring included with 48 teeth and window-style design
- Neoprene boot material for axle boot service durability
- Includes axle nut with M27 x 1.5 thread size and stake locking type
Detailed Product Overview
TrakMotive BM-8049 is a rear right CV axle shaft engineered for BMW M3 and BMW Z4 applications listed above. It measures 25.87 inches overall compressed length and uses a 6-bolt inboard joint pattern with M10 x 1.5 inboard bolt threads and 8 mm Allen head bolts. The axle also features a 35.5 mm hex axle nut size, 16 mm nut height, and a 41 mm nut length for the specified fitments. Cross-reference part numbers include BMW OE numbers 33207566232 and 33207571054 for the same application.
Common Replacement Reasons
- Clicking or popping from the rear axle during turns or acceleration
- Vibration or shudder from the rear driveline
- Torn axle boot or grease leakage at the CV joint
- ABS warning concerns related to a damaged tone ring or axle sensor interface
- Excessive play or wear in the rear right axle assembly
Installation Notes
Verify rear right position, spline count, ABS ring style, and compressed length before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle’s original hardware requirements. This part is listed for 2001-2006 BMW M3 and 2006-2008 BMW Z4 rear right applications, so compare the OE axle and hub interface carefully before assembly.
Quality Assurance
TrakMotive identifies this axle shaft as a new part and states that it is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production standards for this CV axle shaft line.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2008 | BMW | Z4 | M Roadster | RWD | 3.2L | L6 | Rear Right | CV Axle Shaft |
| 2008 | BMW | Z4 | M Coupe | RWD | 3.2L | L6 | Rear Right | CV Axle Shaft |
| 2007 | BMW | Z4 | M Roadster | RWD | 3.2L | L6 | Rear Right | CV Axle Shaft |
| 2007 | BMW | Z4 | M Coupe | RWD | 3.2L | L6 | Rear Right | CV Axle Shaft |
| 2006 | BMW | M3 | — | RWD | — | — | Rear Right | CV Axle Shaft |
| 2006 | BMW | Z4 | M Roadster | RWD | 3.2L | L6 | Rear Right | CV Axle Shaft |
| 2006 | BMW | Z4 | M Coupe | RWD | 3.2L | L6 | Rear Right | CV Axle Shaft |
| 2005 | BMW | M3 | — | RWD | — | — | Rear Right | CV Axle Shaft |
| 2004 | BMW | M3 | — | RWD | — | — | Rear Right | CV Axle Shaft |
| 2003 | BMW | M3 | — | RWD | — | — | Rear Right | CV Axle Shaft |
| 2002 | BMW | M3 | — | RWD | — | — | Rear Right | CV Axle Shaft |
| 2001 | BMW | M3 | — | RWD | — | — | Rear Right | CV Axle Shaft |
