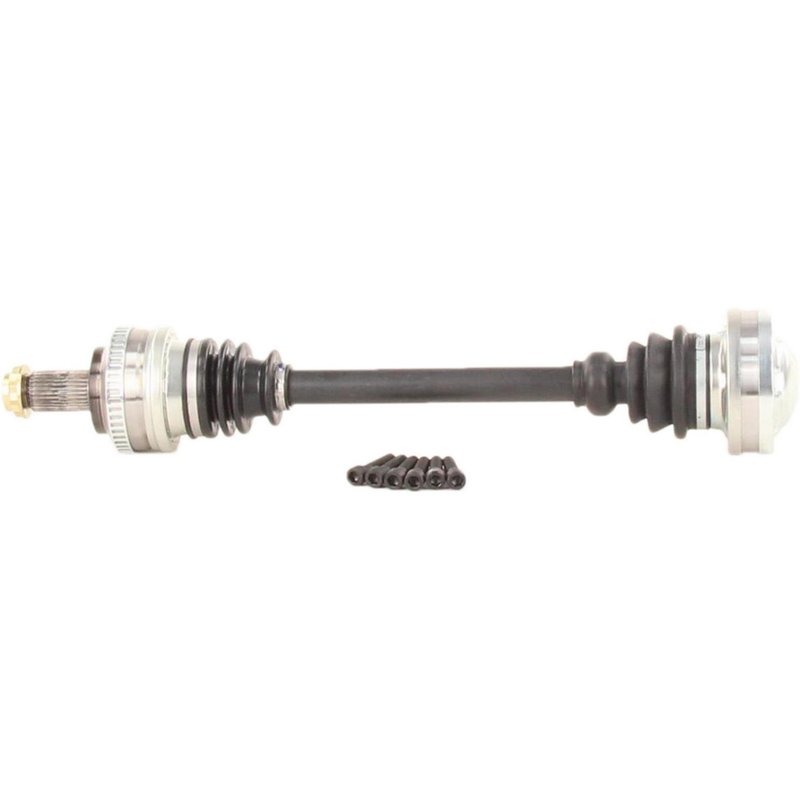

TrakMotive BM-8051 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive BM-8051 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/8 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/6 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.82 |
| Overall Compressed Length (mm) | 605 |
| Product line | CV Axle Shaft |
| Fits | BMW · 10 vehicles |
New replacement shaft. Bolt-on inboard connection for straightforward installation.
ABS tone ring included. Built with a 48-tooth window ring for accurate signal transfer.
Neoprene boot material. Helps protect the joint from dirt and moisture.
Cross-references TrakMotive BM-8051 and 33212228156 for the same application. See all 2.
BMW M3 Rear CV Axle Shaft
TrakMotive BM-8051 is a new CV axle shaft for rear left and rear right applications on select 1995-1999 BMW M3 models. It is built for direct driveline replacement where a 27 mm O.D. CV axle shaft is specified, with fitment coverage for both sides of the rear axle.
Key Features
- Fits 1995-1999 BMW M3, rear right
- Fits 1995-1999 BMW M3, rear left
- New CV axle shaft from TrakMotive
- Overall compressed length: 23.82 in. (605 mm)
- 30 outboard splines and 6-bolt inboard connection
- Neoprene boot material for driveline protection
- ABS tone ring included with 48-tooth window-style ring
- Axle nut included; M27 x 1.5 thread, 35.5 mm hex size
Product Details
This TrakMotive CV axle shaft, part number BM-8051, is engineered for rear driveline service on BMW M3 applications from 1995 through 1999. The axle uses a conventional outboard joint, a bolt-on inboard joint, and a spline-style shaft connection to match the specified rear axle setup. It also includes an ABS tone ring with a 48-tooth window design, making it a practical replacement for vehicles that use ABS-equipped axle configurations. TrakMotive BM-8051 is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company and is backed by a limited lifetime warranty.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises from the rear axle during turns
- Vibration felt through the driveline under acceleration
- Boot wear that can lead to grease loss and joint contamination
- Rear axle noise caused by worn CV joints
- ABS-related axle replacement needs on equipped BMW M3 models
Installation Notes
Confirm rear left or rear right application before installation on your BMW M3. Verify axle nut thread size, hex size, and overall compressed length against the original part to ensure proper fit. Inspect the mating hub, differential flange, and surrounding seals for wear before installing the new axle shaft. Torque all fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
TrakMotive BM-8051 is produced by an ISO 9001:1007 and TS 16949:2009 certified company. It includes a limited lifetime warranty and is built as a new replacement CV axle shaft for the specified BMW M3 rear applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | BMW | M3 | RWD | Rear Right | 27mm O.D.; CV Axle Shaft |
| 1999 | BMW | M3 | RWD | Rear Left | 27mm O.D.; CV Axle Shaft |
| 1998 | BMW | M3 | RWD | Rear Right | 27mm O.D.; CV Axle Shaft |
| 1998 | BMW | M3 | RWD | Rear Left | 27mm O.D.; CV Axle Shaft |
| 1997 | BMW | M3 | RWD | Rear Right | 27mm O.D.; CV Axle Shaft |
| 1997 | BMW | M3 | RWD | Rear Left | 27mm O.D.; CV Axle Shaft |
| 1996 | BMW | M3 | RWD | Rear Right | 27mm O.D.; CV Axle Shaft |
| 1996 | BMW | M3 | RWD | Rear Left | 27mm O.D.; CV Axle Shaft |
| 1995 | BMW | M3 | RWD | Rear Right | 27mm O.D.; CV Axle Shaft |
| 1995 | BMW | M3 | RWD | Rear Left | 27mm O.D.; CV Axle Shaft |
