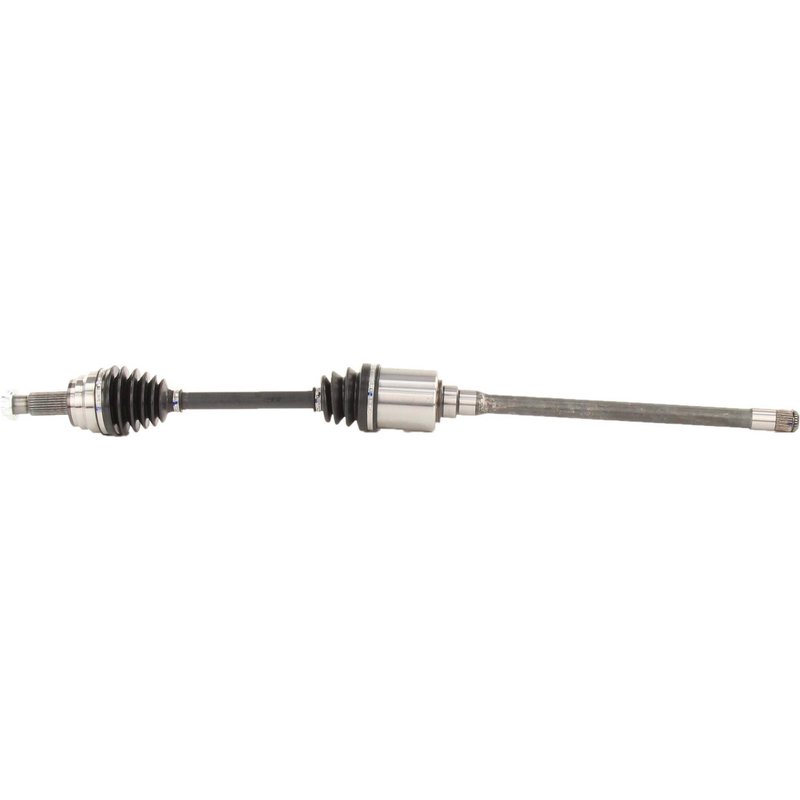

TrakMotive BM-8054 CV Axle Shaft - Front Right
| Brand | TrakMotive BM-8054 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/8 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 40.12 |
| Overall Compressed Length (mm) | 1019 |
| Product line | CV Axle Shaft |
| Fits | BMW · 26 vehicles |
New axle shaft. Freshly built for dependable driveline replacement.
Neoprene boot material. Helps resist wear for long service life.
Includes axle nut. Ready for a more complete installation.
Cross-references Cardone New 66-9319, TrakMotive BM-8054 and 80-7919 for the same application. See all 7.
BMW X5/X6 Front Right CV Axle Shaft
TrakMotive BM-8054 is a new front right CV axle shaft for select BMW X5 and BMW X6 applications. It is built for standard-duty replacement use and follows the original-style driveline layout for the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: BM-8054
- Front right position
- New axle shaft construction
- Inboard joint type: male
- Outboard joint type: conventional
- 27 inboard splines and 30 outboard splines
- Neoprene boot material
- Includes axle nut with M27 x 1.5 thread
- Axle nut locking type: stake
- No ABS tone ring included
- Overall compressed length: 40.12 in. (1019 mm)
Product Details
TrakMotive BM-8054 is a CV axle shaft engineered for the front right side of select BMW X5 and BMW X6 models. It uses a male inboard connection, a conventional outboard connection, and a neoprene boot to support driveline articulation in the specified applications. The axle nut is included and uses an M27 x 1.5 thread with a stake-style locking design. This part cross-references Cardone New 66-9319 for the same application.
Compatible With 2007-2016 BMW X5, front right; 2008-2014 BMW X6, front right; 2015-2017 BMW X6, front right; 2017-2018 BMW X5, front right; and 2018-2019 BMW X6, front right. Search terms such as BMW X5 front right CV axle shaft and BMW X6 front right axle replacement apply to this part number, BM-8054.
Common Repair Uses
- Restores driveline transfer when the original axle is worn or damaged
- Addresses clicking or popping noises during turns caused by CV joint wear
- Helps correct vibration from a failing front axle assembly
- Replaces a torn boot or contaminated joint assembly
- Supports repair after spline, seal, or joint wear on the front right side
Installation Notes
Verify spline count, axle length, and nut thread size before installation. Confirm front right placement and match the vehicle’s ABS configuration, since no ABS tone ring is included. Inspect related seals, hub components, and mounting surfaces during service to help ensure a proper repair on BMW X5 and BMW X6 driveline applications.
Quality Assurance
TrakMotive identifies this axle shaft as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certified company manufacturing. The manufacturer also states a limited lifetime warranty.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | BMW | X6 | — | 4.4L | V8 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | BMW | X5 | — | 4.4L | V8 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | BMW | X6 | — | 4.4L | V8 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2017 | BMW | X5 | — | 4.4L | V8 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2017 | BMW | X6 | — | 4.4L | V8 | Front Right | Twin Turbo; CV Axle Shaft |
| 2016 | BMW | X5 | M | 4.4L | V8 | Front Right | CV Axle Shaft |
| 2016 | BMW | X6 | — | 4.4L | V8 | Front Right | Twin Turbo; CV Axle Shaft |
| 2015 | BMW | X5 | xDrive50i | 4.4L | V8 | Front Right | CV Axle Shaft |
| 2015 | BMW | X5 | Excellence | 4.4L | V8 | Front Right | CV Axle Shaft |
| 2015 | BMW | X6 | — | 4.4L | V8 | Front Right | Twin Turbo; CV Axle Shaft |
| 2014 | BMW | X5 | xDrive50i | 4.4L | V8 | Front Right | CV Axle Shaft |
| 2014 | BMW | X5 | Excellence | 4.4L | V8 | Front Right | CV Axle Shaft |
| 2014 | BMW | X6 | — | — | — | Front Right | CV Axle Shaft |
| 2013 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2013 | BMW | X6 | — | — | — | Front Right | CV Axle Shaft |
| 2012 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2012 | BMW | X6 | — | — | — | Front Right | CV Axle Shaft |
| 2011 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2011 | BMW | X6 | xDrive35i | — | — | Front Right | CV Axle Shaft |
| 2010 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2010 | BMW | X6 | xDrive35i | — | — | Front Right | CV Axle Shaft |
| 2009 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2009 | BMW | X6 | — | — | — | Front Right | CV Axle Shaft |
| 2008 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
| 2008 | BMW | X6 | — | — | — | Front Right | CV Axle Shaft |
| 2007 | BMW | X5 | — | — | — | Front Right | CV Axle Shaft |
