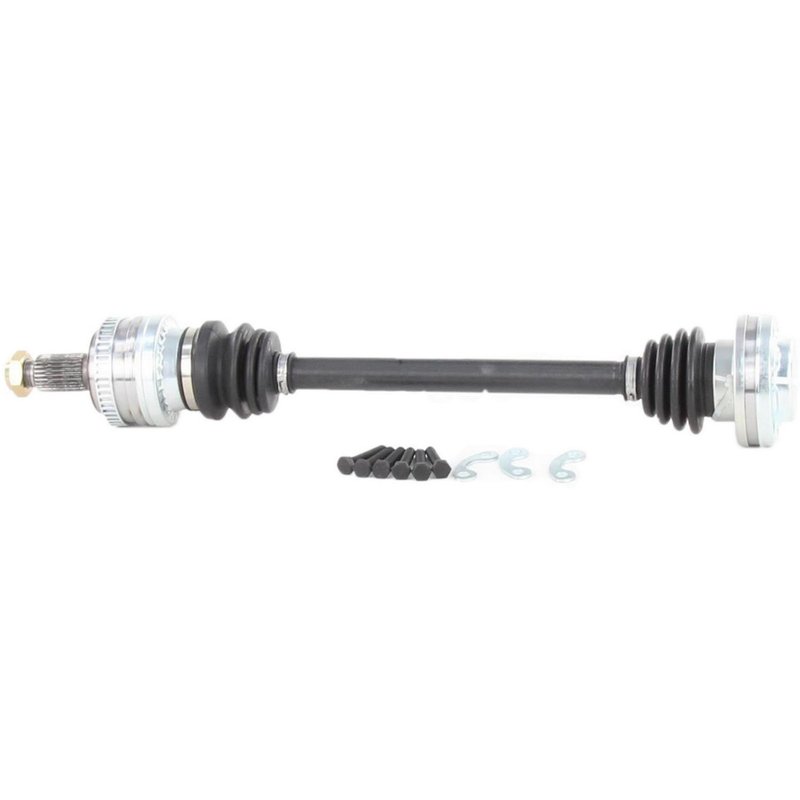

TrakMotive BM-8064 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft BM-8064 for BMW Z3

The TrakMotive CV Axle Shaft BM-8064 is engineered specifically for the BMW Z3, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures proper fit and function for your vehicle's CV components.

• Compatible with BMW Z3 models
• Includes ABS tone ring with 48 window-type teeth
• Equipped with a self-locking hex axle nut (M22*1.5 thread)
• Neoprene boot material for durability and protection
• Bolt-on inboard joint with 6 bolt holes and Allen head bolts
• Overall compressed length of 23.31 inches (592 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. This line emphasizes quality materials and exact fitment, such as the inclusion of ABS tone rings and self-locking axle nuts, to maintain the integrity of the vehicle's drivetrain system. The BM-8064 model exemplifies these standards with its bolt-on inboard joint and conventional outboard joint design, ensuring compatibility and ease of installation for BMW Z3 owners.

Technical Specifications and Features

The BM-8064 CV Axle Shaft features a 48-tooth window-type ABS ring that is included to maintain accurate wheel speed sensor readings. The axle nut is a 32 mm (1 1/4 inch) hex head, 15 mm (3/5 inch) in height, and 37 mm (1 1/2 inch) in length, with a self-locking design to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joint. The inboard joint uses a bolt-on connection style with six M8*1.25 threaded Allen head bolts, each 50.3 mm (2 inches) long, ensuring secure attachment. The outboard joint is conventional with 27 splines, matching the original equipment specifications. The overall compressed length of 23.31 inches (592 mm) fits the BMW Z3's driveline requirements precisely.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on BMW Z3
• Restores proper ABS sensor function with included tone ring
• Eliminates axle nut loosening issues with self-locking design
• Prevents CV joint contamination with durable neoprene boot
• Addresses driveline vibrations and noise caused by faulty axles

Installation Notes and Tips

When installing the TrakMotive BM-8064 CV Axle Shaft on a BMW Z3, ensure the bolt-on inboard joint is secured using the six included Allen head bolts tightened to manufacturer torque specifications. Verify the ABS tone ring is properly seated to maintain accurate sensor readings. The self-locking axle nut should be torqued according to BMW guidelines to prevent loosening. Inspect the neoprene boot for any damage during installation to ensure long-term protection of the CV joint.

Quality Assurance and Warranty

This CV Axle Shaft is a new, direct replacement part manufactured to meet or exceed OEM standards for fit and function. The inclusion of a self-locking axle nut and durable neoprene boot reflects attention to quality and reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry standards for new replacement driveline components.
