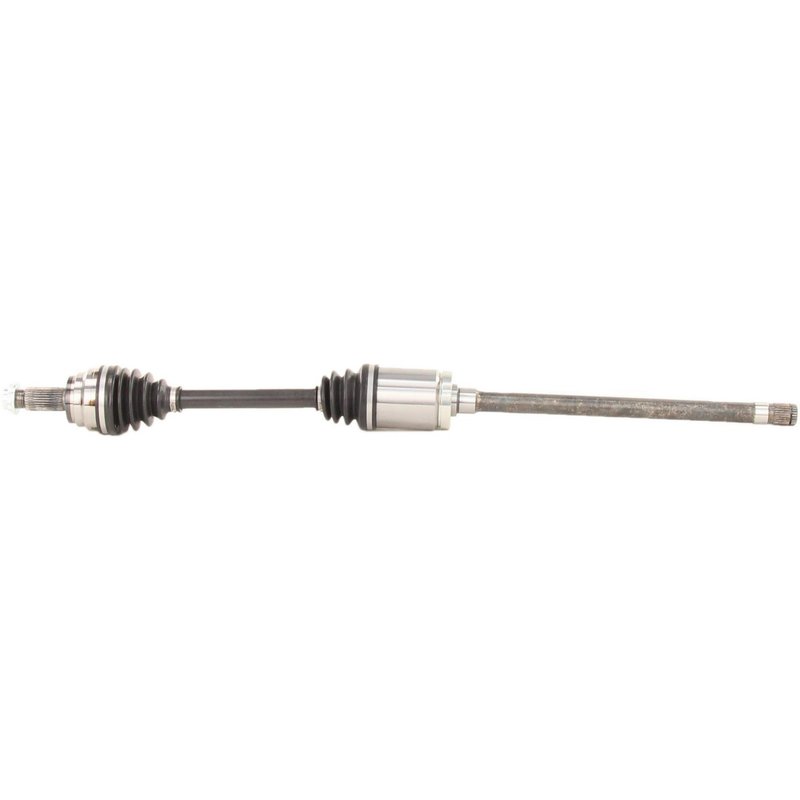

TrakMotive BM-8111 CV Axle Shaft - Front Right
| Brand | TrakMotive BM-8111 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/8 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 40.08 |
| Overall Compressed Length (mm) | 1018 |
| Product line | AAR CV Axle Shaft |
| Fits | BMW · 28 vehicles |
New. Freshly built CV axle shaft for dependable driveline replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by providing the matching hardware in the box.
Cross-references Cardone New 66-9319, Cardone Reman 60-9319 and Four Seasons 3346N for the same application. See all 11.
BMW Front Right CV Axle Shaft
TrakMotive BM-8111 is a new front right CV axle shaft for select BMW X5 and BMW X6 applications. It is built for direct replacement use on vehicles with the AAR design, with fitment covering updated-design and OE AAR configurations where listed.
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: BM-8111
- New CV axle shaft for front right installation
- Boot material: neoprene
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 27
- Outboard splines: 30
- Axle nut included with M27 x 1.5 thread, stake locking type
- Overall compressed length: 40.08 in. (1018 mm)
- No ABS tone ring included
Product Details
The TrakMotive AAR CV Axle Shaft line is built for applications that require the AAR-style axle configuration and precise driveline fitment. BM-8111 uses a neoprene boot, a male inboard shaft connection, and a spline-style outboard connection to match the specified BMW front right setup. This part cross-references Cardone New 66-9319 for the same application.
Compatible With BMW X5 and BMW X6 front right driveline service, this axle shaft is listed for 2007-2016 BMW X5, front right; 2008-2017 BMW X6, front right; 2014 BMW X5, front right; 2017-2018 BMW X5, front right; 2018 BMW X6, front right; and 2019 BMW X6, front right. Use BM-8111 when replacing a worn or damaged front right axle on the covered BMW X5 or BMW X6 fitments.
Common Issues This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear
- Grease leakage from a damaged CV boot
- Excessive driveline play from spline or joint wear
- Noise from a failing front right axle assembly
Installation Notes
Verify axle nut thread size, spline count, and overall compressed length before installation. This axle includes an axle nut with a stake-style locking design. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Confirm the vehicle’s front right AAR configuration before ordering.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a new part and backs it with a limited lifetime warranty. The manufacturer states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for BMW X5 and BMW X6 driveline replacement needs.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2019 | BMW | X6 | — | — | 4.4L | V8 | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | BMW | X5 | xDrive50i | AWD | — | — | — | Front Right | AAR CV Axle Shaft |
| 2018 | BMW | X5 | M | — | — | — | GAS | Front Right | AAR CV Axle Shaft |
| 2018 | BMW | X6 | xDrive50i | AWD | — | — | — | Front Right | AAR CV Axle Shaft |
| 2018 | BMW | X6 | M | AWD | — | — | — | Front Right | AAR CV Axle Shaft |
| 2017 | BMW | X5 | xDrive50i | AWD | — | — | — | Front Right | AAR CV Axle Shaft |
| 2017 | BMW | X5 | M | — | — | — | GAS | Front Right | AAR CV Axle Shaft |
| 2017 | BMW | X6 | — | — | 4.4L | V8 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | BMW | X5 | — | — | 4.4L | V8 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | BMW | X6 | — | — | 4.4L | V8 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | BMW | X5 | — | — | 4.4L | V8 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | BMW | X6 | — | — | 4.4L | V8 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | BMW | X5 | M | — | — | — | GAS | Front Right | AAR CV Axle Shaft |
| 2014 | BMW | X5 | xDrive50i | — | 4.4L | V8 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | BMW | X6 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | BMW | X5 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | BMW | X6 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | BMW | X5 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | BMW | X6 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | BMW | X5 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | BMW | X6 | xDrive50i | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | BMW | X5 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | BMW | X6 | M | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | BMW | X5 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | BMW | X6 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | BMW | X5 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | BMW | X6 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2007 | BMW | X5 | — | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
