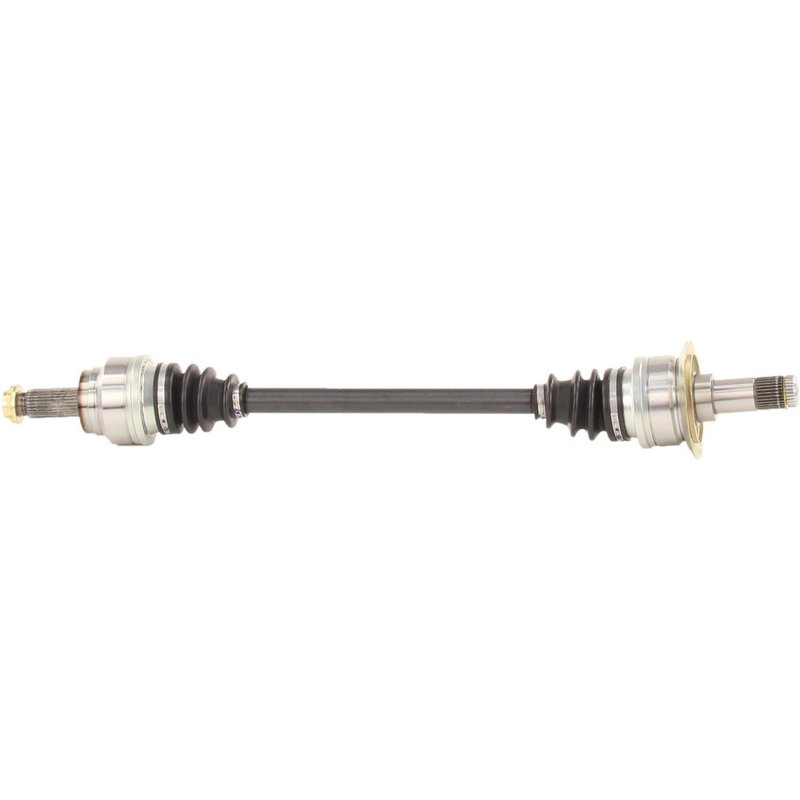

TrakMotive BM-8113 CV Axle Shaft - Rear Left or Rear Right

OE Quality 60-Day Returns

CV Axle Shaft

TrakMotive BM-8113 CV Axle Shaft - Rear Left or Rear Right

Brand	TrakMotive BM-8113
Position	Rear Left
Abs Tone Ring Included	No
Axle Nut Head Type	Hex
Axle Nut Height (in)	5/8
Axle Nut Height (mm)	16
Axle Nut Hex Size (in)	1 2/5
Axle Nut Hex Size (mm)	35.5
Axle Nut Included	Yes
Axle Nut Length (in)	1 3/5
Axle Nut Length (mm)	41
Axle Nut Locking Type	Stake
Axle Nut Thread Size	M27*1.5
Boot Material	Neoprene
Inboard Joint Type	Male
Inboard Shaft Connection Style	Male
New Or Remanufactured	New
Number Of Inboard Splines	32
Number Of Outboard Splines	30
Outboard Joint Type	Conventional
Outboard Shaft Connection Style	Spline
Overall Compressed Length (in)	32.28
Overall Compressed Length (mm)	820
Product line	CV Axle Shaft
Fits	BMW · 53 vehicles

New axle shaft. Fresh replacement part with a neoprene boot for dependable joint protection.

Includes axle nut. Ready for installation with the correct nut and stake-locking design.

ISO certified manufacturing. Built by a company certified to ISO 9001 and TS 16949 standards.

Cross-references TrakMotive BM-8113, 60-9417 and 60-9708 for the same application. See all 6.

$158.13Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all CV Axle Shaft options

BMW X5/X6 Rear CV Axle Shaft

Restore drivetrain performance with the TrakMotive CV Axle Shaft BM-8113. This new rear axle shaft is built for select BMW X5 and BMW X6 applications, with fitment covering rear left, rear right, and rear positions depending on model year. It is a direct replacement for worn or damaged axle assemblies on 2009-2019 BMW X5 and X6 vehicles.

Key Features

TrakMotive CV Axle Shaft, part number BM-8113
New replacement axle shaft for rear driveline service
Neoprene boot material for CV joint protection
Male inboard joint and spline outboard shaft connection
32 inboard splines and 30 outboard splines
Includes axle nut with M27 x 1.5 thread, 35.5 mm hex size, and stake locking type
Overall compressed length: 32.28 in. (820 mm)
No ABS tone ring included

Product Details

The BM-8113 is a TrakMotive CV axle shaft from the CV Axle Shaft product line, engineered for rear driveline replacement on BMW X5 and BMW X6 models. It is listed for 2009-2019 BMW X5 and BMW X6 rear applications, including rear left and rear right positions on specific model years. The axle uses a conventional outboard joint, a male inboard shaft connection, and a neoprene boot to help protect the CV assembly during normal road use.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. BM-8113 also cross-references OE-style numbers used on select BMW applications, including 33207564128 and 33208603103.

Common Replacement Reasons

Clicking or popping from the rear axle area during turns
Vibration under acceleration from a worn CV joint
Torn boot or grease loss at the axle assembly
Excessive play or noise from a damaged rear driveline shaft
Failed axle shaft on BMW X5 or BMW X6 rear applications

Installation Notes

Verify axle length, spline count, and position before installation. This axle includes an axle nut with a 35.5 mm hex size and M27 x 1.5 thread; confirm the vehicle’s hub and fastener specifications before service. ABS axles fit non-ABS applications unless otherwise noted, and this part does not include an ABS tone ring.

Fits 2009 BMW X5, rear
Fits 2010-2018 BMW X5, rear left
Fits 2010-2018 BMW X5, rear right
Fits 2010-2011 BMW X6, rear left
Fits 2010-2011 BMW X6, rear right
Fits 2014 BMW X6, rear left
Fits 2014 BMW X6, rear right
Fits 2015-2017 BMW X6, rear
Fits 2018 BMW X6, rear left
Fits 2018 BMW X6, rear right
Fits 2019 BMW X6, rear left

Quality Assurance

TrakMotive manufactures this axle shaft in an ISO 9001:1007 and TS 16949:2009 certified facility. BM-8113 is backed by a limited lifetime warranty.

This part fits 53 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Drive Type	Liters	Cylinders	Fuel Type	Position	Notes
2019	BMW	X6	—	RWD	3.0L	L6	—	Rear Left	Standard Duty Replacement; CV Axle Shaft
2018	BMW	X5	xDrive50i	AWD	—	—	—	Rear Right	CV Axle Shaft
2018	BMW	X5	xDrive50i	AWD	—	—	—	Rear Left	CV Axle Shaft
2018	BMW	X5	xDrive35i	AWD	—	—	—	Rear Right	CV Axle Shaft
2018	BMW	X5	xDrive35i	AWD	—	—	—	Rear Left	CV Axle Shaft
2018	BMW	X6	xDrive50i	AWD	—	—	—	Rear Right	CV Axle Shaft
2018	BMW	X6	xDrive50i	AWD	—	—	—	Rear Left	CV Axle Shaft
2018	BMW	X6	xDrive35i	AWD	—	—	—	Rear Right	CV Axle Shaft
2018	BMW	X6	xDrive35i	AWD	—	—	—	Rear Left	CV Axle Shaft
2017	BMW	X5	xDrive50i	AWD	—	—	—	Rear Right	CV Axle Shaft
2017	BMW	X5	xDrive50i	AWD	—	—	—	Rear Left	CV Axle Shaft
2017	BMW	X5	xDrive35i	AWD	—	—	—	Rear Right	CV Axle Shaft
2017	BMW	X5	xDrive35i	AWD	—	—	—	Rear Left	CV Axle Shaft
2017	BMW	X6	—	RWD	3.0L	L6	—	Rear	Standard Duty Replacement; CV Axle Shaft
2016	BMW	X5	xDrive50i	AWD	—	—	—	Rear Right	CV Axle Shaft
2016	BMW	X5	xDrive50i	AWD	—	—	—	Rear Left	CV Axle Shaft
2016	BMW	X5	xDrive35i	AWD	—	—	—	Rear Right	CV Axle Shaft
2016	BMW	X5	xDrive35i	AWD	—	—	—	Rear Left	CV Axle Shaft
2016	BMW	X6	—	RWD	3.0L	L6	—	Rear	Standard Duty Replacement; CV Axle Shaft
2015	BMW	X5	xDrive50i	AWD	—	—	—	Rear Right	CV Axle Shaft
2015	BMW	X5	xDrive50i	AWD	—	—	—	Rear Left	CV Axle Shaft
2015	BMW	X5	xDrive35i	AWD	—	—	—	Rear Right	CV Axle Shaft
2015	BMW	X5	xDrive35i	AWD	—	—	—	Rear Left	CV Axle Shaft
2015	BMW	X6	—	RWD	3.0L	L6	—	Rear	Standard Duty Replacement; CV Axle Shaft
2014	BMW	X5	xDrive50i	AWD	—	—	—	Rear Left	CV Axle Shaft
2014	BMW	X5	xDrive35i	AWD	—	—	—	Rear Left	CV Axle Shaft
2014	BMW	X5	xDrive50i	AWD	4.4L	V8	—	Rear Right	CV Axle Shaft
2014	BMW	X5	xDrive35i	AWD	3.0L	L6	—	Rear Right	CV Axle Shaft
2014	BMW	X6	xDrive50i	AWD	—	—	—	Rear Right	CV Axle Shaft
2014	BMW	X6	xDrive50i	AWD	—	—	—	Rear Left	CV Axle Shaft
2014	BMW	X6	xDrive35i	AWD	—	—	—	Rear Right	CV Axle Shaft
2014	BMW	X6	xDrive35i	AWD	—	—	—	Rear Left	CV Axle Shaft
2013	BMW	X5	xDrive50i	AWD	—	—	—	Rear Right	CV Axle Shaft
2013	BMW	X5	xDrive50i	AWD	—	—	—	Rear Left	CV Axle Shaft
2013	BMW	X5	xDrive35i	AWD	—	—	—	Rear Right	CV Axle Shaft
2013	BMW	X5	xDrive35i	AWD	—	—	—	Rear Left	CV Axle Shaft
2013	BMW	X5	xDrive35d	AWD	—	—	—	Rear Right	CV Axle Shaft
2013	BMW	X5	xDrive35d	AWD	—	—	—	Rear Left	CV Axle Shaft
2012	BMW	X5	xDrive50i	AWD	—	—	—	Rear Right	CV Axle Shaft
2012	BMW	X5	xDrive50i	AWD	—	—	—	Rear Left	CV Axle Shaft
2012	BMW	X5	xDrive35d	AWD	—	—	—	Rear Right	CV Axle Shaft
2012	BMW	X5	xDrive35d	AWD	—	—	—	Rear Left	CV Axle Shaft
2011	BMW	X5	xDrive50i	AWD	—	—	—	Rear Right	CV Axle Shaft
2011	BMW	X5	xDrive50i	AWD	—	—	—	Rear Left	CV Axle Shaft
2011	BMW	X5	xDrive35d	AWD	—	—	—	Rear Right	CV Axle Shaft
2011	BMW	X5	xDrive35d	AWD	—	—	—	Rear Left	CV Axle Shaft
2011	BMW	X6	ActiveHybrid	AWD	—	—	—	Rear Left	CV Axle Shaft
2011	BMW	X6	ActiveHybrid	AWD	4.4L	V8	—	Rear Right	CV Axle Shaft
2010	BMW	X5	xDrive35d	AWD	—	—	—	Rear Right	CV Axle Shaft
2010	BMW	X5	xDrive35d	AWD	—	—	—	Rear Left	CV Axle Shaft
2010	BMW	X6	ActiveHybrid	AWD	—	—	—	Rear Left	CV Axle Shaft
2010	BMW	X6	ActiveHybrid	AWD	4.4L	V8	—	Rear Right	CV Axle Shaft
2009	BMW	X5	—	—	3.0L	L6	DIESEL	Rear	Standard Duty Replacement; CV Axle Shaft
No rows match your filter.

Directly replaces or cross-references 6 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

TrakMotive — BM-811360-941760-9708332075641283320860310333208609839
