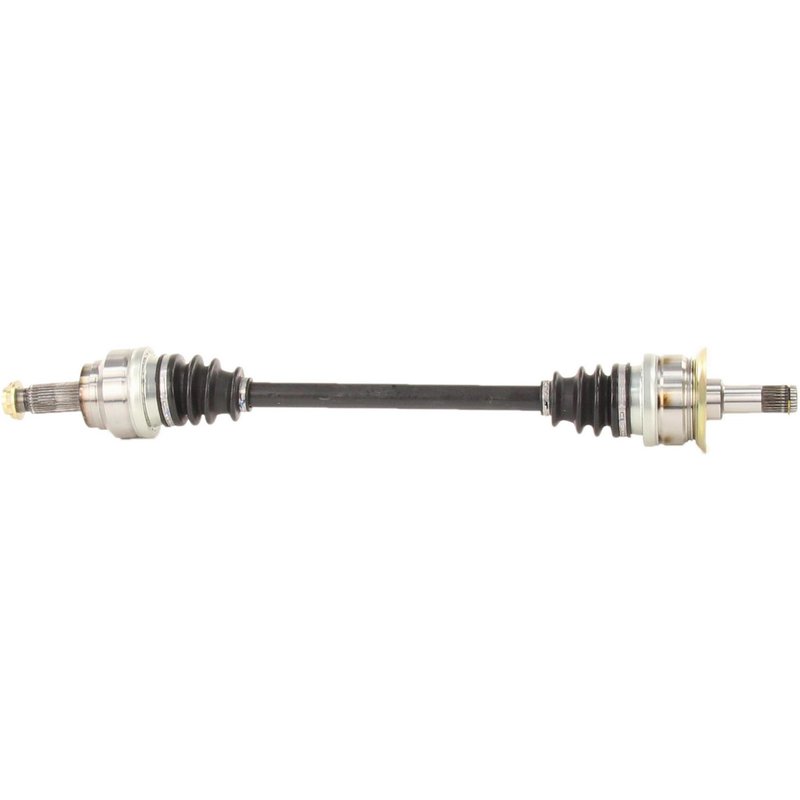

TrakMotive BM-8114 CV Axle Shaft - Rear, Rear Left or Rear Right

BMW X5/X6 Rear CV Axle Shaft

TrakMotive BM-8114 is a new rear CV axle shaft for select BMW X5 and BMW X6 applications. It is built for rear left and rear right positions where listed, with application-specific spline counts and axle hardware details to match the original driveline setup.

Key Features

• New CV axle shaft for rear driveline service
• Fits select BMW X5 rear left, rear right, and rear applications by year and configuration
• Fits select BMW X6 rear left and rear right applications with noted suspension requirements
• Neoprene boot material for CV joint protection
• Male inboard joint and spline-style outboard shaft connection
• 27 inboard splines and 30 outboard splines
• Includes axle nut with M27 x 1.5 thread, 35.5 mm hex size, and stake locking type
• No ABS tone ring included
• Overall compressed length: 32.22 in. (818.5 mm)

Product Details

TrakMotive CV Axle Shaft BM-8114 is part of the brand’s CV Axle Shaft line, focused on direct-fit driveline replacement parts for passenger vehicles. This axle is specified for rear BMW X5 and BMW X6 fitments, including 2007-2012 BMW X5 rear left and rear right, 2014-2018 BMW X5 rear positions, 2015-2017 BMW X6 rear left without adaptive suspension, and 2016-2017 BMW X6 rear right without adaptive suspension. It also covers select 2013 BMW X5 rear standard-duty replacement and 2010 BMW X5 rear left or rear right through 08/09 configurations. This part cross-references OE-style numbers such as 33207564126 and 33208609838 for the same application.

Common Problems This Part Can Address

• Clicking or popping from a worn rear CV joint during turns
• Vibration from a damaged or unbalanced axle shaft
• Grease leakage from a torn or deteriorated CV boot
• Clunking or driveline noise from excessive axle wear
• Loss of smooth power transfer to the rear wheels

Installation Notes and Tips

Verify rear left or rear right position, model year, and suspension configuration before ordering. Confirm spline count, axle nut thread size, and compressed length against the original part on the BMW X5 or BMW X6. The axle nut is included; ABS tone ring is not included. Because ABS axles can fit non-ABS applications unless otherwise noted, match the vehicle’s original equipment details before installation.

Quality Assurance

TrakMotive BM-8114 is a new replacement axle from an ISO 9001:1007 and TS 16949:2009 certified company. The part is backed by a limited lifetime warranty.
