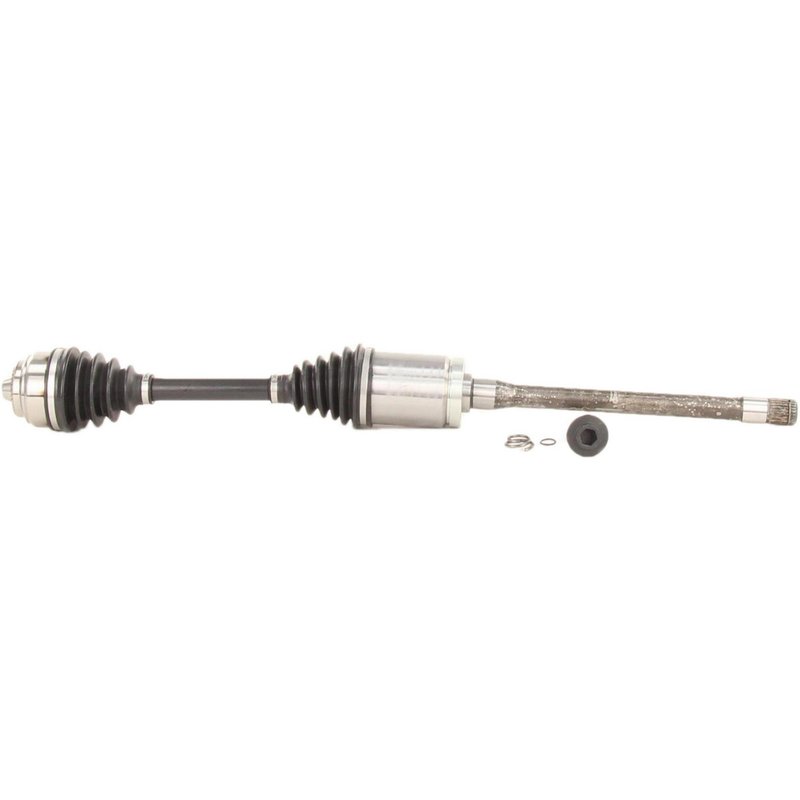

TrakMotive BM-8130 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 AAR CV Axle Shaft

TrakMotive BM-8130 CV Axle Shaft - Front Right

Brand TrakMotive BM-8130
Position Front Right
Abs Tone Ring Included No
Axle Bolt Hex Size (mm) 17
Axle Bolt Length (mm) 83.5
Axle Bolt Thread Size M16*1.5
Axle Nut Included No
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
New Or Remanufactured New
Number Of Bolt Holes 1
Number Of Inboard Splines 27
Number Of Outboard Joint Bolt Holes 1
Number Of Outboard Shaft Bolts 1
Number Of Outboard Splines 37
Outboard Joint Type Audi Style Spline Bolt
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 33.98
Overall Compressed Length (mm) 863
Product line AAR CV Axle Shaft
Fits BMW · 16 vehicles

New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.

Neoprene boot. Flexible material helps protect the joint from dirt and moisture.

ISO certified company. Made by a manufacturer certified to ISO 9001 and TS 16949 standards.

Cross-references TrakMotive BM-8130, 31607593044 and 31607618680 for the same application. See all 4.

$156.71Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $156.71
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

BMW Front Right CV Axle Shaft

TrakMotive BM-8130 is a new AAR CV axle shaft for front right applications on select BMW xDrive models. It is built for 2011-2016 BMW 535i xDrive, 2012-2016 BMW 528i xDrive, and 2014-2018 BMW 640i xDrive applications with the updated design noted in the fitment data.

Key Features

  • Brand: TrakMotive AAR CV Axle Shaft
  • Part number: BM-8130
  • Front right position
  • New axle shaft assembly
  • Neoprene boot material
  • Male inboard joint with spline connection
  • Audi-style spline bolt outboard joint
  • 27 inboard splines and 37 outboard splines
  • Overall compressed length: 33.98 in. (863 mm)
  • Axle bolt thread size: M16 x 1.5
  • Axle bolt hex size: 17 mm
  • Axle bolt length: 83.5 mm
  • No ABS tone ring included

Product Details

This TrakMotive CV axle shaft is engineered for driveline service on BMW xDrive vehicles that use a front right axle in the listed applications. The BM-8130 uses a neoprene boot, spline-style shaft connections, and an Audi-style spline bolt outboard joint to match the specified OE-style configuration. TrakMotive identifies this AAR CV axle shaft as a direct replacement option for the BMW 535i xDrive, BMW 528i xDrive, and BMW 640i xDrive front right positions shown in the fitment data. This part cross-references BMW OE numbers 31607593044 and 31607618680 for the same application.

Common Repair Applications

  • Front right axle noise or vibration during acceleration
  • Clicking or binding from a worn CV joint
  • Torn or leaking axle boot service
  • Driveline play caused by spline or joint wear
  • Replacement for a damaged BMW xDrive front axle assembly

Installation Notes

Verify axle bolt thread size, bolt hex size, spline count, and overall compressed length before installation. This axle does not include an ABS tone ring, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle application. Confirm the front right position and updated design requirement for the specific BMW 535i xDrive, 528i xDrive, or 640i xDrive model before installation.

Quality Assurance

TrakMotive lists this AAR CV axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The BM-8130 is covered by a limited lifetime warranty.

Related reading

This part fits 16 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2018BMW640i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2017BMW640i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2016BMW528i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2016BMW535i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2016BMW640i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2015BMW528i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2015BMW535i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2015BMW640i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2014BMW528i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2014BMW535i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2014BMW640i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2013BMW528i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2013BMW535i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2012BMW528i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2012BMW535i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
2011BMW535i xDriveAWDFront RightUpdated Design; AAR CV Axle Shaft
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — BM-81303160759304431607618680BM10541ER
