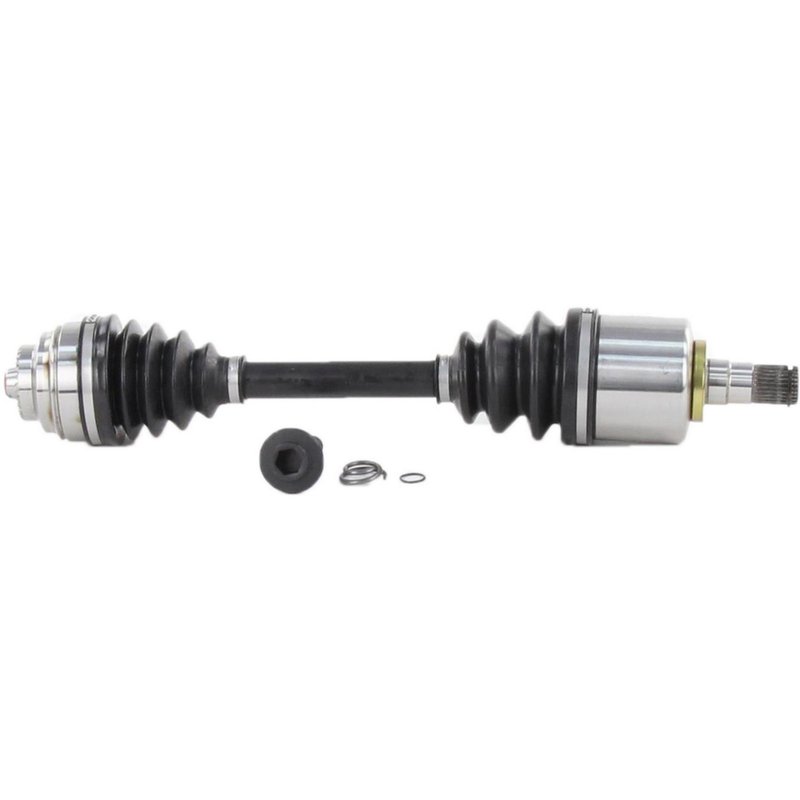

TrakMotive BM-8155 CV Axle Shaft - Front Left
| Brand | TrakMotive BM-8155 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | GNK with Face Spline / Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 21.26 |
| Overall Compressed Length (mm) | 540 |
| Product line | CV Axle Shaft |
| Fits | BMW and Mini · 27 vehicles |
New replacement shaft. Built as a new CV axle shaft for dependable driveline service.
Neoprene boot. Helps protect the joint with durable, flexible material.
Spline connections. 28 inboard and 31 outboard splines for secure engagement.
Cross-references TrakMotive BM-8155 for the same application. See all 1.
TrakMotive CV Axle Shaft for BMW and Mini
TrakMotive BM-8155 is a new front left CV axle shaft for select BMW X1, BMW X2, Mini Cooper Clubman, and Mini Cooper Countryman applications. It is built with a neoprene boot and spline-style shaft connections for direct driveline service on listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: BM-8155
- Front left position
- New construction
- 28 inboard splines and 31 outboard splines
- Male inboard joint type
- GNK with face spline / Audi-style spline bolt outboard joint type
- Neoprene boot material
- No ABS tone ring included
- No axle nut included
- Overall compressed length: 21.26 in. (540 mm)
Product Details
This TrakMotive CV axle shaft is engineered for driveline replacement on the front left side of select BMW and Mini models. The BM-8155 uses spline connections at both ends, a male inboard joint, and a GNK-style outboard joint with face spline / Audi-style spline bolt design. TrakMotive identifies this axle as an ABS axle that fits non-ABS applications unless otherwise noted, and the company states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing process.
Compatible With 2016-2018 BMW X1, front left; 2019 BMW X1, front left; 2018 BMW X2, front left; 2019 BMW X2, front left; 2016-2018 Mini Cooper Clubman, front left; 2016-2018 Mini Cooper Countryman, front left; and 2019 Mini Cooper Countryman, front left. This part number, BM-8155, is also the listed TrakMotive interchange for the same application.
Common Replacement Uses
- Restores power transfer to the front left wheel
- Addresses clicking or popping during turns caused by worn CV joints
- Replaces a damaged axle shaft with spline wear or boot failure
- Helps correct vibration from a worn driveline component
- Supports repair of grease loss from a compromised CV boot
Installation Notes and Tips
Verify spline counts, compressed length, and joint style before installation. Confirm whether the vehicle uses ABS or non-ABS equipment, since this axle is listed as fitting non-ABS applications unless otherwise noted. The axle nut is not included, so reuse or source the correct nut separately if required by the vehicle service procedure.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified manufacturing standards for BM-8155.
| Year | Make | Model | Submodel | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | BMW | X1 | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | BMW | X2 | xDrive28i | — | — | Front Left | 228HP; CV Axle Shaft |
| 2019 | Mini | Cooper Countryman | S | — | Automatic | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | BMW | X1 | — | — | — | Front Left | CV Axle Shaft |
| 2018 | BMW | X2 | — | FWD | — | Front Left | CV Axle Shaft |
| 2018 | BMW | X2 | — | AWD | — | Front Left | CV Axle Shaft |
| 2018 | Mini | Cooper Clubman | S | — | Automatic | Front Left | CV Axle Shaft |
| 2018 | Mini | Cooper Clubman | S ALL4 | — | Automatic | Front Left | CV Axle Shaft |
| 2018 | Mini | Cooper Clubman | John Cooper Works ALL4 | — | Automatic | Front Left | CV Axle Shaft |
| 2018 | Mini | Cooper Countryman | S | — | Automatic | Front Left | CV Axle Shaft |
| 2018 | Mini | Cooper Countryman | S E ALL4 | AWD | Automatic | Front Left | CV Axle Shaft |
| 2018 | Mini | Cooper Countryman | S ALL4 | AWD | Automatic | Front Left | CV Axle Shaft |
| 2018 | Mini | Cooper Countryman | John Cooper Works ALL4 | — | Automatic | Front Left | CV Axle Shaft |
| 2018 | Mini | Cooper Countryman | ALL4 | AWD | Automatic | Front Left | CV Axle Shaft |
| 2017 | BMW | X1 | — | — | — | Front Left | CV Axle Shaft |
| 2017 | Mini | Cooper Clubman | S | — | Automatic | Front Left | CV Axle Shaft |
| 2017 | Mini | Cooper Clubman | S ALL4 | — | Automatic | Front Left | CV Axle Shaft |
| 2017 | Mini | Cooper Clubman | John Cooper Works ALL4 | — | Automatic | Front Left | CV Axle Shaft |
| 2017 | Mini | Cooper Countryman | S | — | Automatic | Front Left | CV Axle Shaft |
| 2017 | Mini | Cooper Countryman | S Hot Chili ALL4 | AWD | Automatic | Front Left | CV Axle Shaft |
| 2017 | Mini | Cooper Countryman | S ALL4 | AWD | Automatic | Front Left | CV Axle Shaft |
| 2017 | Mini | Cooper Countryman | ALL4 | AWD | Automatic | Front Left | CV Axle Shaft |
| 2016 | BMW | X1 | — | — | — | Front Left | CV Axle Shaft |
| 2016 | Mini | Cooper Clubman | S | — | Automatic | Front Left | CV Axle Shaft |
| 2016 | Mini | Cooper Countryman | S | — | Automatic | Front Left | CV Axle Shaft |
| 2016 | Mini | Cooper Countryman | S ALL4 | — | Automatic | Front Left | CV Axle Shaft |
| 2016 | Mini | Cooper Countryman | John Cooper Works ALL4 | — | Automatic | Front Left | CV Axle Shaft |
