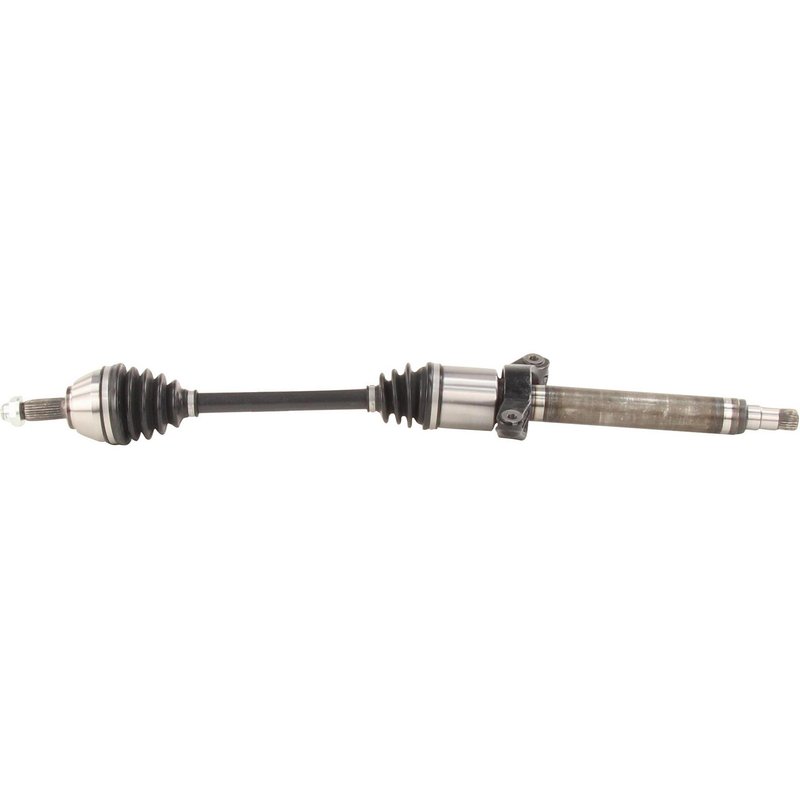

TrakMotive BM-8165 CV Axle Shaft - Front Right
| Brand | TrakMotive BM-8165 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 35.630000000000003 |
| Overall Compressed Length (mm) | 905 |
| Product line | AAR CV Axle Shaft |
| Fits | Mini · 10 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Includes axle nut. Ready with the correct nut for easier installation.
Cross-references TrakMotive BM-8165 and 31609806468 for the same application. See all 2.
TrakMotive BM-8165 CV Axle Shaft
The TrakMotive AAR CV Axle Shaft BM-8165 is a new front right driveline replacement for select Mini applications. It is built for 2011-2016 Mini Cooper Countryman and 2013-2016 Mini Cooper Paceman models with spline-style shaft connections and a conventional outboard joint.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: BM-8165
- New CV axle shaft for front right position
- 26 inboard splines and 26 outboard splines
- Male inboard joint with spline connection
- Conventional outboard joint with spline connection
- Neoprene boot material
- Axle nut included with M22 x 1.5 thread, hex head, stake locking type
- Overall compressed length: 35.63 in. (905 mm)
- No ABS tone ring included
Product Details
The TrakMotive AAR CV Axle Shaft line is positioned as a replacement driveline solution for vehicles that need a direct-fit axle assembly with application-specific dimensions and spline counts. BM-8165 is engineered for the front right side and includes the axle nut specified in the product data. This part cross-references OE number 31609806468 for the same application. For buyers searching for a Mini Cooper Countryman front right CV axle shaft or a Mini Cooper Paceman front right axle replacement, BM-8165 provides the listed fitment and hardware specifications in one new assembly.
What It Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a deteriorated boot
- Excessive play caused by worn spline or joint interfaces
- Front right axle replacement needs on Mini Cooper Countryman and Mini Cooper Paceman models
Installation Notes and Tips
Verify axle length, spline count, and axle nut thread size before installation. Confirm front right application and compare the original axle to BM-8165 for joint style and connection details. Because ABS tone ring is not included, check the vehicle’s original ABS configuration before service. Proper torque procedures and axle nut staking should be followed during installation.
Quality Assurance
TrakMotive lists this AAR CV Axle Shaft as a new part and identifies the brand line with ISO 9001:1007 and TS 16949:2009 certified manufacturing. The manufacturer also states a limited lifetime warranty.
Compatible Vehicles
- Fits 2011-2016 Mini Cooper Countryman, front right, updated design; AAR CV Axle Shaft
- Fits 2013-2016 Mini Cooper Paceman, front right, updated design; AAR CV Axle Shaft
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Mini | Cooper Countryman | Base | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Mini | Cooper Paceman | Base | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Mini | Cooper Countryman | Base | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Mini | Cooper Paceman | Base | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Mini | Cooper Countryman | Base | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Mini | Cooper Paceman | Base | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Mini | Cooper Countryman | Base | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Mini | Cooper Paceman | Base | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Mini | Cooper Countryman | Base | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Mini | Cooper Countryman | Base | Automatic | Front Right | Updated Design; AAR CV Axle Shaft |
